• Model NO.：SJYZ
• Driven Type：DC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Transport Package：Standard
• Specification：500-2000
• Trademark：PLK
• Origin：China
• HS Code：8428909090
• Production Capacity：500sets

Basic Info.

Model NO. SJYZ Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Standard Specification 500-2000 Trademark PLK Origin China HS Code 8428909090 Production Capacity 500sets

Product Description

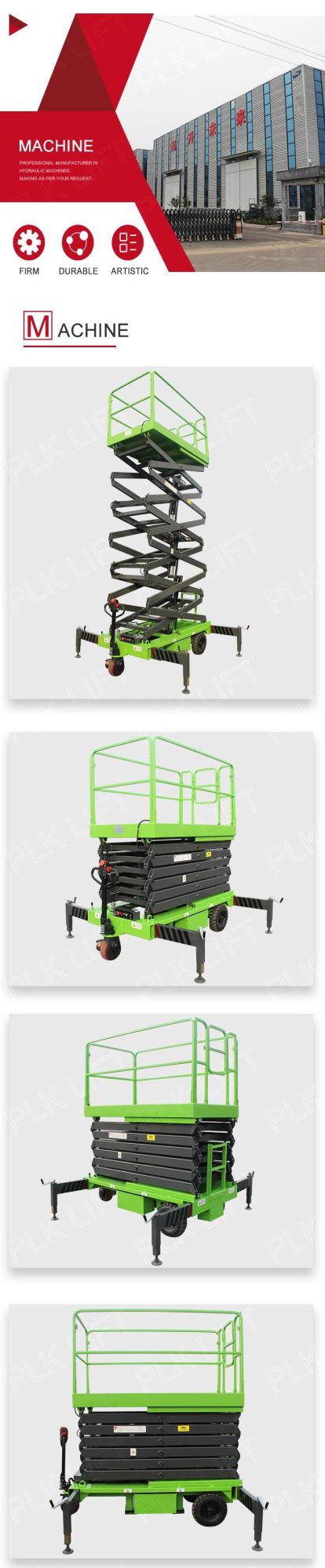

High End Configuration Full Electric Scissor Lifting Aerial Platform
Scissor lift platform is widely using in building construction, fixing street lamp and others aerial working project.
It is controlled by electricity ,moving also .There is two control panel, one is under the platform which install on the surface of the basis, another one is install on the platform.
People can move it by the moving handle ,go forward or back which is convenient for working.



Model No.	Loading Capacity (kg)	Lifting Height (m)	Platform Size (m)	Overall size (m)	Motor (kw)	Wheels(φ)	Net Weight (kg)
SJYZ4506-H	450	6	1.85*0.88	1.95*1.08*1.1	1.5	200 PU	800
SJYZ4507-H	450	7.5	1.8*1.0	1.95*1.2*1.54	1.5	400-8 Rubber	1000
SJYZ4509-H	450	9	1.8*1.0	1.95*1.2*1.68	1.5	400-8 Rubber	1200
SJYZ4511-H	450	11	2.1*1.15	2.25*1.35*1.7	2.2	500-8 Rubber	1580
SJYZ4512-H	450	12	2.45*1.35	2.5*1.55*1.88	3	500-8 Rubber	2450
SJYZ4514-H	450	14	2.45*1.35	2.5*1.55*2.0	3	500-8 Rubber	2650
SJYZ1006-H	1000	6	1.8*1.0	1.95*1.2*1.45	2.2	500-8 Rubber	1100
SJYZ1009-H	1000	9	1.8*1.25	1.95*1.45*1.75	3	500-8 Rubber	1510
SJYZ1012-H	1000	12	2.45*1.35	2.5*1.55*1.88	4	500-8 Rubber	2700
SJYZ0316-H	300	16	2.75*1.5	2.85*1.75*2.1	3	500-8 Rubber	3200
