Jh Series Mining Explosion Proof Winch Made in China Winch
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Type:Electric Winch
- Driven Type:AC
- Speed:Double Speed Winch
- Carrying Capacity:Weight Level
- Tonnage:25T
- Reel Number:2
Base Info
- Model NO.:JH-5, JH-8, JH-14
- Running Mode:Stationary
- Feature:Explosion-Proof
- Certification:GS, CE, Ma
- Standard:National Standards
- Model:Jh-5
- Diameter* Width (mm):276* 372
- Rope Capacity (M):80
- Construction:6* 19
- Name:Jh Series Mining Explosion Proof Winch
- Length:1450
- Width:512
- Height Range:515
- Weight:620
- Date:15 Days
- Transport Package:Wooden Cartons Packing
- Specification:SGS, ISO, CE
- Origin:Shandong Province, China
- HS Code:8531801001
- Production Capacity:60sets,Month
Description
Model ParameterJH-5JH-8JH-14Steel wire rope
average static
tension (KN)5080140Steel wire rope (m/s)
average speed
(m/s)0.170.120.115Drumdiameter* width (mm)276* 372280* 230400* 317rope capacity (m)80100130Steel wire
ropediameter15.51721.5construction6* 196* 196* 19nominal extension
strength (Mpa)155015501550Explosion proof
motorModelYBJ7.5-4YBK2-160M-6YBK2-200L1-6Power (KW)7.57.518.5Voltage (V)380/660380/660380/660Rotate speed (r/min)1450970970Overall size :

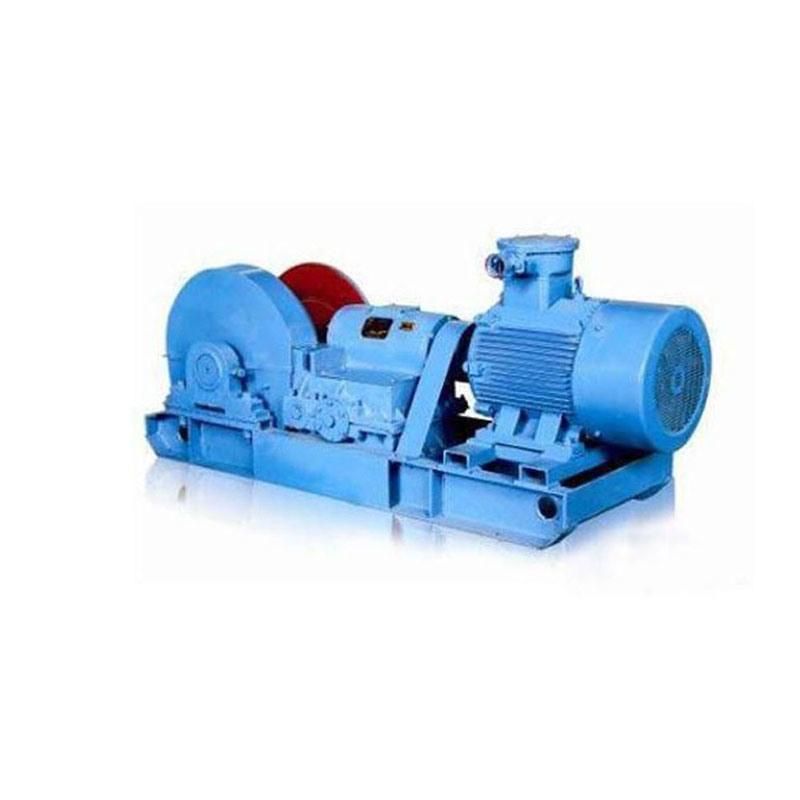

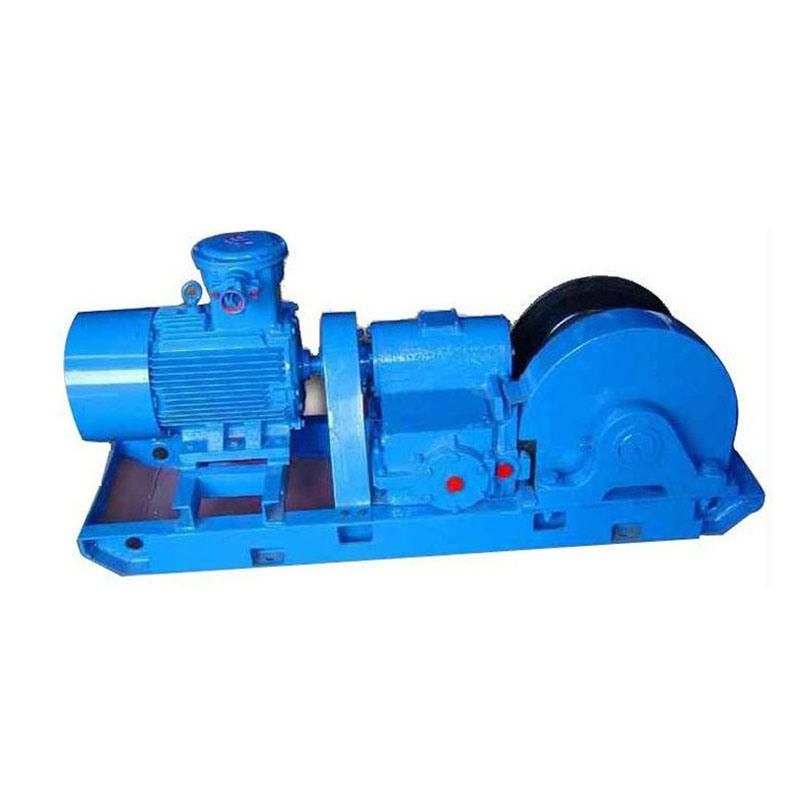

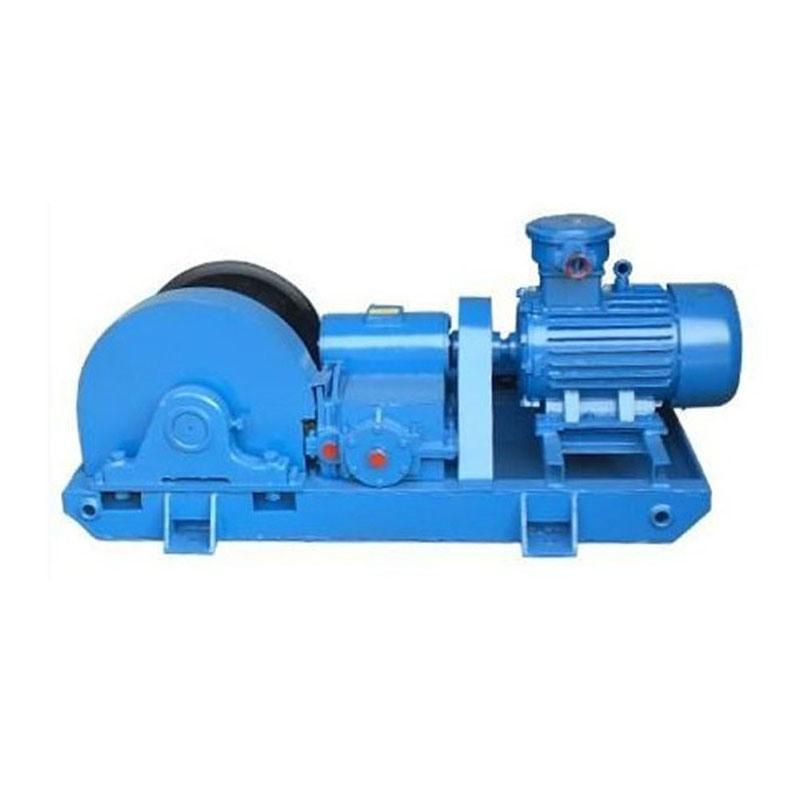

length* width* height1450* 512* 5151550* 530* 5701955* 680* 815Winch weight (including motor)6206501350Photos of JH Series Mining Explosion Proof Winch
