Oilfield 5 Ton Mining Pneumatic Power Hydraulic Air Winch Electric Winch
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Type：Electric Winch
- Driven Type：Screw
- Speed：Slow
- Carrying Capacity：Weight Level
- Tonnage：20T
- Reel Number：1
Base Info
- Model NO.：JQHSB-100*20
- Running Mode：Moving
- Feature：Antiseptic, Insulating, Explosion-Proof
- Standard：National Standards
- Model：Jqhsb-100*20
- Rated Working Pressure：0.6-0.8MPa
- Rated Traction Force：100kn
- Wire Rope Velocity：20m,Min
- Rope Content：200m
- Wire Rope Diameter：24mm
- Air Inlet Diameter：32mm
- Length：1638
- Width：960
- Height Range：930
- Transport Package：Carton Box, Plastic Bagsor as Your Payment
- Specification：CE, SGS
- Trademark：China Coal
- Origin：China
- HS Code：8532241000
- Production Capacity：1000 Sets Per Month
Description
ItemParameter Unit model JQHSB-100*20 -- Rated Working Pressure 0.6-0.8 Mpa Rated Traction Force 100 KN Wire Rope Velocity 20 M/MIN Pneumatic Piston Motor
Model TMH17 -- Rated Power 30 Kw Cylinder Number 5 Pcs Cylinder Diameter 160 mm
Air Consumption 400 L/S Drum
Number 1 PCS Diameter 300 mm Width 620 mm Wheel Rim Diameter 650 mm Rope Content 200 m Wire Rope Diameter 24 mm Air Inlet Diameter 32 mm Dimension
(Length* Width* Height) 1638*960*930 mm Weight(KGS) 1300 KG

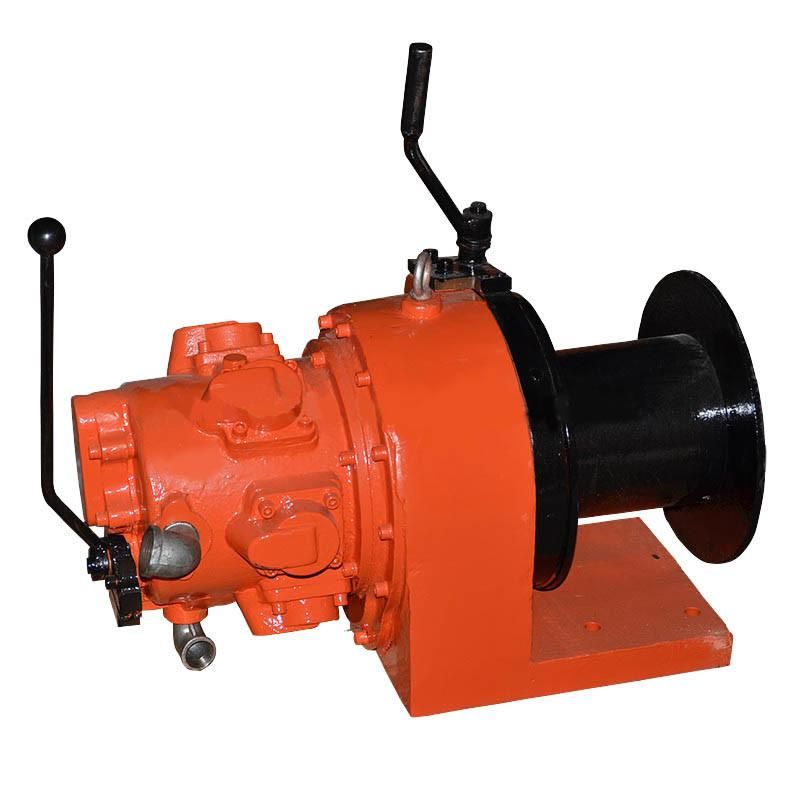

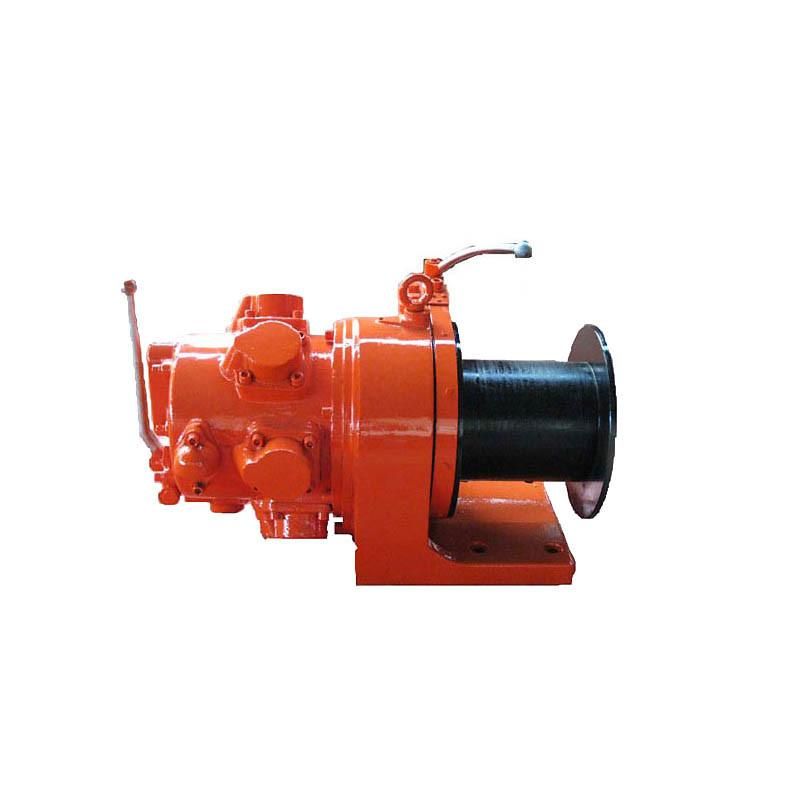

Photos of Oilfield 5 Ton Pneumatic Air Winch
Air Consumption
(Length* Width* Height)

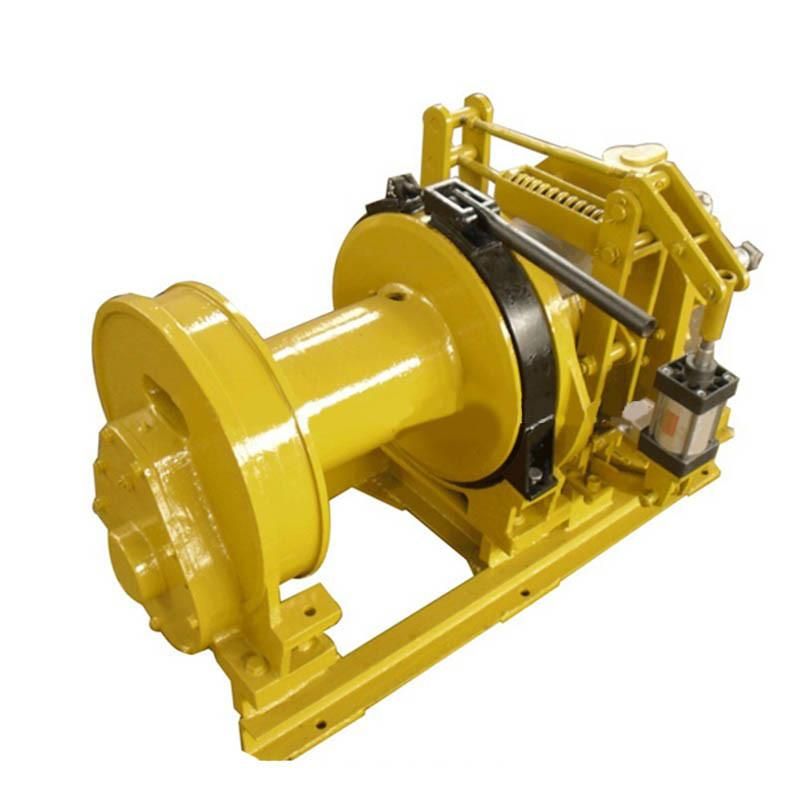

Photos of Oilfield 5 Ton Pneumatic Air Winch
