• Model NO.：HCH
• Certification：CE, ISO9001:2000, TUV SGS
• Condition：New
• Color：Black
• Hoist Type：220V 1ton Small Electric Chain Hoist Stage
• Vhoist Oltage：220V-440V
• Driven Type：AC
• Colour：Black
• Standard Lifting Height：1-50m
• Lifting Speed：8m,Min
• Chain：G80
• Feature：Insulating
• Running Mode：Moving and Stationery
• Hoist Hook：Forged
• Transport Package：Standard Wooden Case or Colour Paper Box
• Specification：CE, ISO
• Trademark：hugong, yiying
• Origin：Shanghai China
• HS Code：8425110000
• Production Capacity：5000 PCS,Year

Basic Info.

Model NO. HCH Certification CE, ISO9001:2000, TUV SGS Condition New Color Black Hoist Type 220V 1ton Small Electric Chain Hoist Stage Vhoist Oltage 220V-440V Driven Type AC Colour Black Standard Lifting Height 1-50m Lifting Speed 8m/Min Chain G80 Feature Insulating Running Mode Moving and Stationery Hoist Hook Forged Transport Package Standard Wooden Case or Colour Paper Box Specification CE, ISO Trademark hugong, yiying Origin Shanghai China HS Code 8425110000 Production Capacity 5000 PCS/Year

Product Description

                                     2 ton crane  electric chain hoist



Introduction:

Capacity: Stage 2 ton crane  electric chain hoist
Standard lifting height: 1-50m Electric hoist, can booking produce by order
The weight of TCH is light. TCH can hang upside down to use.
Capacity can reach 50 ton, the lifting height we booking produce by customer's demand.
The Voltage is 3 phase 220V, 380 V and 440 V etc.

TCH type stage electric chain hoist is a new type stage electric products development by our firm.
The advanced structure of TCH is superior to the structures of the similar products of other companies at home and abroad. The lifting speed is faster, running more smoothly, Compact body, Small volume, light weight, good appearance, low noise, more reliable, galvanized chain and it is not easy to rust...
TCH stage electric chain hoist can Installed in duplicate overhead beams, and also can installed in Electric or manual single beam, double-girder beam crane, cantilever crane and other crane etc.


1) 2m/min for single chain
2) symmetrical structure
3) rain-proof design
4) steel-made cover
5) Friction overload protection
6)36V indirect control
7) limit switch of screw tpye
8) 100% test before assembling and loading
9) Warranty: 1 Year
10)dual brake  --  electromagnetic brake and mechanical brake. Electromagnetic brake system, using non-asbestos brake linings to reduce maintenance times greatly.
11Overload Protector is available, insulation is F grade. Single use or multiple operating with one control cabinet


Stage electric chain hoist Technical parameter


Capacity(KG)	Model	Power(kw)	No. of load chain	Lift speed(m/min)	Weight of hoist without load chain(kg)	Weight of Load chain(Kg/m)
500	M6-W0.5A	0.42	1	4	30	1.1
500	M6-W0.5B	0.86	1	8	48	1.1
500	M6-W0.5C	0.83	1	4	48.5	1.1
1000	M6-W1A	1.5	1	8	50	1.1
1000	M6-W1B	0.86	2	2	52	2.2
2000	M6-W2A	1.5	2	4	54	2.2
2000	M6-W2B	1.5	1	16	50	1.1

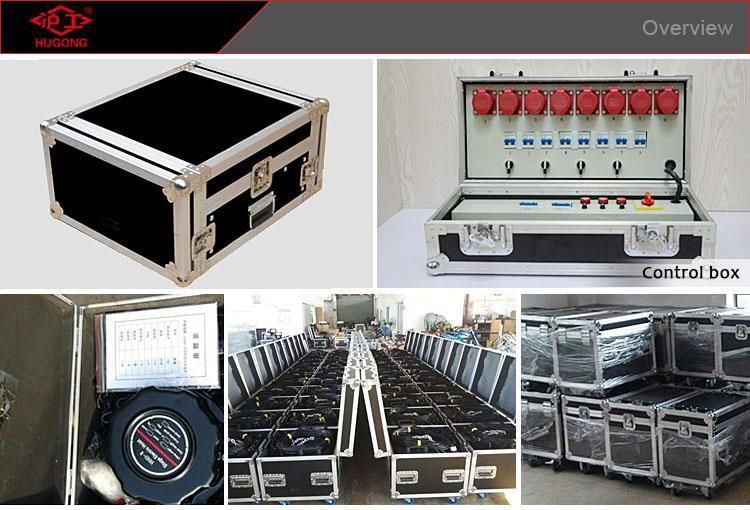

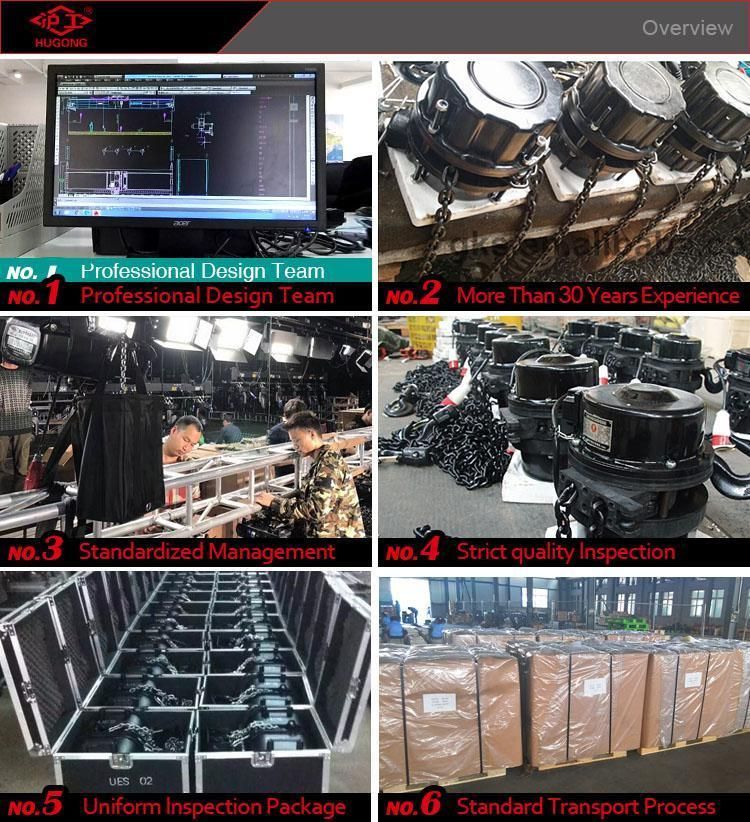

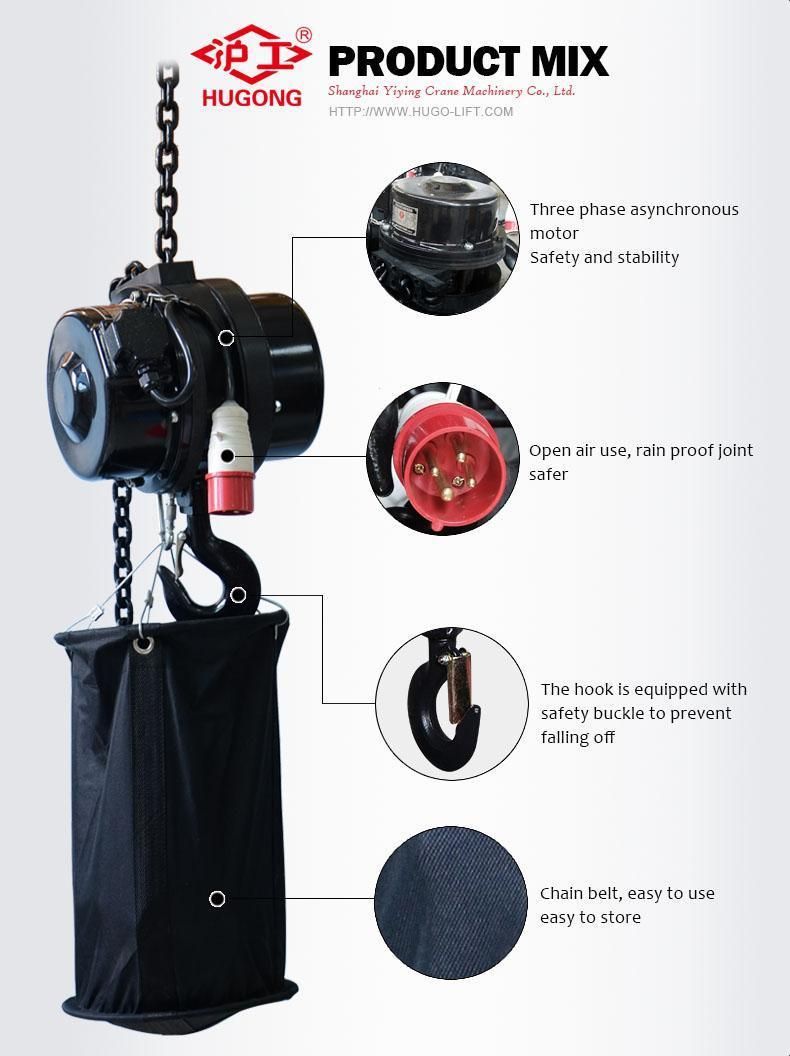

Pics View:







Ce Certificate:
