• Model NO.：TCH
• Hoist Voltage：220V-440V
• Hoist Chain：G80
• Payment Term：L,C T,T
• Lifting Speed：8m,Min
• Hoist Hook：Forged
• Delivery Time：10 Days
• Hoist Warranty：1 Year
• Loading Time：Shanghai Port or Tianjin Port
• Place of Original：China( Shanghai)
• Transport Package：Carton, Plywood, Pallet
• Specification：CE ISO
• Trademark：HUGO
• Origin：Shanghai, China
• HS Code：8425190000
• Production Capacity：10000,Month

Basic Info.

Model NO. TCH Hoist Voltage 220V-440V Hoist Chain G80 Payment Term L/C T/T Lifting Speed 8m/Min Hoist Hook Forged Delivery Time 10 Days Hoist Warranty 1 Year Loading Time Shanghai Port or Tianjin Port Place of Original China( Shanghai) Transport Package Carton, Plywood, Pallet Specification CE ISO Trademark HUGO Origin Shanghai, China HS Code 8425190000 Production Capacity 10000/Month

Product Description

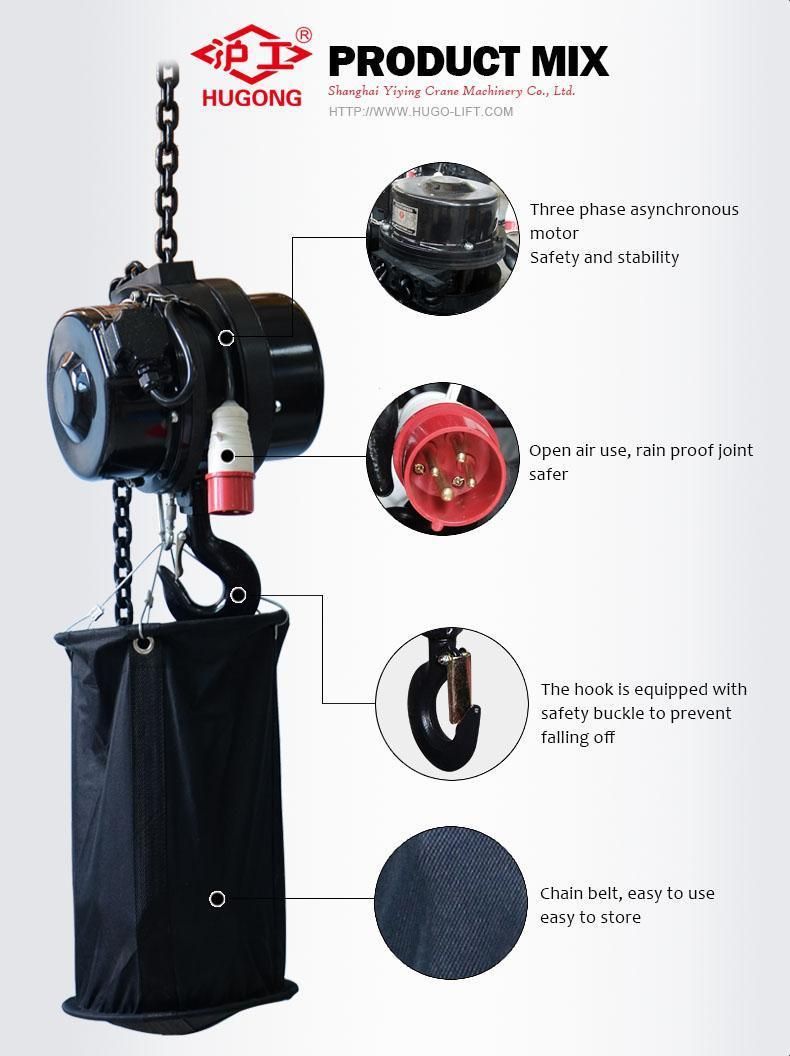

The Introduction of Stage Hoist Electric Hoist
1) 2m/min for single chain
2) symmetrical structure
3) rain-proof design
4) steel-made cover
5) Friction overload protection
6)36V indirect control
7) limit switch of screw tpye
8) 100% test before assembling and loading
9) Warranty: 1 Year



Stage electric chain hoist Technical parameter



Capacity(KG)	Model	Power(kw)	No. of load chain	Lift speed(m/min)	Weight of hoist  without load chain(kg)	Weight of  Load chain(Kg/m)
500	M6-W0.5A	0.42	1	4	30	1.1
500	M6-W0.5B	0.86	1	8	48	1.1
500	M6-W0.5C	0.83	1	4	48.5	1.1
1000	M6-W1A	1.5	1	8	50	1.1
1000	M6-W1B	0.86	2	2	52	2.2
2000	M6-W2A	1.5	2	4	54	2.2
2000	M6-W2B	1.5	1	16	50	1.1

Features:

1) Forging steel structure small electric hoist, plastic coating cover

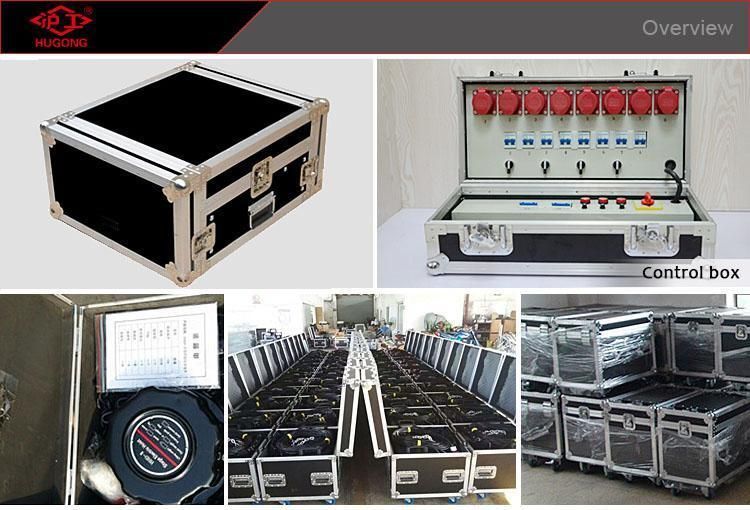

2) Overload Protector is available, insulation is F grade. Single use or multiple operating with one control cabinet.
3The anti  phase relay device protects machine from damage when power connection is in wrong way.
4)  Dual brake system -electromagnetic brake and mechanical brake. Electromagnetic brake system, using non-asbestos brake linings to reduce maintenance times greatly.   5)  24/36V Low Voltage Control: The low voltage control can protect operators from electrical shocks.
6) The surface of chain is dealted with case carburization . The inside material is softened.It is resistant to corrosion, rain, water, sea water, chemical and other bad conditions.
7) Friction overload protection
8) 36V indirect control
9) limit switch of screw tpye
10) 100% test before assembling and loading
11) you can hang upside down can also be positive.
12) Simply use the hooked end of the chain hung beam, while the lower hoist objects together along with the chain was hanging up crawling to a predetermined height, we have power after sale service system,you can believe us.
