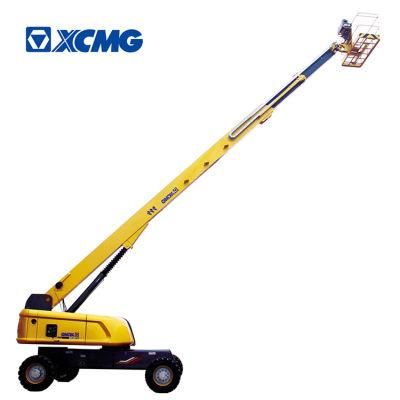

• Model NO.：GTBZ42S

Item

Unit

Parameter

a Overall Length

mm

12100

b Overall Width

mm

2490

c Overall Height

mm

3050

d Wheel Base

mm

3000

Maximum Working Height

m

27.9

Maximum Platform Height

m

26.2

Maximum Working Range

m

23.2

Maximum Load Capacity

kg

340

Boom Luffing Range

 °

-5~+75

Crank Arm Luffing Range

 °

-65~+70

Rotation Angle of Rotating Platform

°

360

Maximum Tail Wagging

mm

1400

Platform Size

mm

2.4×0.9/1.8×0.8

Rotation Angle of Platform

 °

180

Total Weight

kg

16600

Maximum Travel Speed

km/h

6.1

Minimum Turning Radius

m

6.7

Minimum Ground Clearance

mm

320

Maximum Grade Ability

%

45

Tire Specification

-

385/65-22.5

Engine Model

-

Foton CumminsQSF2.8-71HP

Rated Power of Engine

kW/(r/min)

53/(2200)
