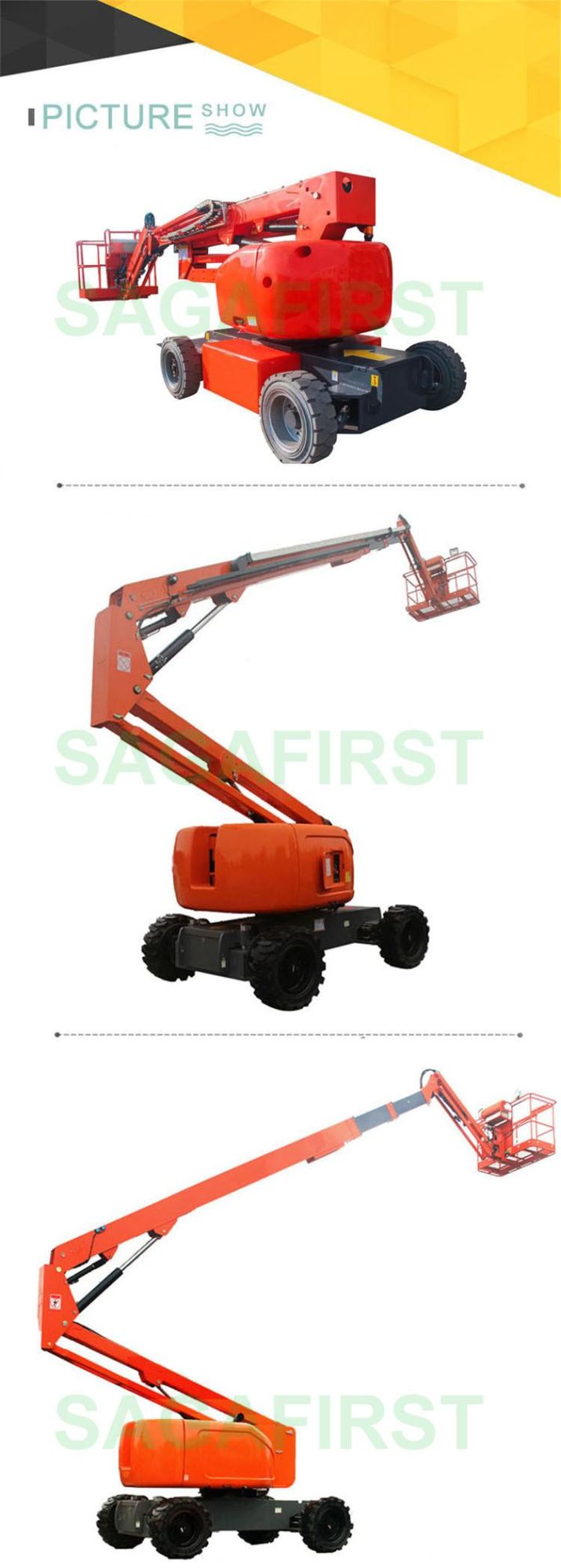

Mini Articulating Construction Boom Lift Aerial Work Platform
Qingdao Sinofirst Machinery Co., Ltd.- After-sales Service：1 Year Free Spare Parts Replacement
- Warranty：1 Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Articulated Lift
- Carrying Capacity：Weight Level
- Moves：Self-propelled
Base Info
- Model NO.：SPABL
- Driven Type：Hydraulic
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Power：2.0kw
- Rated Loading Capacity：200kg
- Min. Lifting Height：1900mm
- Max. Lifting Height：16000mm
- Table Size：1100*800mm
- Overall Dimensions：7000*1730*2200mm
- Weight：2600kg
- Turning Degree：360
- Emergency Decline System：Yes
- Transport Package：High Quality Paper Boxes with Stretch Film.
- Specification：16m
- Trademark：SAGA FIRST
- Origin：Shandong, China (Mainland)
- HS Code：8428909090
- Production Capacity：1000 Set,Month
Description
DEUTZ D2011L03i Y(36.3kw/2600rpm)/Yamar(35.5kw/2200rpm)
Safety Precautions:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Check Valve
5. Adjustment Valve
6. Gradienter
Features and Advantange:1. Complete Safety Devices: Standard four-link weighing devices; measures such as overload protection, automated detection device for detecting platform amplitude and height, automatic control of the movement speed and traveling speed of the boom, and high-precision weighing devices, to ensure the safety and stability of operation in all directions.
2. Control box:Full proportional control handle and CAN bus as well as PLC control system with high positioning accuracy are easy to be controlled and can be operated by the users at will.
3.Traveling System:The closed running system consisting of electro-proportional variable pump, hydraulic control variable motor and flow distribution valve can gain relatively high movement speed and relatively low and stable running speed. The system works efficiently and generates less heat.
4. Hydraulic System: Closed running system, speed easily to be adjusted, wide speed range; the boom's hydraulic system adopts double valve core circuit, which enhances the safety. The hydraulic components adopt European and American pure brands.
5. 360° wide working range
Articulating Trailing Cherry Picker Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work
Customer Visit Us & Our Factory Display
Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.Dealers and Wholesalers are especially welcomed and we will give special discounts.
Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance video and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.send the parts free of charge
| Model Type No. | SPABL-12JIB | SPABL-14 | SPABL-16JIB | SPABL-18 | SPABL-20JIB | SPABL-24JIB | SPABL-25JIB | SPABL-30JIB | SPABL-38JIB | SPABL-40JIB |
| Working Height Maximum | 14m | 16.2 m | 18 m | 20m | 22 m | 26.2 m | 27.1 m | 32 m | 40.1 m | 42.3m |
| Platform Height Maximum | 12m | 14.2 m | 16 m | 18 m | 20 m | 24.2 m | 25.1 m | 30 m | 38.1m | 40.3m |
| Horizontal Outreach Maximum | 8m | 8 m | 9.8 m | 10.8 m | 12.6 m | 15.8 m | 16 m | 20.2 m | 21.6 m | 21.6m |
| Lifting capacity | 200kg | 230kg | 230 kg | 230 kg | 230 kg | 230 kg | 230 kg | 480 kg | 480 kg | 480kg |
| Up & Over Height maximum | 5m | 7.75 m | 7.75 m | 9.2 m | 9.2 m | 9.8 m | 6.8 m | 230kg | 230kg | 230kg |
| Length( stowed) | 5.3m | 6.2 m | 7.7 m | 8.25 m | 9.07 m | 9.92 m | 9.75 m | 12.2 m | 19.5 m | 23.6m |
| Width (stowed) | 2m | 2.29 m | 2.28 m | 2.35 m | 2.38 m | 2.48 m | 2.58 m | 12.52 m | 11.37 m | 12.15m |
| Height(stowed) | 2.26m | 2.38 m | 2.38 m | 2.38 m | 2.49 m | 2.82 m | 2.8 m | 2.5 m | 2.5 m | 2.49m |
| Wheel base | 2.4m | 2.2 m | 2.45m | 2.4 m | 2.45m | 3 m | 3 m | 3.43 m | 4.17 m | 3.9m |
| Ground clearance | 200mm | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m | 0.43 m |
| Platform measurement * | 1.1*0.67m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 1.83*0.76 m | 2.44×0.91m | 2.44×0.91m | 2.44*0.91*1.13m |
| Tuning radius (inside) | 3.0m | 3 m | 2.61 m | 3 m | 2.66 m | 2.6 m | 2.6 m | 2.74 m | 3.13m | 3.13m |
| Tuning radius (outside) | 5.2m | 5.2 m | 5.61 m | 5.2 m | 5.66 m | 5.85m | 5.85 m | 5.85 m | 6.5m | 6.5m |
| Speed(stowed) | 3.2km/h | 4.2 km/h | 4.2km/h | 4.2km/h | 4.2km/h | 4.2 km/h | 4.2 km/h | 4.14 m | 4.14 m | 4.14m |
| Travel speed(raised or extended) | 0.8km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h | 1.1km/h |
| Turn table swing | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous | 360° Continuous |
| Platform Leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling | Automatic leveling |
| Swing Speed | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm | 0~0.8rpm |
| Grade ability | 30 % | 45 % | 45% | 45% | 45% | 45% | 45% | 45% | 45% | 45% |
| Solid tire | 33*12-20 | 33×12-20 | 33×12-20 | 33×12-20 | 33×12-20 | 36×14-20 | 385/65-24 | 385/65-22.5 | 385/65-22.5 | 445/65-22.5 |
| Motor Pump | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins | Cummins |
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Check Valve
5. Adjustment Valve
6. Gradienter
Features and Advantange:1. Complete Safety Devices: Standard four-link weighing devices; measures such as overload protection, automated detection device for detecting platform amplitude and height, automatic control of the movement speed and traveling speed of the boom, and high-precision weighing devices, to ensure the safety and stability of operation in all directions.
2. Control box:Full proportional control handle and CAN bus as well as PLC control system with high positioning accuracy are easy to be controlled and can be operated by the users at will.
3.Traveling System:The closed running system consisting of electro-proportional variable pump, hydraulic control variable motor and flow distribution valve can gain relatively high movement speed and relatively low and stable running speed. The system works efficiently and generates less heat.
4. Hydraulic System: Closed running system, speed easily to be adjusted, wide speed range; the boom's hydraulic system adopts double valve core circuit, which enhances the safety. The hydraulic components adopt European and American pure brands.
5. 360° wide working range
Articulating Trailing Cherry Picker is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work.
Articulating Trailing Cherry Picker Lift is widely used in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial work
Customer Visit Us & Our Factory Display
Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.Dealers and Wholesalers are especially welcomed and we will give special discounts.
Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance video and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.send the parts free of charge
| Frequent Asked Questions | Answers |
| Are you a factory or trading company? | We're factory with over 12years exporting experience. |
| What's the MOQ? | 1UNIT,the more,the better. |
| What's the payment terms? | <USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD10,000: TT or Irrevocable L/C At Sight. |
| Do you offer OEM&ODM service? | Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc. |
| What's the delivery time? | 15~20days after down payment |
| What's the quality warranty? | 24 months.Offer free parts for replacement. |
| How can I get the after-sales service? | We offer videos,pictures and technical guidance immediately. |
| What's your QA&QC policy? | 3times 100% inspection before shipping. |
| Can you tell me your clients in my country? | Of course. But only after the permittance of customers. |
