• Model NO.：ZA14JE
• Driven Type：AC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Gradeability：45%
• Platform Capacity：250kg
• Transport Package：Roro,Nude,Bulk,Container
• Specification：6.57*2.3*2.27 m
• Trademark：ZOOMLION
• Origin：China
• HS Code：8428909090
• Production Capacity：100units,Month

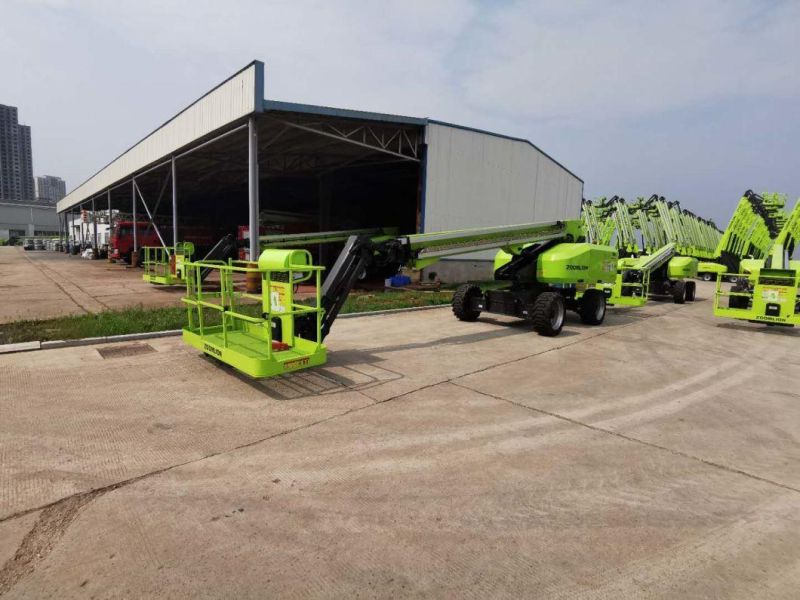

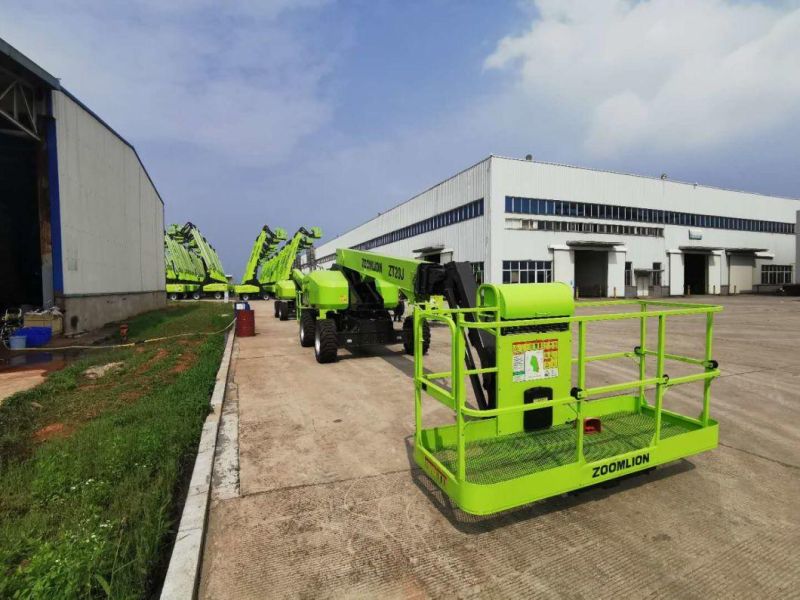

Electric Articulating Boom LiftsComply with CE/ANSI/GB StandardModel ZA20JE GBZA20JE CESizeWork Height21.45m21.50mPlatform Height19.45m19.50mHorizontal Outreach11.45m11.45mUp and Over Height8.25m8.30mA - Stowed Length8.72m8.72mB - Stowed Width2.49m2.49mC - Stowed Height2.52m2.56mD - Platform Length1.83m1.83mE - Platform Width0.76m0.76mF - Wheelbase2.52m2.52mG - Ground Clearance330mm375mmPerformancePlatform Capacity250kg250kgDrive Speed6.1km/h6.1km/hGradeability45%45%Axles Oscillation200mm200mmTurning Radius (Inside)2.78m2.78mTurning Radius (Outside)5.49m5.49mSwing400° non-continuous360° continuousPlatform Rotation±90°±90°H-Tail Swing0.6m0.6mMax. Working Slope3/5°3/5°Max. Wind Speed12.5m/s12.5m/sPowerBattery8×6V/420Ah8×6V/420AhCharger48V/35A48V/60ADrive MotorAC 32V/3.3kwAC 32V/3.3kwLift MotorAC 32V/10kwAC 32V/10kwAuxiliary PowerManual Pump12V DCHydraulic Tank Capacity75L75LTireType33x12 D610 Foam-filled Tires355/55 D625 Foam-filled TiresWeightGross9200kg9200kgHighlightsZA20JE GBZA20JE CEProvide a work height of 21.45 m and lift capacity of 250 kgProvide a work height of 21.50 m and lift capacity of 250 kgFast lift system directly lowers the boom from the highest position to the ground without folding the boomFast lift system directly lowers the boom from the highest position to the ground without folding the boomAccurate and efficient traveling AC drive system and on-board motion AC drive system provide strong power, stable control and maintenance-free motor.Accurate and efficient traveling AC drive system and on-board motion AC drive system provide strong power,   stable control and maintenance-free motor.Independent auxiliary power system for more secure applicationsIndependent auxiliary power system for more secure applicationsFeaturesStandard FeaturesAccessories & OptionsProportional controlAC power to platformAll motion alarmAirline to platformFlashing amber beacon2.44×0.91m work platformSelf-closing entry gateNon-marking tireEmergency descent systemPlatform work lightsEmergency stop buttonAuto-leveling systemOn-board diagnostic systemOver tilt protection systemOscillating axleLoad sensing system4.3' LED displayHotline: +86 17873925674
