• Model NO.：SP-D
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：CE, RoHS, ISO 9001, SGS
• Platform Height：10m to 16m
• Load Capacity：680kg to 1150kg
• Surface Treatment：Shot Blasting
• Lifting Mode：Electric
• Power：Diesel Power
• Diesel Engine：Japan Kubota
• Hydraulic Pump：Italy Salami
• Cartridge Valve：U.S.a Hydra Force
• Reducer：U.S.a Omni
• Driving Motor：China Li Ke
• Throttle Actuator：U.S.a Sumjack
• Inclination Sensor：Italy Bpe
• Control Handle&Controller：U.S.a Delta Tech
• Meter：China Kang Bo
• Controller：China Kais
• Transport Package：High Quality Seaworthy Package
• Specification：CE, ISO, SGS
• Trademark：SAGA FIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. SP-D Feature Explosion-Proof, Insulating, Spillover Valve Certification CE, RoHS, ISO 9001, SGS Platform Height 10m to 16m Load Capacity 680kg to 1150kg Surface Treatment Shot Blasting Lifting Mode Electric Power Diesel Power Diesel Engine Japan Kubota Hydraulic Pump Italy Salami Cartridge Valve U.S.a Hydra Force Reducer U.S.a Omni Driving Motor China Li Ke Throttle Actuator U.S.a Sumjack Inclination Sensor Italy Bpe Control Handle&Controller U.S.a Delta Tech Meter China Kang Bo Controller China Kais Transport Package High Quality Seaworthy Package Specification CE, ISO, SGS Trademark SAGA FIRST Origin China HS Code 8428909090 Production Capacity 1000 Set/Year

Product Description

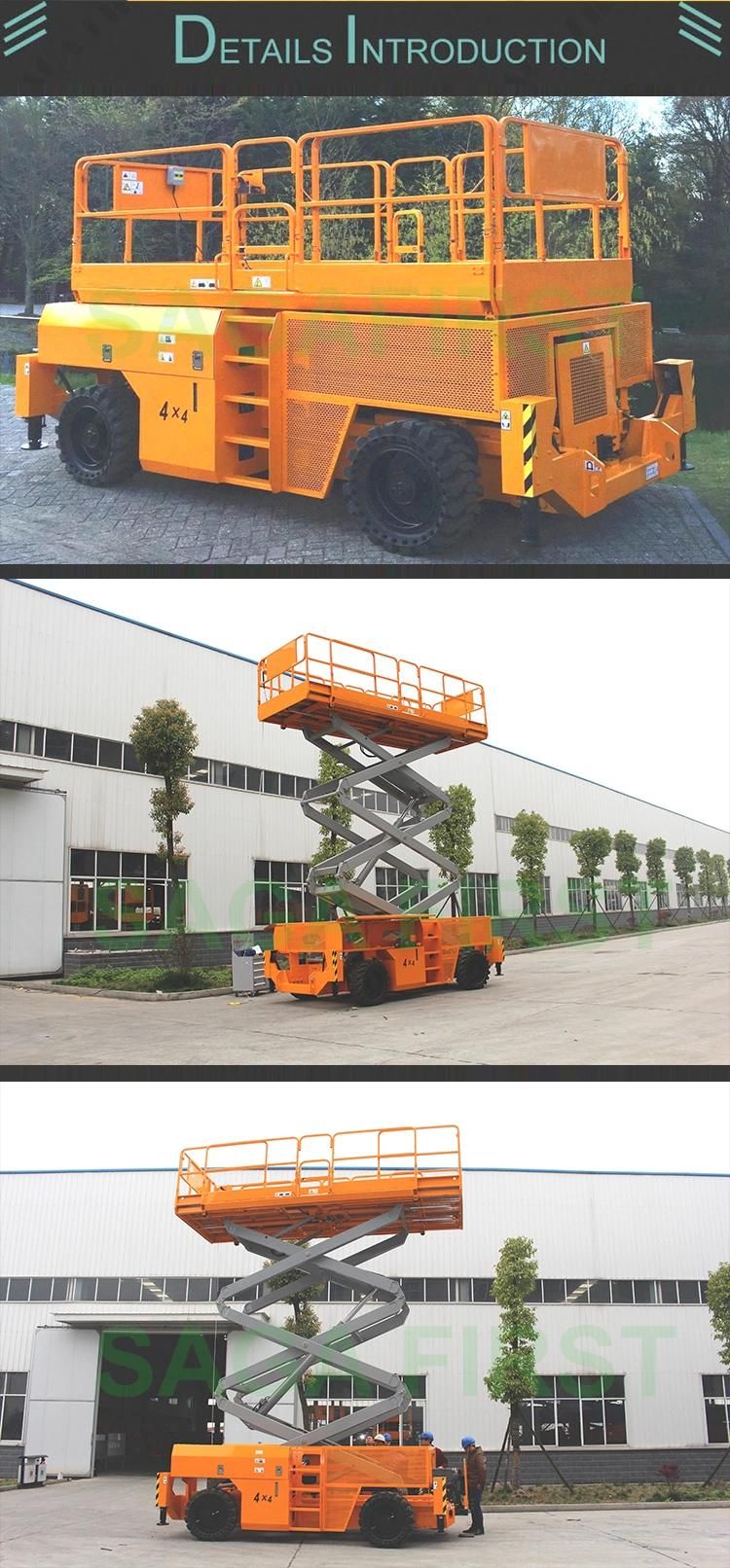

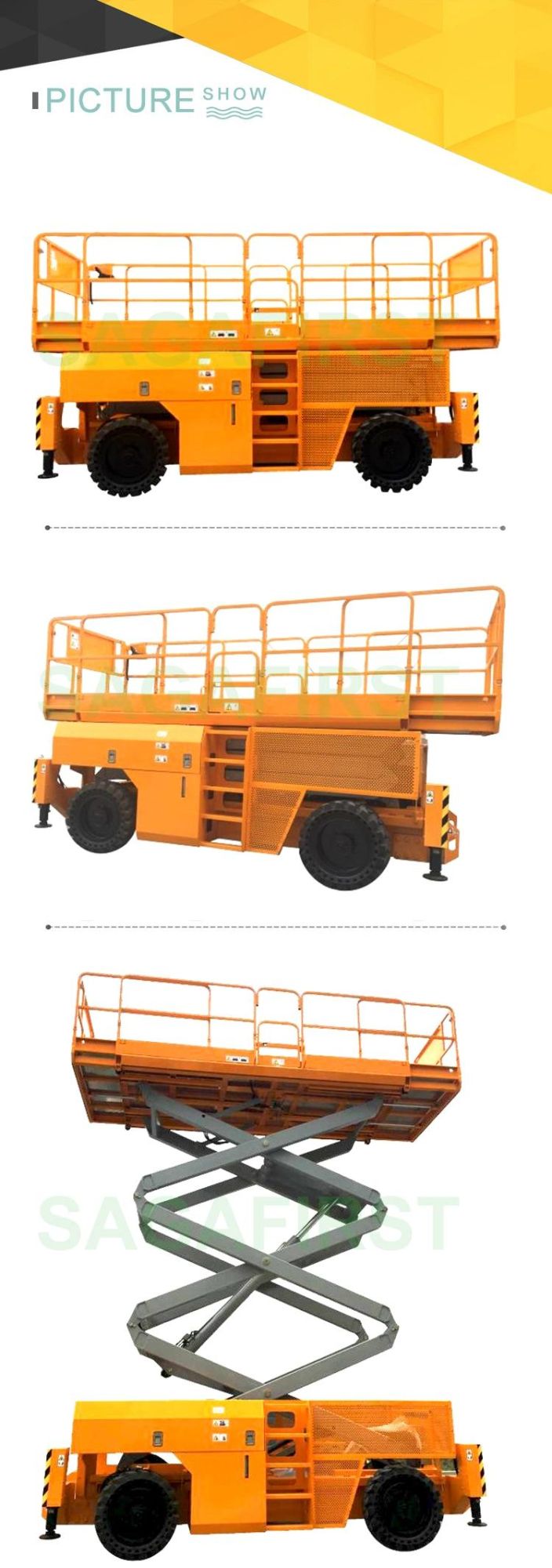

10m 1000kg capacity rough terrain elevated work platform for outdoor
SAGA FIRST Self propell Scissor lift is diesel power motors:with maximum working height from 10m to 16m. Our main components are all imported from USA and Europe. The self propell scissor lifts using diesel power can be worked quietly suitable for outdoor use. The emergency descending system which can let the machine work normally when the power is cut off. The diesel powered scissor lifts have the weighting device with patented technology which can accomplish the exact weighing for the platform load, safety and reliability, anti mal-operation function to avoid the engine restart in starting status and suitable for outdoor use.

Compact structure can be modularized into a small space;With a new electric propulsion system,

Safety precautions:
1. Explosion-proof valves
2. Equipped with anti-skid plate
3. Overload protective system.
4. Single control solenoid valves :prevent dropping if power failure.
5. Emergency decline valve
6.Four supporting legs.

Model Type No.	SP10D	SP13D	SP16D
Working Height Maximum	12 m	15 m	18 m
Platform Height Maximum	10 m	13 m	16 m
Lift capacity	1150 kg	680kg	680 kg
Lift capacity (extension deck)	230 kg	230kg	230 kg
Length	4.2/4.81m	4.2m /4.81m	4.2/4.81 m
Width	2.28 m	2.28m	2.28 m
Height(stowed)	2.81 m	3.03m	3.25 m
Wheel baseF	2.84m	2.84m	2.84 m
Ground clearance-center	0.23 m	0.23m	0.23 m
Platform measurement	3.95*1.83 m	3.95×1.83 m	3.95*1.83 m
Extension deck measurement	1.22m+1.52 m	1.22m + 1.52 m	1.22m+1.52 m
Turning radius inside /outside	2.78m /4.95 m	2.78m / 4.95 m	2.78m / 4.95 m
Travel speed(stowed)	6.3km/h	6.3km/h	6.3km/h
Travel speed(raised )	1.1km/h	1.1km/h	1.1 km/h
Grade ability	50%	50%	0.45
Sold tire	33×12-20	33×12-20	33×12-20
weight	6850kg	7350 kg	8850kg
Fuel tank volume	115L	115L	115L
Hydraulic tank volume	170L	170L	170L
Drive mode	4*4*2	4*4*2	4*4*2
Engine	Yanmar	Yanmar	Yanmar

Features &Advantages:
Strong power: The diesel scissor lift has powerful power, and the four- wheel drive has strong climbing capacity. The scissors lift can shift high and low speeds.
Draggable engine tray: The engine is installed on the tray that can be dragged out, which facilitates maintenance and repair.
Active&Oscillation Axle: Active oscillation axle can perceive the terrain, and can guarantee that the machine can land on four wheel even on uneven road without reducing the driving force.
Large working space: The maximum size of platform extended by cylinder forward double direction can reach 6.65*1.83m.
Outrigger: The hydraulic outriggers can be used to level vehicles in case of operation on uneven ground.


Customer Visit Us & Our Factory Display
Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.Dealers and Wholesalers are especially welcomed and we will give special discounts.

Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance video and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.

Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.send the parts free of charge
