• Model NO.：HSZ
• Certification：CE, ISO9001:2000, GS
• Condition：New
• Color：Orange
• Capacity：1 T 2 T 3 T 5 T 10 T 15 T 20 T 30 T
• Hmin：3 M 6m 9 M 12m
• Chain：G80
• Colour：Yellow
• Transport Package：Carton
• Specification：CE ISO9001 GS
• Trademark：HAIYAN
• Origin：China
• HS Code：8425190000
• Production Capacity：1000PCS,Week

HSZ Chain Block SpecificationsModelHS0.5HS1HS1.5HS2HS3HS5HS10Capacity(T)0.511.523510Standard lift(M)2.52.52.52.5333Running test load(T)0.751.52.2534.56.2512.5Headroom(drawn close up)H(MM)240270347380470600700Load chainColumns1112224Dia(mm)668681010Effort required to lift max load(N)221304343314343381392Extra weight per meter of extra lift(KG)1.71.72.32.53.75.39

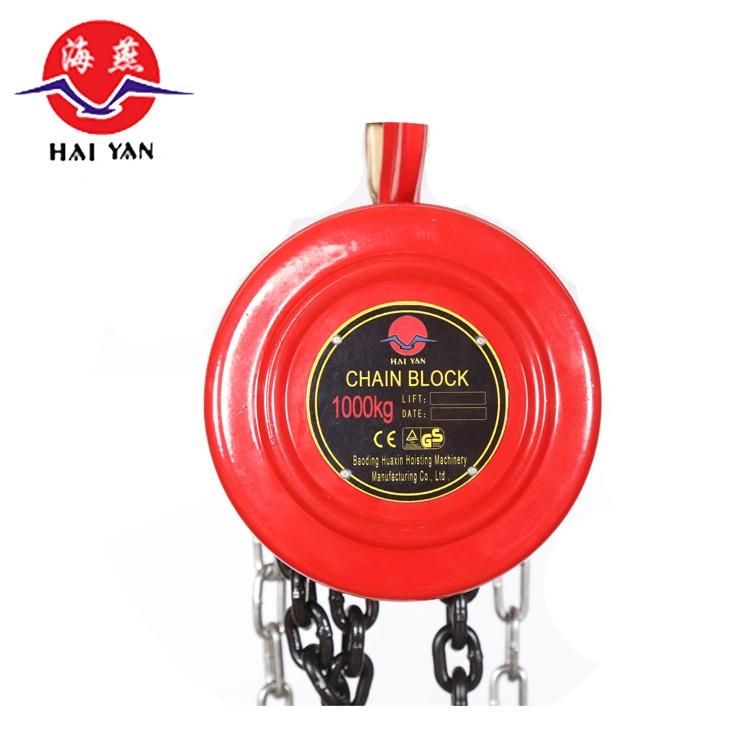

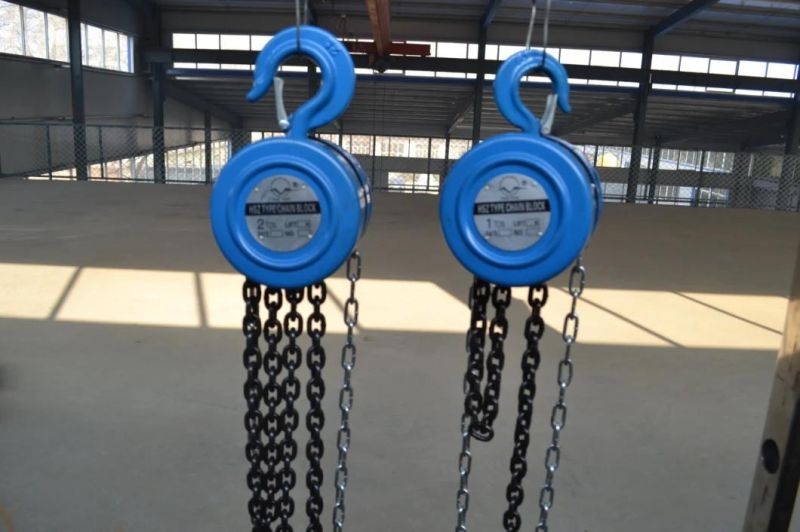

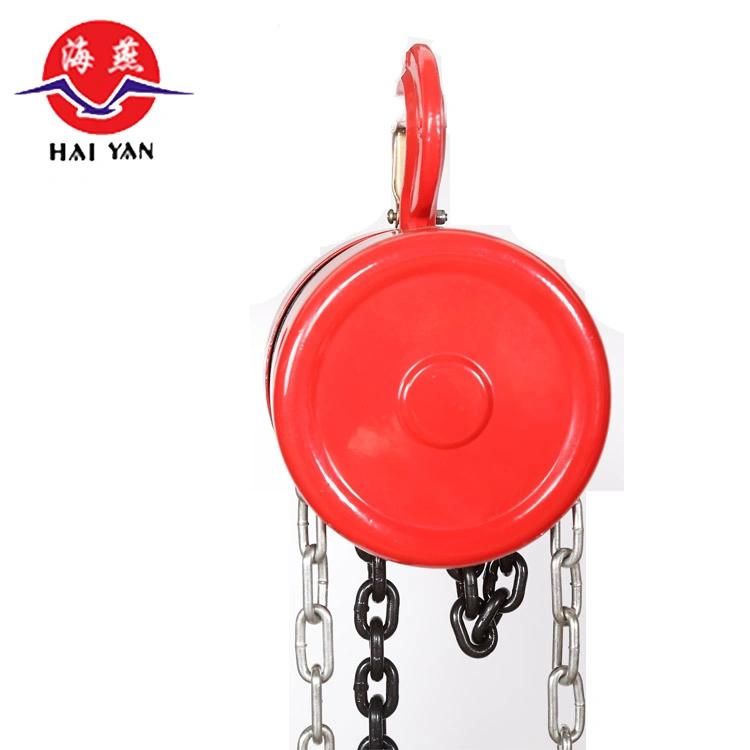

HSZ chain block pics as belows:

Features of the HSZ chain block 2Ton
1.compact size ,light weight and durable life.

2.High efficiency and small pulling effort at full load.

3.Reliable,safe in operation and low maintenance.

4.Very low headroom allows optimal use of available space.

 Details:

Gear: they innovated symmetrical arrayed high speed synchronous gear and made from international standard steel. more strong and steadier.

Chain: adopt high strong g80 chain and high precision welding technology,

meet ISO international standard. Fit for heavy and overload working conditions, take your hands a better feeling,

Hook:  made of high class forged alloy steel, it has high strength and high security, by using new design, weight will never escape disconnect

Plastic Plating: adopt advanced plastic plating technology inside and outside, it looks like a new one after years of operation

Housing: made of high-classed steel, more firmly and dexterous.

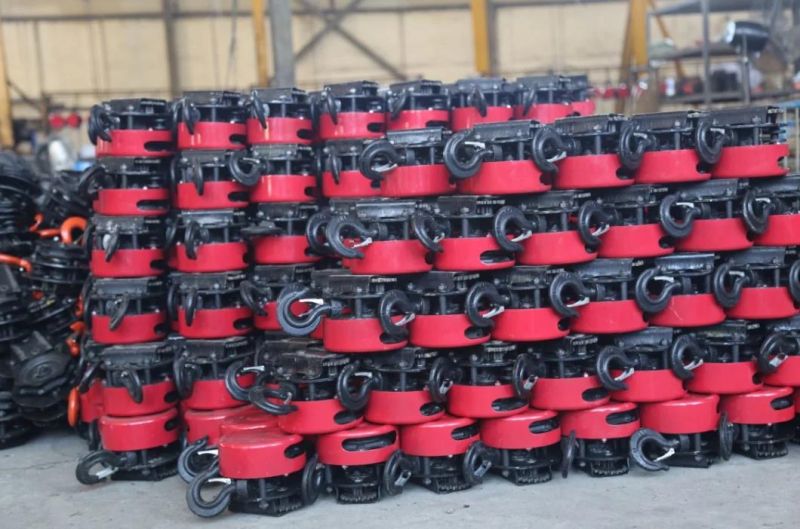

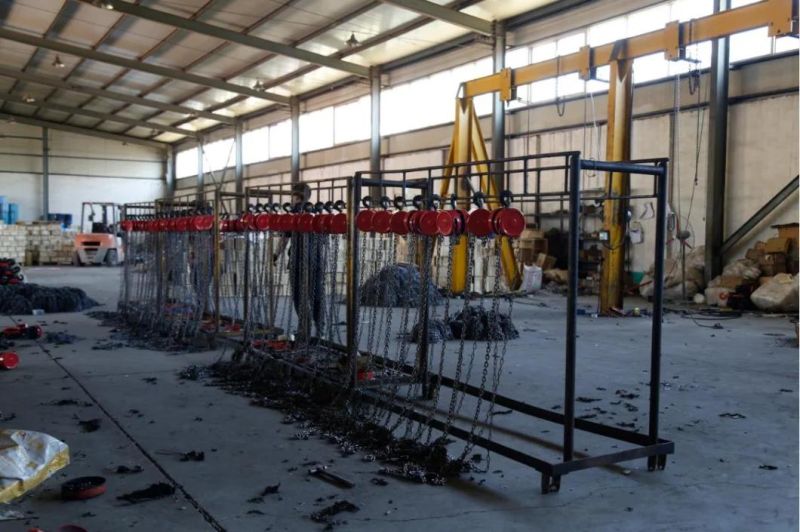

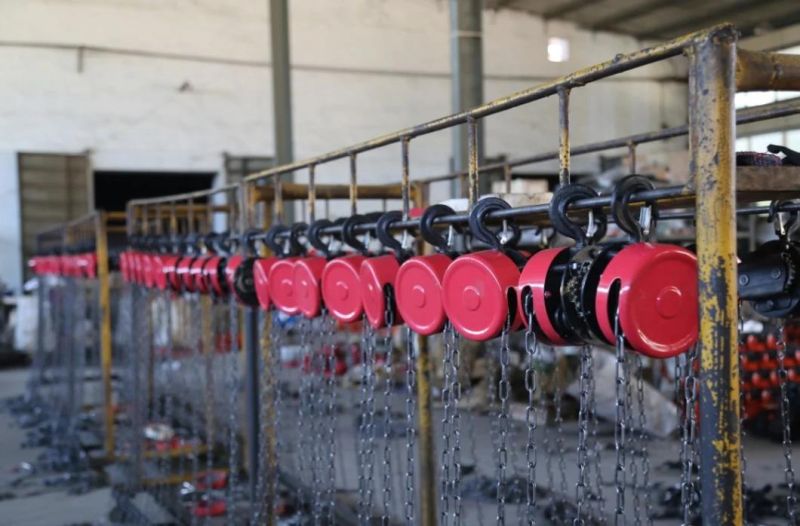

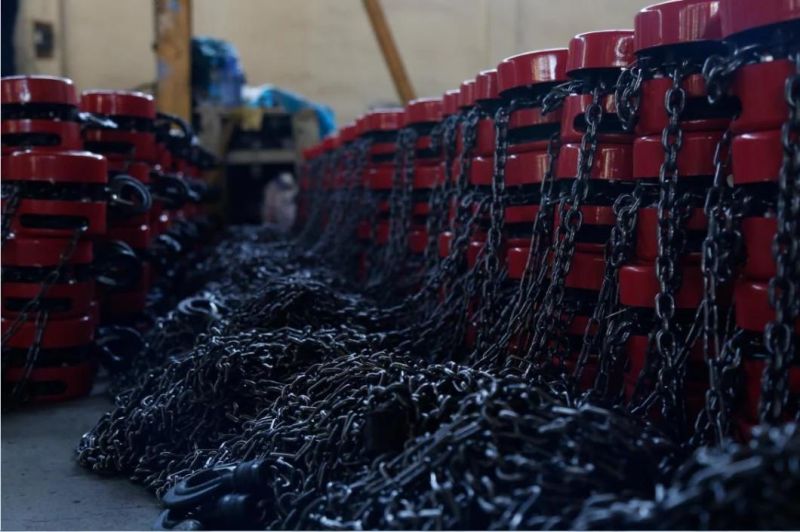

Chain block factory:





Our company info:
Baoding Jiazhong Hositing Machinery plant is located in the donglv village,we have 23 sets of Automatic chain production equipment .

We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ26), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.

As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Huaxin lifting means, Huaxin hoist chains, Huaxin Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.

We looking forward to your inquiry and hope we can have good businessrelationship in future!
