• Model NO.：glass lifter
• Lifting Height：1600mm
• Max Lifting Plate Size：3660*2440mm
• Suction Cup Diameter：300mm
• Suction Cup Qty：4,6,8
• Lifting Speed：90mm,120s
• Falling Speed：125mm,80s
• Lifting Motor：2.2kw
• Brake Method：Foot Brake, Electromagnetic Brake
• Battery：24V,120ah
• Application：Workshop Crane
• Lift Mechanism：Telescoping Lift
• Carrying Capacity：800-400kgs
• Transport Package：Plywood Box Package
• Specification：customized available
• Trademark：toyocc
• Origin：China
• HS Code：8428909090
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. glass lifter Lifting Height 1600mm Max Lifting Plate Size 3660*2440mm Suction Cup Diameter 300mm Suction Cup Qty 4/6/8 Lifting Speed 90mm/120s Falling Speed 125mm/80s Lifting Motor 2.2kw Brake Method Foot Brake/ Electromagnetic Brake Battery 24V/120ah Application Workshop Crane Lift Mechanism Telescoping Lift Carrying Capacity 800-400kgs Transport Package Plywood Box Package Specification customized available Trademark toyocc Origin China HS Code 8428909090 Production Capacity 10000pieces/Year

Product Description

Cranage Equipment for Handling Glass, Iron Plate, Stainless Steel Plate and Other Plates
Introduction:

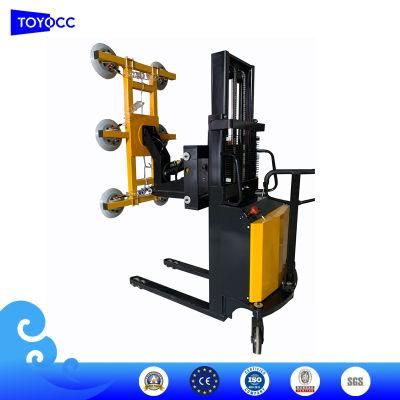

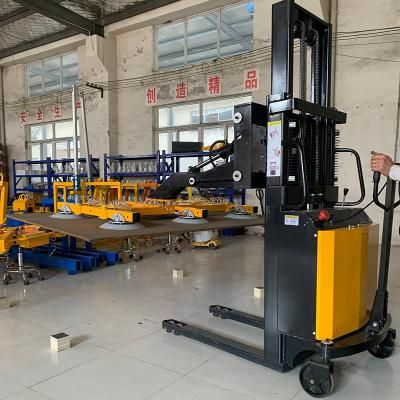

The production and design of the TRYN series suction cup pallet truck combines the advantages of forklifts and suction cup spreaders, which can be used as the functions of ascending, descending, forward tilting, backward tilting, side shifting, rotating, and side turning, and can lift the glass from horizontal to vertical or Any switch from vertical to horizontal, generally used for handling, loading and unloading glass, iron plate, stainless steel plate and other plates. Among them, TRYN-S requires manpower to push and pull to walk, TRYN-F can walk electrically, and RYN-N is a counterweight type without support legs, which is more convenient to operate. Can receive non-standard customization.

Features:
1. Battery powered, no need for external air source or power source, electric inhale and deflate, easy to use
2. It can be equipped with electric rotation, side rotation, side shift and other functions
3. High-power motor, strong power, stable operation
4. Japan's Panasonic digital display pressure sensor, with automatic start-stop function, clearly monitor the safe operation of the equipment
5. Built-in vacuum pressure compensation system to ensure that the entire vacuum system is maintained at a relatively constant safety value during the glass handling process. Even if the power is off unexpectedly, the pressure holding function can extend the emergency processing time and make it safer to use.
6. The position of the suction cup can be adjusted, and each suction cup is equipped with a separate control valve, which can suck different shapes and sizes of glass.

Specification:

Model	/	TRYN-S
Max. Lifting Weight (horizontal)	Kg	800
Safe Loading Weight (vertical)		400
Operation	/	Manual
Lifting Height	mm	1600
Max Lifting Plate Size	mm	3660*2440
Suction Cup Diameter	mm	300
Suction Cup Qty	/	4/6/8
Lifting Speed	mm/s	90/120
Falling Speed	mm/s	125/80
Lifting Motor	kw	2.2
Front Wheel Size	mm	80*70
Back Wheel Size	mm	150*50
Brake Method	/	Foot brake
Battery	V/Ah	24/120



Model	/	TRYN-F
Max. Lifting Weight (horizontal)	Kg	1000
Safe Loading Weight (vertical)		500
Operation	/	Electrical
Lifting Height	mm	1600
Max Lifting Plate Size	mm	3660*2440
Suction Cup Diameter	mm	300
Suction Cup Qty	/	4/6/8
Lifting Speed	mm/s	90/120
Falling Speed	mm/s	125/80
Lifting Motor	kw	2.2
Walking Motor	kw	1.2
Driving Wheel Size	mm	Φ300*80
Front Wheel Size	mm	80*70
Balance Wheel Size	mm	150*80
Brake Method		Electromagnetic brake
Power		AC
Battery	V/Ah	24/120

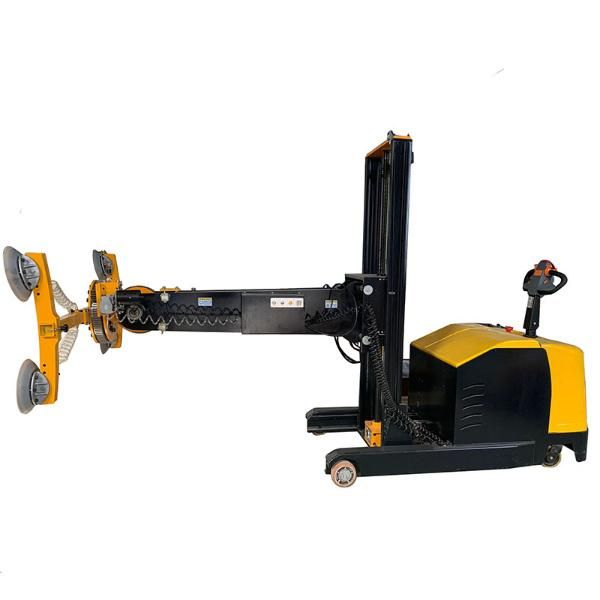

Model	/	TRYN-N
Max. Lifting Weight (horizontal)	Kg	1000
Safe Loading Weight (vertical)		500
Operation	/	Electrical
Lifting Height	mm	1600
Max Lifting Plate Size	mm	3660*2440
Suction Cup Diameter	mm	300
Suction Cup Qty	/	4/6/8
Lifting Speed	mm/s	90/120
Falling Speed	mm/s	125/80
Lifting Motor	kw	2.2
Walking Motor	kw	1.5
Driving Wheel Size	mm	Φ300*80
Front Wheel Size	mm	150*80
Balance Wheel Size	mm	150*80
Brake Method		Electromagnetic brake
Power		AC
Battery	V/Ah	24/120(24/210 optional)

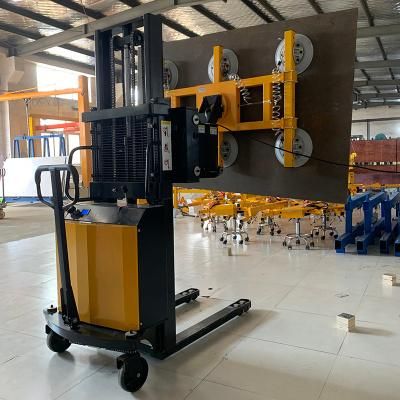

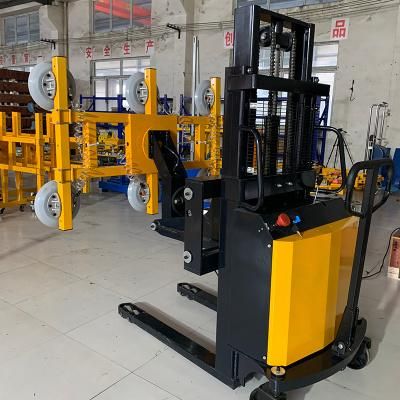

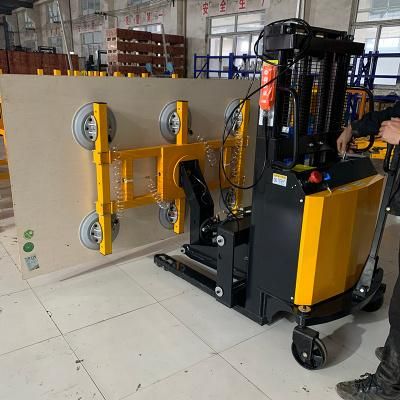

Close-up Pics:

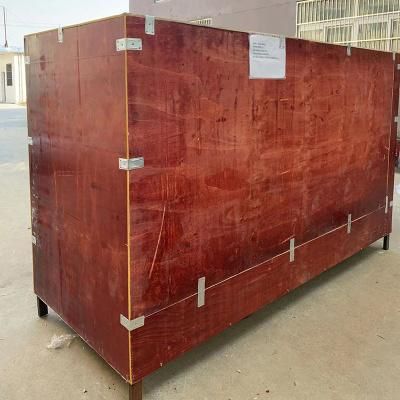

Package and Loading:
