• Model NO.：VITAL
• Certification：CE, ISO9001:2000, GS
• Condition：New
• Color：Orange
• Capacity：1 T 2 T 3 T 5 T 10 T 15 T 20 T 30 T
• Hmin：3 M 6m 9 M 12m
• Colour：Orange
• Chain：G80
• Transport Package：Carton
• Specification：CE ISO9001 GS
• Trademark：HAIYAN
• Origin：China
• HS Code：8425190000
• Production Capacity：1000PCS,Week

HS-VT VITAL Type Chain Block Hoist parameter as belows:

Model

HS-VT-1/2

HS-VT1

HS-VT1 1/2

HS-VT2

HS-VT3

HS-VT5

HS-VT10

Capacity(t)

0.5

1

1.5

2

3

5

10

Lifting Height(m)

2.5

2.5

2.5

3

3

3

3.5

Test load(t)

0.75

1.5

2.25

3

4.5

7.5

15

Min Distance between hooks(mm)

285

315

340

380

475

600

700

Chainpull to lift full load(N)

25

33

34

34

35

39

41

No. of  load chain fall lines

1

1

1

1

2

2

4

Diameter of  load chain(mm)

6.3

6.3

7.1

8

7.1

9

9

N.W(kg)

8.4

11

13.5

21

22

40

77

G.W(kg)

9.4

12

14.5

22

23

41.5

85

Packing measurement L × W × H(cm)

30×17×32

30×17×32

30×17×32

28×19×23

30×17×32

40×20×34

62×50×26

1. Lifting tools has Japan technology

2. Vt types of chain block load limiter is available at extra cost

3. vital chain hoist has low effort to lift maximum load

4. Automatic double pawl braking system

5. Premium grade alloy load chain and zinc plated hand chain as standard

6. Vital chain hoist capacity ranges from 0.5t to 10t, heavy duty 30t, 50t is available

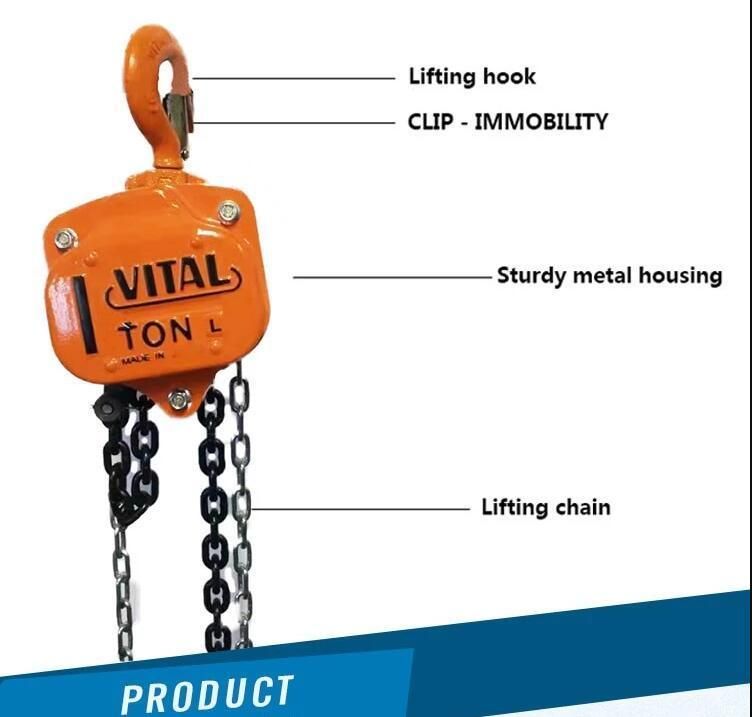

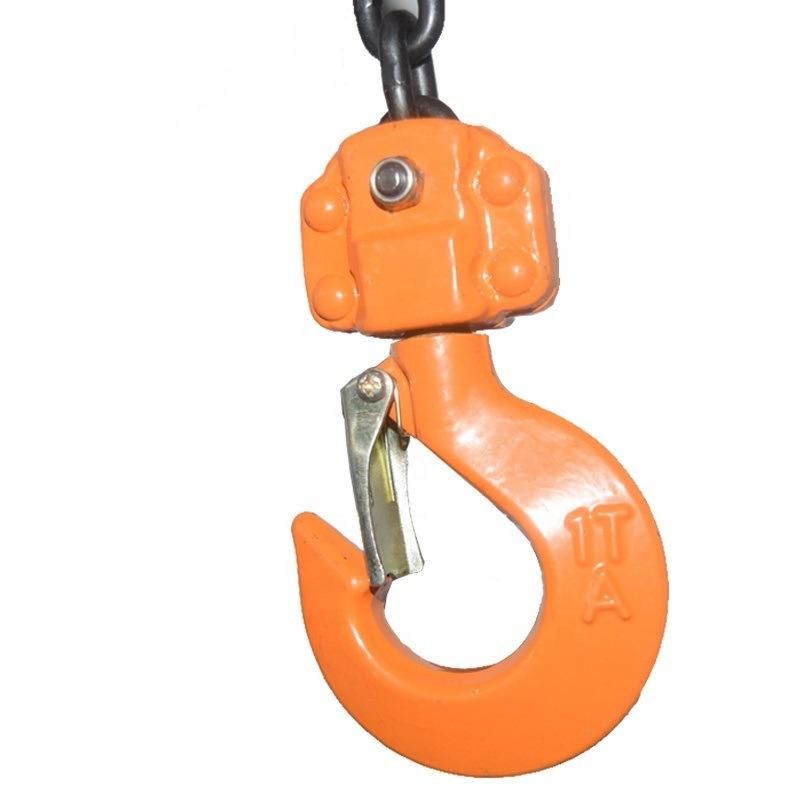

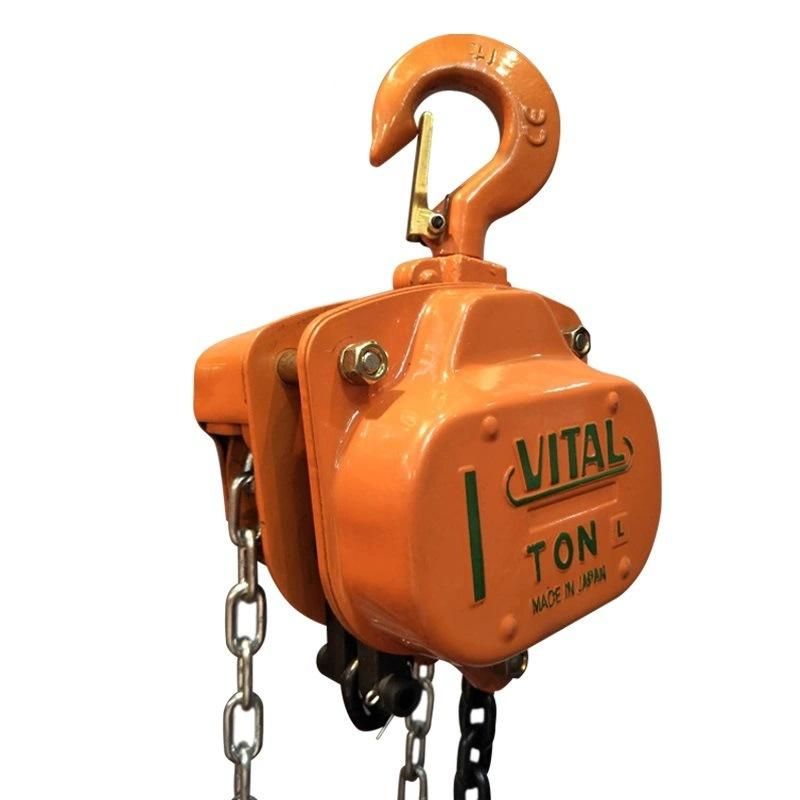

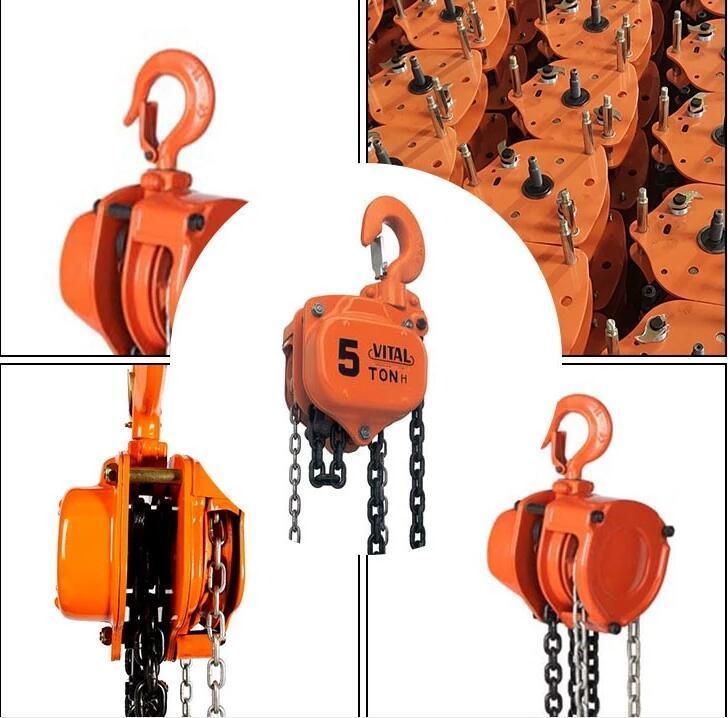

Vital chain block pics as belows:




Our company info:
Baoding Jiazhong Hoisting its main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.

As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Huaxin lifting means, Huaxin hoist chains, Huaxin Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.

Advanced technology, excellent talents and high quality products make Baoding Jiazhong hoisting Machinery Plant he ideal choice for you.
