• Model NO.：VT
• Certification：CE, ISO9001:2000, GS
• Condition：New
• Color：Orange
• Capacity：1 T 2 T 3 T 5 T 10 T 15 T 20 T 30 T
• Lifting Height：3 M 6m 9 M 12m
• Colour：Yellow
• Chain：G80
• Transport Package：Carton
• Specification：CE ISO9001 GS
• Trademark：HAIYAN
• Origin：China
• HS Code：8425190000
• Production Capacity：1000PCS,Week

HS-VT VITAL Type Chain Block Hoist parameter as belows:

Model

HS-VT-1/2

HS-VT1

HS-VT1 1/2

HS-VT2

HS-VT3

HS-VT5

HS-VT10

Capacity(t)

0.5

1

1.5

2

3

5

10

Lifting Height(m)

2.5

2.5

2.5

3

3

3

3.5

Test load(t)

0.75

1.5

2.25

3

4.5

7.5

15

Min Distance between hooks(mm)

285

315

340

380

475

600

700

Chainpull to lift full load(N)

25

33

34

34

35

39

41

No. of  load chain fall lines

1

1

1

1

2

2

4

Diameter of  load chain(mm)

6.3

6.3

7.1

8

7.1

9

9

N.W(kg)

8.4

11

13.5

21

22

40

77

G.W(kg)

9.4

12

14.5

22

23

41.5

85

Packing measurement L × W × H(cm)

30×17×32

30×17×32

30×17×32

28×19×23

30×17×32

40×20×34

62×50×26

1. Lifting tools has Japan technology

2. Vt types of chain block load limiter is available at extra cost

3. vital chain hoist has low effort to lift maximum load

4. Automatic double pawl braking system

5. Premium grade alloy load chain and zinc plated hand chain as standard

6. Vital chain hoist capacity ranges from 0.5t to 10t, heavy duty 30t, 50t is available

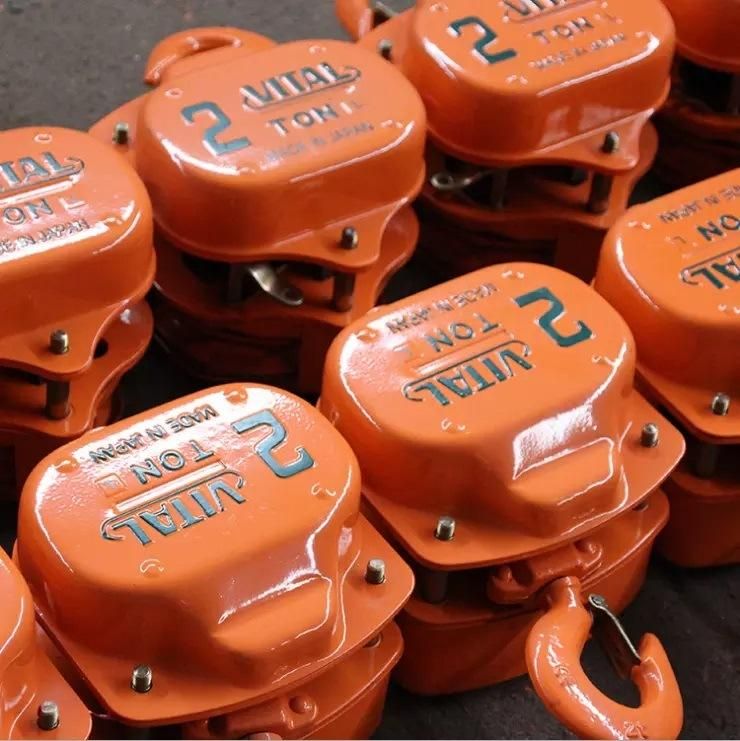

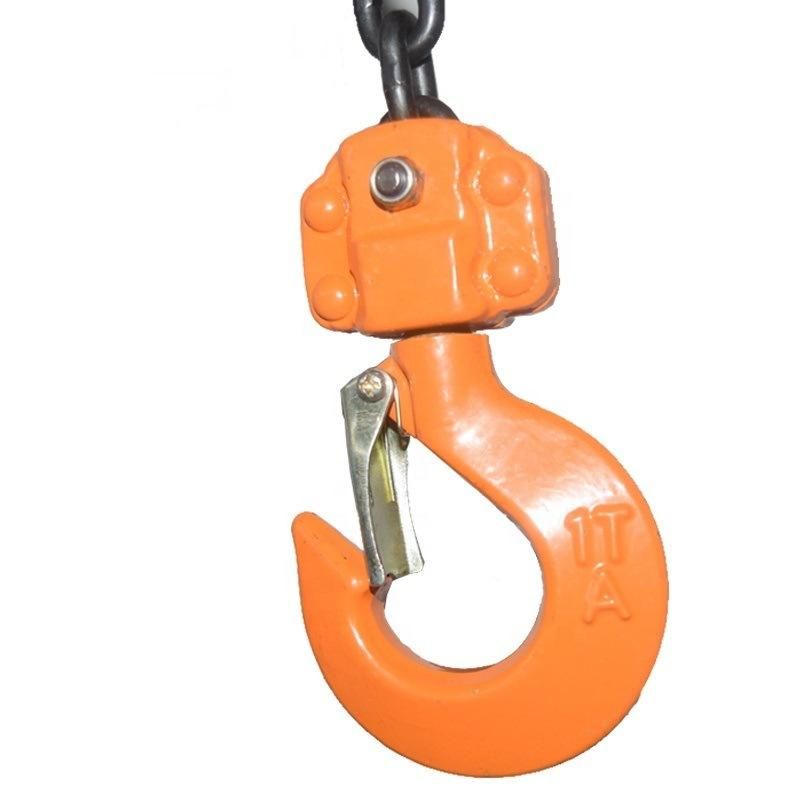

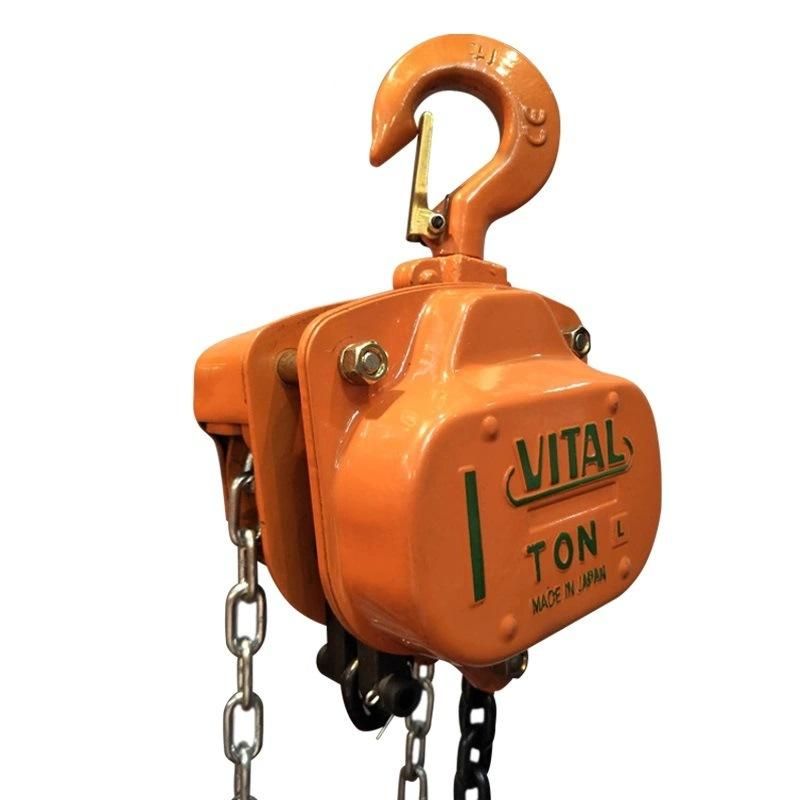

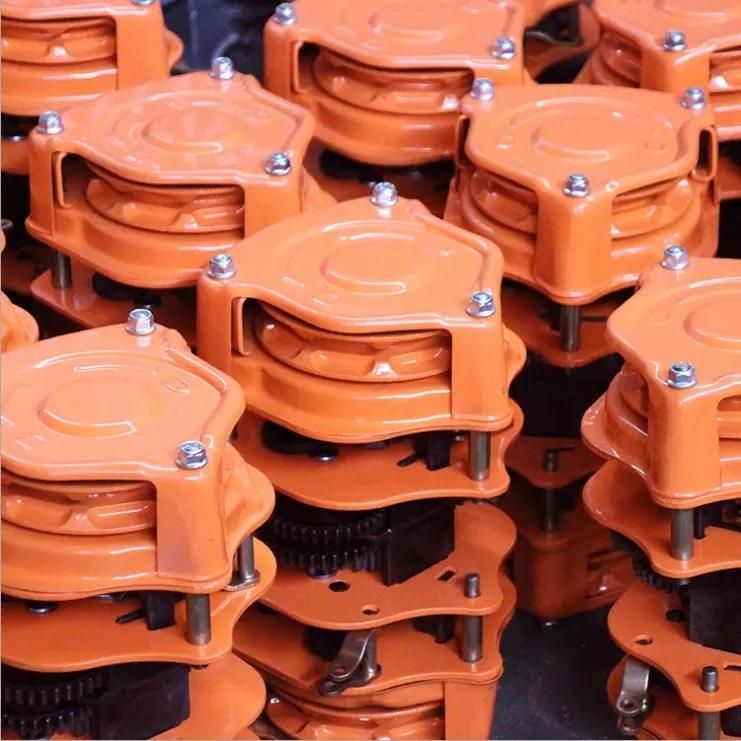

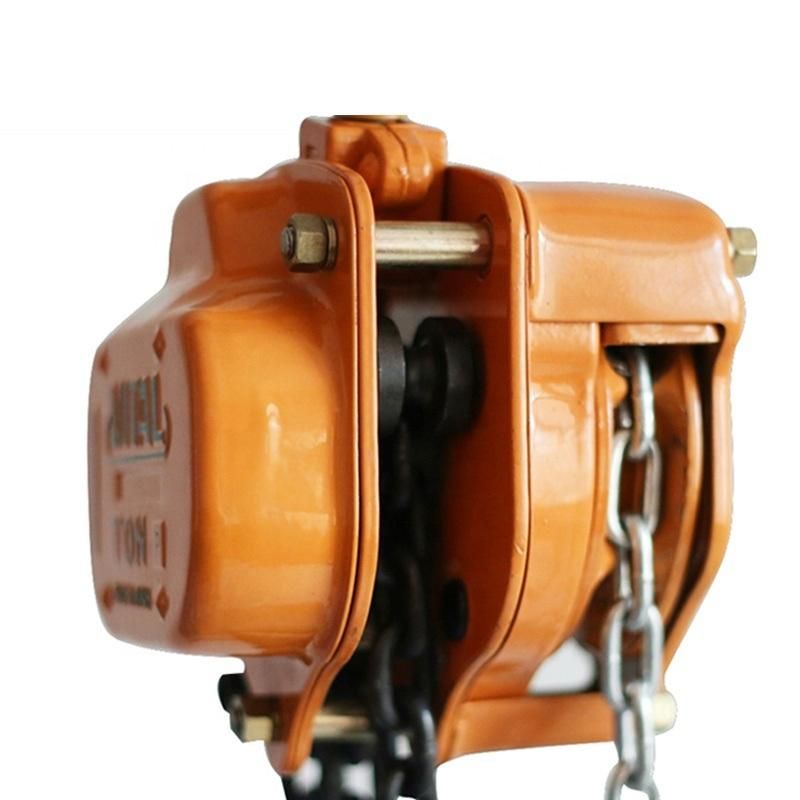

Vital chain block pics as belows:







Our company info:
Baoding Jiazhong Hositing Machinery plant is located in the donglv village,we have 23 sets of Automatic chain production equipment .

We specializes in manufacturing standard heavy duty lifting chain (φ4 -φ26), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 20 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.

As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Huaxin lifting means, Huaxin hoist chains, Huaxin Chain block and Huaxin Electric hoist are a guarantee of quality, innovation and safety.

We looking forward to your inquiry and hope we can have good businessrelationship in future!
