• Model NO.：SJG
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Max Platform Height：6000mm
• Platform Size：1300mm(L)* 900mm(W) or Customized
• Min Platform Height：80mm
• Hydraulic Drive：Smooth and Safe Lifting
• Load Capacity：200-450kg
• Power Output：1.5kw
• Speed：80-100mm
• Platform：Stainless Steel Platform
• Noise：50dB
• Control Mode：Button,Remote Controls
• Transport Package：Standard Exporting Plywood Package
• Specification：CE, ISO, SGS
• Trademark：Moral
• Origin：China(Mainland), Shandong, Jinan
• HS Code：842890
• Production Capacity：100sets Per Month

1200mm(L)* 900mm(W)
Dimension
1200mm(L)*1400mm(W)
MaxPlatform Height
6000mm
Min Platform height
80mm
Configuration
Open through or front and side entrances
Speed
70mm/s
Load capacity
300KG
Control voltage
24V/DC
Power Output
1.5KW
Power Input
220V/50HZ/ (or customized for local power supply)
Drive System
Hydraulic
Control Mode
Automatic
Drive Control
Self-resetting system
Overload
Protection Over current relay
Material of Platform
Checkered slip-proof aluminum alloy
Painting
Plastic electrostatic spraying
Guard panel & drivecabinet (framework)
Aluminum Alloy / 304 stainless steel

Operation Panel
Polished aluminum Alloy
Safety Wane WorkingRange
75°
Working Condition
Both indoors and outdoors
Working temperature
From -10°~60°C
Installation

Non-pit installation, directly fixed to concrete floor (the concrete
floor below the platform shall not be lower than the ground)
Control Device

Calling box (installed on the wall nearby) and remote
controller(Extra optional)
Emergency Stop

The lifting and lowering process can be stopped immediately
by pressing the emergency button.
Safety device
Safety Interlock
Lock the platform when it is out of control

SafetySensor
The operation must be stopped immediately thesafety edge meets obstacles during operation.

Emergencylowering
The platform can be lowered by opening
hydraulic valve manually or rolling screw rod.

Auto-flap
Turn up after lifti

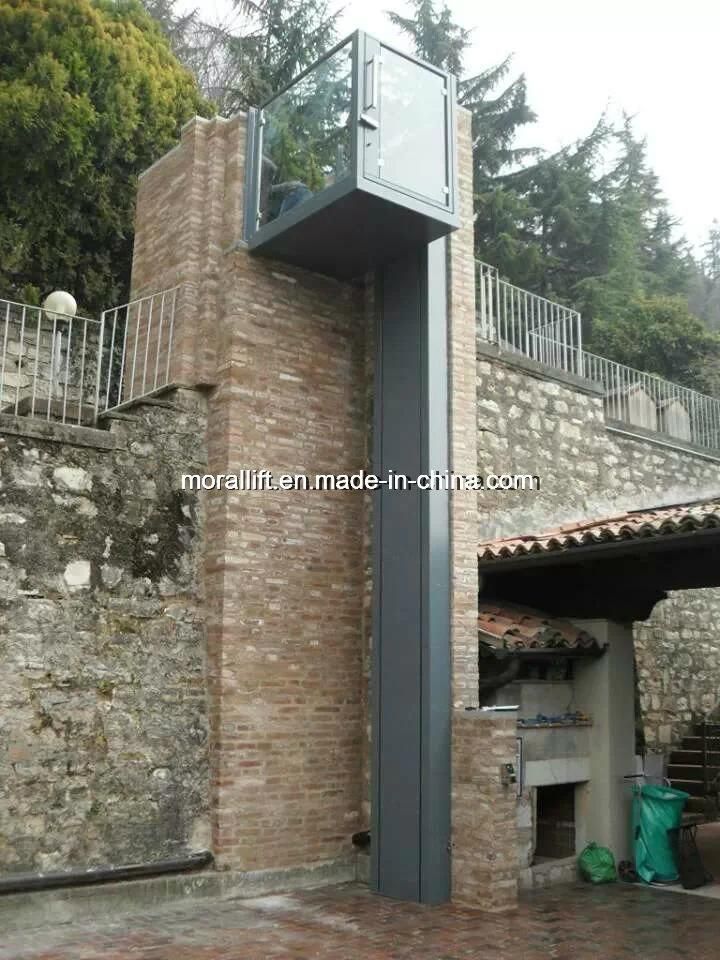

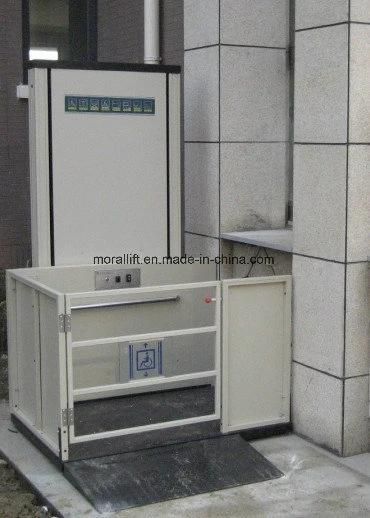

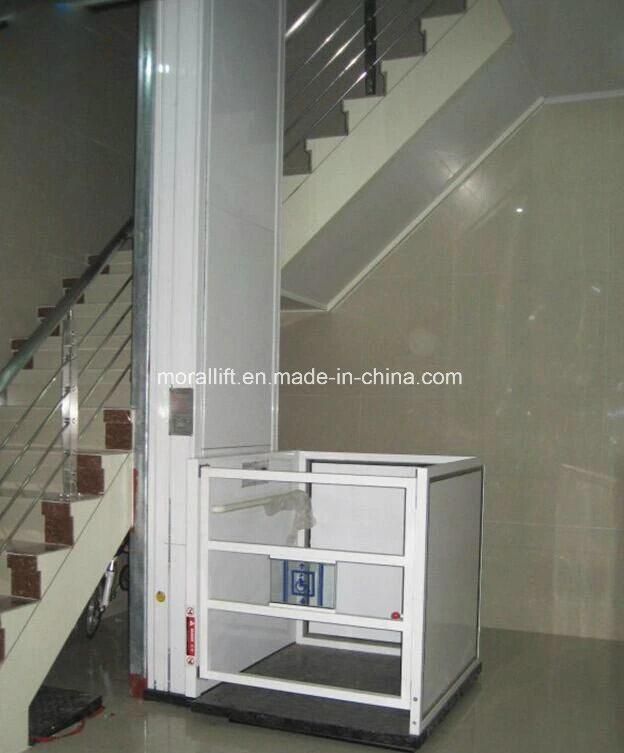

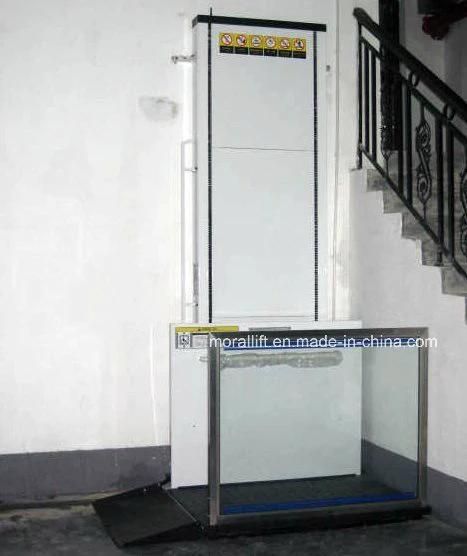

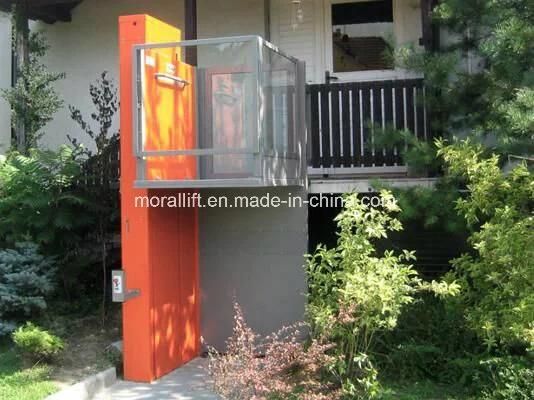

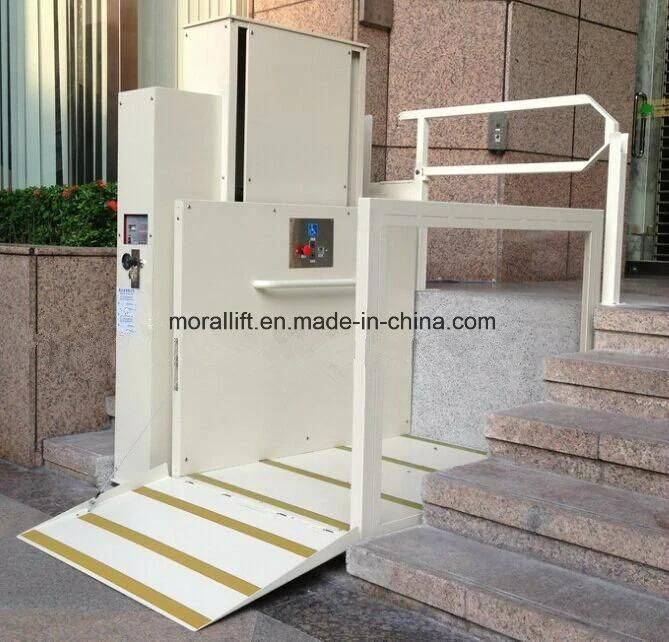

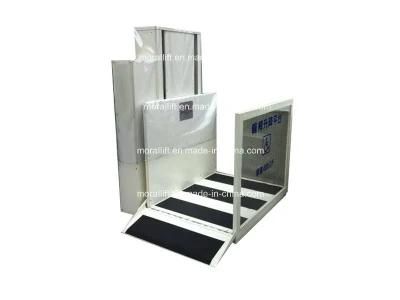

Photos:








Our Services:
1)All machines sold will be tested before shipment;
2)One year warranty without man-made fault;
3) 24hours technical support by email, telephone or video online.
4) User-friendly English manual for machine using and maintain.
5) Spare parts will be offered for free within warranty.
6)Professional consulting services team
7)Experienced product testing team
8)Advanced Technology team on the product line
9)After-sales Service Provided
10)Standard export packaging
11)Fast handling after confirmed order


We assure you of our best services at all times.
Your inquiry will be highly appreciated!
