• Model NO.：SJG
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Platform Size：1300*900mm
• Load Capacity：350kg
• Lifting Speed：100mm,S
• Color：Customized
• Painting：Plastic Electrostatic Spraying
• Min Platform Height：80mm
• Drive：Hydraulic
• Material of Platform：Checkered Slip-Proof Aluminum Alloy
• Power：1.5kw
• Max Height：6000mm
• Transport Package：Standard Export Packing
• Specification：CE, SGS, ISO
• Trademark：MORAL
• Origin：Shandong. China
• HS Code：842890
• Production Capacity：5000PCS,Year

1300mm(L)* 900mm(W) or  customizedMax Platform Height6000mmMin Platform height80mmSpeed80-100mm/sLoad capacity250KG~350KGControl voltage24V/DCPower Output1.5KWPower Input220V/50HZ/25A (or customized for local power supply)Drive SystemHydraulic or screwControl ModeInching Switch or AutomaticDrive ControlSelf-resetting systemOverloadProtection Over current relayMaterial of PlatformCheckered slip-proof aluminum alloyPaintingPlastic electrostatic sprayingGuard panel & drive cabinet (framework)Aluminum Alloy / 304 stainless steelOperation PanelPolished aluminum AlloyWorking ConditionBoth indoors and outdoorsWorking temperatureFrom -50°~60°CInstallationNon-pit installation, directly fixed to concrete floor (the concrete
Floor below the platform shall not be lower than the ground)Emergency StopThe lifting and lowering process can be stopped immediately
By pressing the emergency button.Safety deviceSafety InterlockLock the platform when it is out of control Safety SensorThe operation must be stopped immediately the safety edge meets obstacles during operation. Emergency loweringThe platform can be lowered by opening
Hydraulic valve manually or rolling screw rod. Auto-flapTurn up after lifting

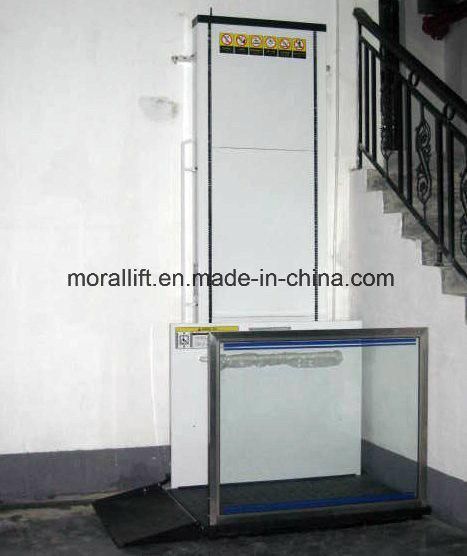

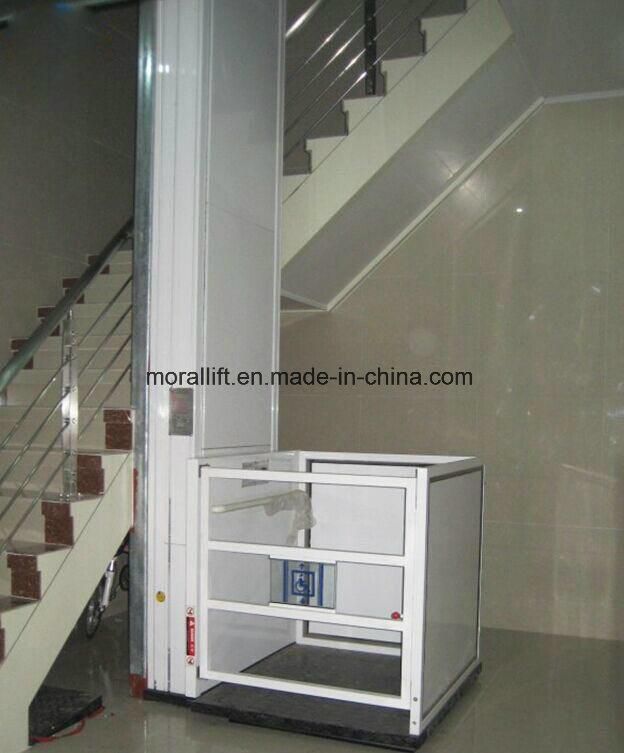

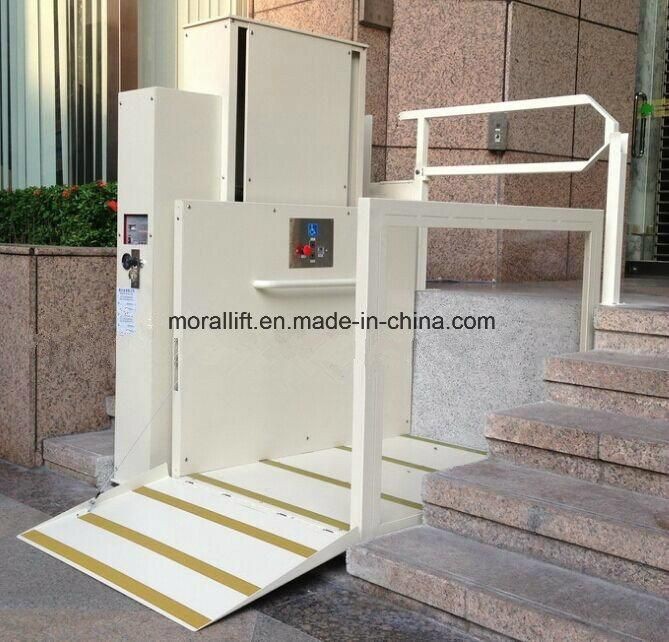

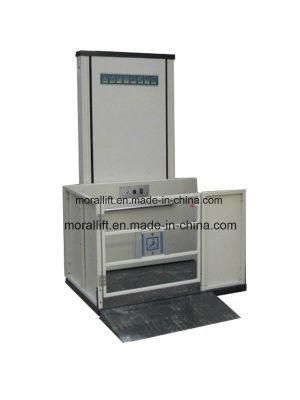

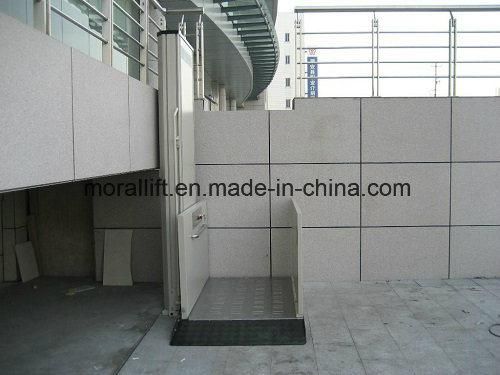

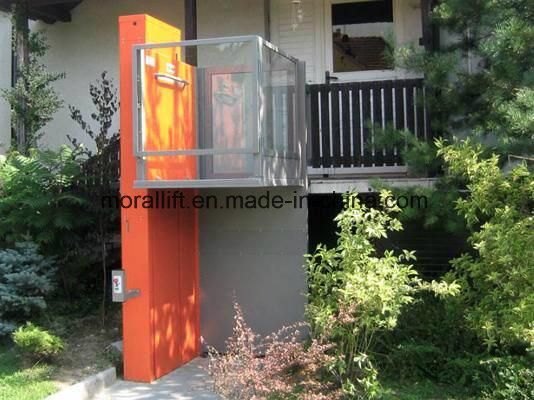

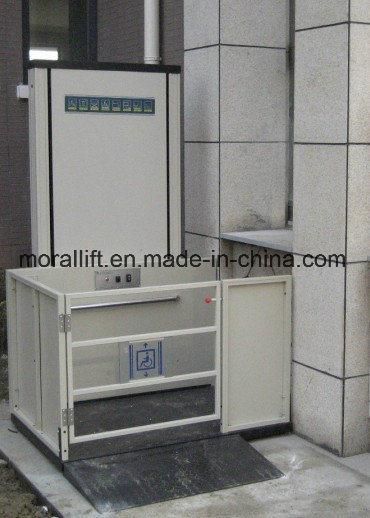

Photos:








Our services:
A Technical support:
1, Technical support by phone, email or MSN/Skype 24 HOURS
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas

B After sales services:
Normal machine is properly adjusted before dispatch.
You will be able to get free training advice towards our machine in our factory.
Youwill also get free suggestion and consulting, technical support and service by
email/fax/tel and lifetime technical support.


FAQ:
A This is the first time I use this kind of machine, is it easy to operate?
There are english manual or teaching video that show how to use machine.
If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.

C MOQ ?
The minimum order is 1 set machine, if you order more one time, the price will be better.

D How can I buy this machine from you?   ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.

E 9 good reasons why you should buy from us?
1 we are a real factory offering products
2 free technical advice by QUALIFIED MECHANICAL ENGINEERS
3 company in business for many years
4 over 50 countries customers served!
5 buy direct saving your money!
6 all machine with CE, ISO, BV certificate.
7 our engineer can go to your country to provide technical guidance
8 we have phone support in English, if you have any questions, you can call it,
we can give you a best solution within 24 hours
9 fast delivery, save your time.
