• Model NO.：TBL
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Load Capacity：200kg
• Lifting Height：4m-14m
• Power：Electrical, Diesel, Battery
• Rotation：359 Degree
• Motor：2.2kw
• Dimension：5400*1600*1900mm
• Lifting Speed：50-90mm,S
• Travel Speed：15-30km,H
• Max Working Radius：3500mm
• Working Pressure：10 MPa
• Transport Package：Standard Export Packing
• Specification：CE, ISO, SGS
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. TBL Feature Explosion-Proof Certification CE, ISO 9001 Load Capacity 200kg Lifting Height 4m-14m Power Electrical, Diesel, Battery Rotation 359 Degree Motor 2.2kw Dimension 5400*1600*1900mm Lifting Speed 50-90mm/S Travel Speed 15-30km/H Max Working Radius 3500mm Working Pressure 10 MPa Transport Package Standard Export Packing Specification CE, ISO, SGS Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 5000PCS/Year

Product Description

Mobile Electric Towable Pull-behind Boom Lift


 1.Power:electrical,diesel,battery
 2.Loading capacity:200kg
 3.hydraulic system ensure safety
 4.Rotating:360 degree
 Specifications:Pull-behind lift table for the use of indoor and outdoor high-altitude operations. Which can be car-carring to everywhere, easy to use, large operations, in particular to cross certain obstacles or in a take-off and landing can be more characteristic of high-altitude operations. Widely used in roads, terminals, shopping malls, stadiums, residential property, factories and mines operating large-scale workshop

1.Platform :Its platform can lift up ,extend horizontally, or turn around 360 degrees to stride across certain obstacles for work . so it can realize multipoint work in wide scope.
2.Legs:With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.
3.Drive:It can be diesel or storage battery according to customer's requirements.
4.Material:Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,
5.Hydraulic cylinder::Original import or domestic joint venture hydraulic cylinder, with high quality,  improving the reliability and prolonging  the work time,
6.Aloft work platform:Equipped with balanced valve, automatic pressure maintaining ,etc.
If  you need it,please tell us your lifting height,.thanks!

Application:
Trailer boom lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.


Parameters:

Model:	ZBPT-10
Loading capacity	200kg
Travel height	8,000mm
Working height	10,000mm
Max working radius	3500mm
Rotation	360°
Platform size	900*700mm
Dimensions	5400*1600*1900mm
Lifting speed	50mm~90mm/s
Travel speed	15~30km/h
Working pressure	10 Mpa
Windproof level	<=5
Overload	Protection over current relay
Control voltage	24V/DC
Power Input	AC 2.2KW
Drive System	Hydraulic
Control Mode	Button/remote controls
Platform	Non-skid Diamond steel platform
Hydraulic cylinder	Φ80*2 and Φ70*5
Controls parts	Delixi

Company Information:
Welcome to Moral lift,we are professional manufacturer for SCISSOR LIFT,FREIGHT LIFT,DISABLED LIFT,PARKING LIFT,LOADING RAMP AND WORK PLATFORM.  We are a member company of China's Association of Warehouse and Storage. We have fine equipment,advanced technology and complete testing equipment. Welcome to your inquiry,pls tell us your load capacity, platform size and travel height,we can customize for you,thanks!
Look forward to having opportunity to cooperate with all of you around the world!

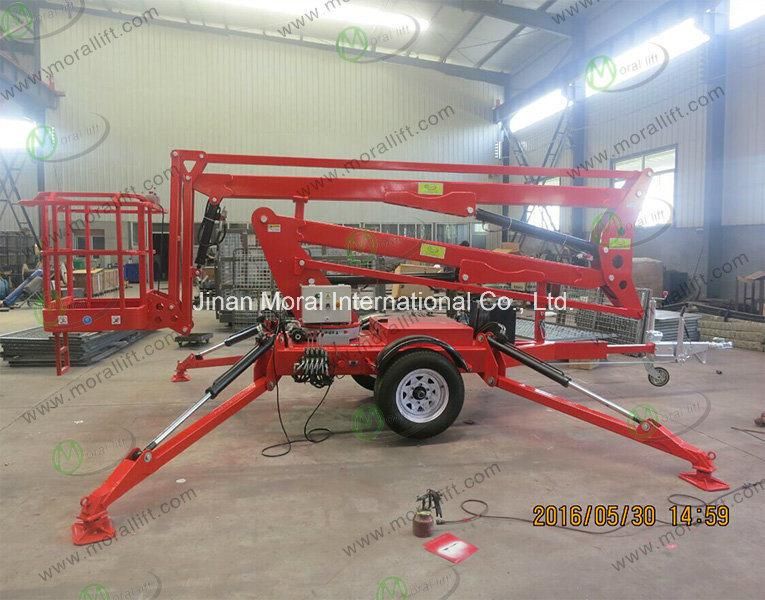

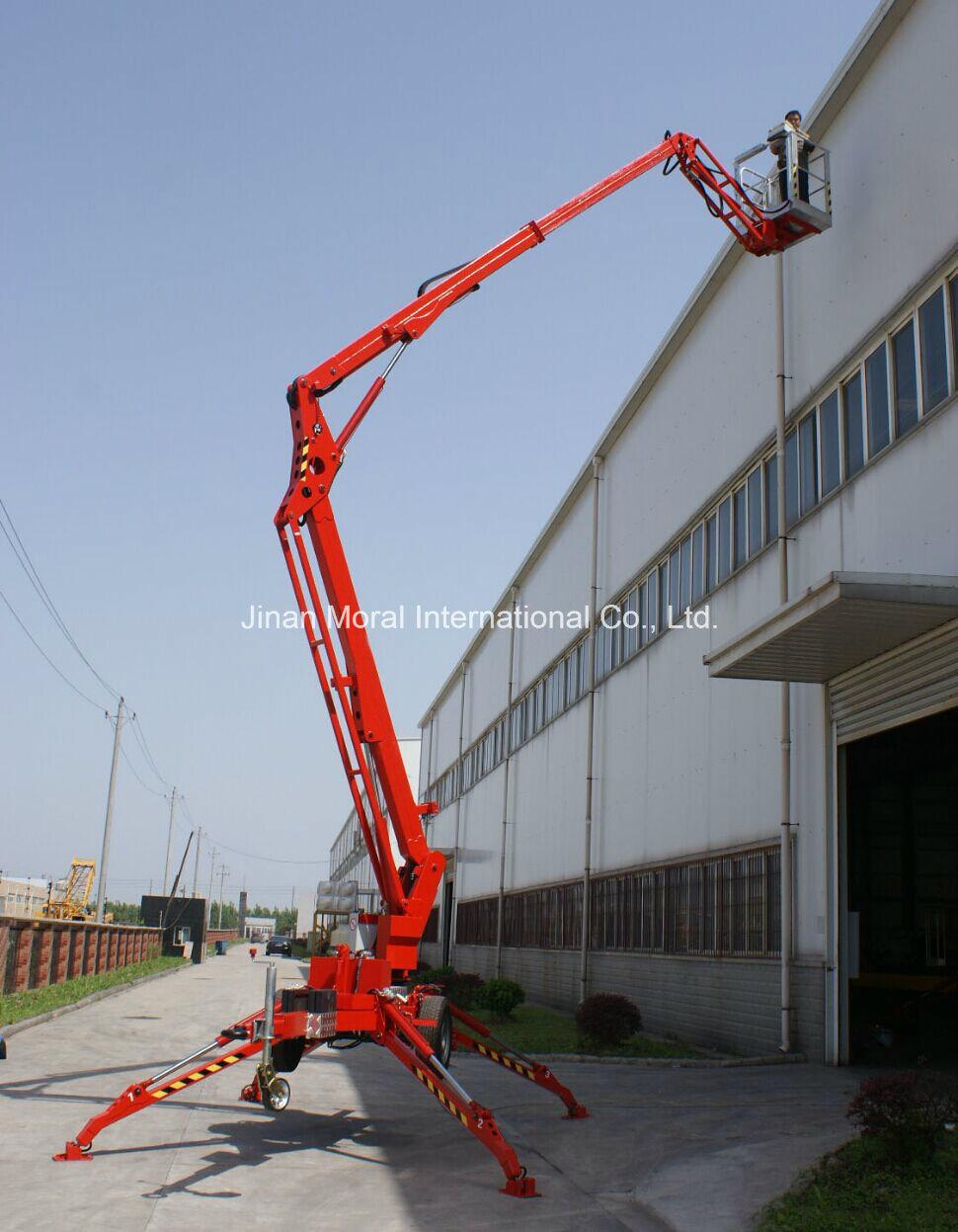

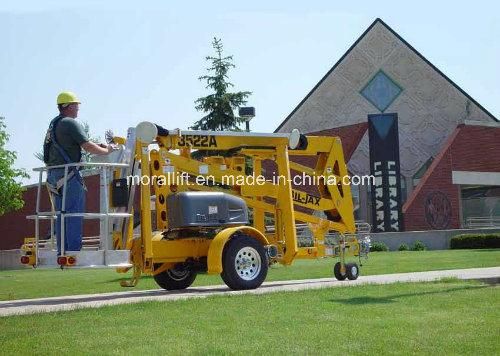

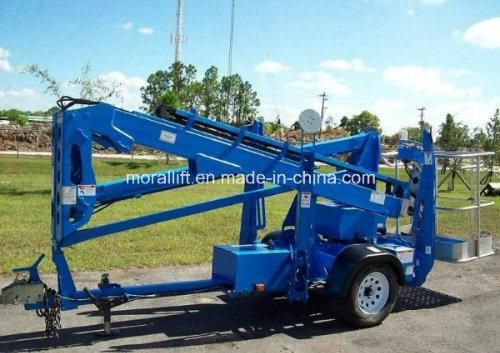

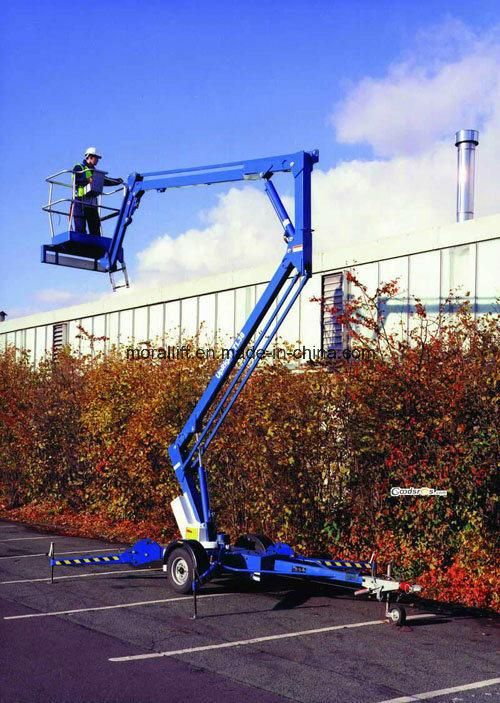

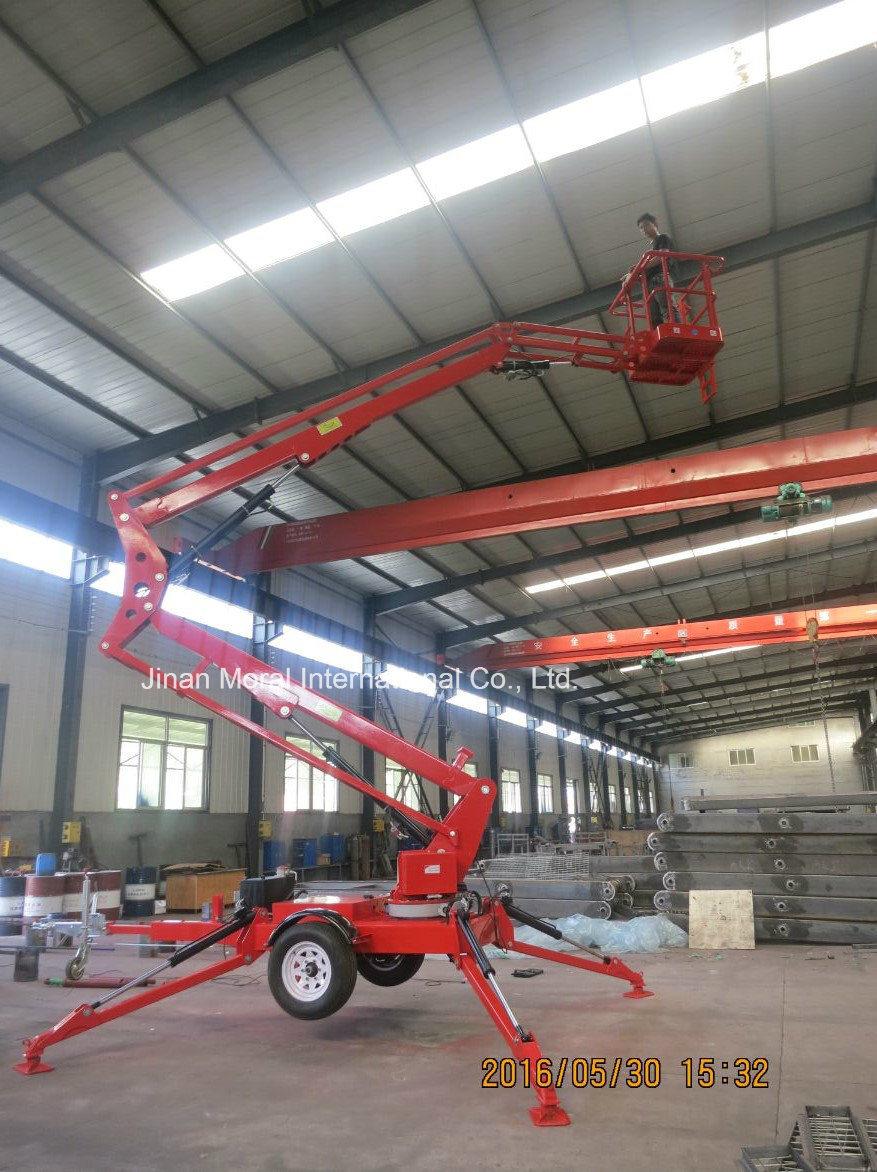

Product Images:






Our services:

1.Professional consulting services team

2.Professional R&D design team

3.Experienced product testing team

4.Advanced Technology team on the product line

5.After-sales Service Provided

6.Standard export packaging

7.Fast handling after confirmed order

FAQ:
A This is the first time I use this kind of machine, is it easy to operate?There are english manual or teaching video that show how to use machine.If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.

B If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period if machine have any problem.

C MOQ ?The minimum order is 1 set machine, if you order more one time, the price will be better.

D How can I buy this machine from you?   ( Very easy and flexible !)
1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

6. Send your order by air or by sea.

E10 good reasons why you should buy from us?

1  we are a real factory offering products

2  free technical advice by QUALIFIED MECHANICAL ENGINEERS

3  company in business for many years

4  over 50 countries customers served!

5  buy direct saving your money!

6  all machine with CE, ISO certificate.

7  machine and spindle warranty 1 year.

8  our engineer can go to your country to provide technical guidance
