• Model NO.：TBL
• Certification：CE
• Load Capacity：200kg
• Lifting Height：4m-16m
• Power：Electrical, Diesel, Battery
• Rotation：360 Degree
• Motor：2.2kw
• Dimension：5400*1600*1900mm
• Lifting Speed：50-90mm,S
• Travel Speed：15-30km,H
• Max Working Radius：3500mm
• Working Pressure：10 MPa
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：MORAL,OEM
• Origin：Shandong, China
• HS Code：842890
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. TBL Certification CE Load Capacity 200kg Lifting Height 4m-16m Power Electrical, Diesel, Battery Rotation 360 Degree Motor 2.2kw Dimension 5400*1600*1900mm Lifting Speed 50-90mm/S Travel Speed 15-30km/H Max Working Radius 3500mm Working Pressure 10 MPa Transport Package Standard Export Packing Specification CE Trademark MORAL/OEM Origin Shandong, China HS Code 842890 Production Capacity 5000PCS/Year

Product Description

Electric Drive Articulated Towable Boom Lift(TBL)

 1.Power:electrical,diesel,battery
 2.Loading capacity:200kg
 3.hydraulic system ensure safety
 4.Rotating:360 degree

Specifications:

Pull-behind lift table for the use of indoor and outdoor high-altitude operations. Which can be car-carring to everywhere, easy to use, large operations, in particular to cross certain obstacles or in a take-off and landing can be more characteristic of high-altitude operations. Widely used in roads, terminals, shopping malls, stadiums, residential property, factories and mines operating large-scale workshop


1.Platform :Its platform can lift up ,extend horizontally, or turn around 360 degrees to stride across certain obstacles for work . so it can realize multipoint work in wide scope.
2.Legs:With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.
3.Drive:It can be diesel or storage battery according to customer's requirements.
4.Material:Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,
5.Hydraulic cylinder::Original import or domestic joint venture hydraulic cylinder, with high quality,  improving the reliability and prolonging  the work time,
6.Aloft work platform:Equipped with balanced valve, automatic pressure maintaining ,etc.

If  you need it,please tell us your lifting height,.thanks!

Application
Trailer boom lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop, residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction and other large range homework place.

Parameter

Model		TBL
Max.working height		16.00M
Max.platform height		14.00M
Loading Capacity		200KG
Lateral Outreach		8.0M
Jib Rotation		100°
Turntable Rotation		359°
Size of basket		0.9×0.8×1.1 M
Overall stowed length		5.60M
Overall stowed width		1.82M
Overall stowed height		2.2M
Total weight		2500KG
Traveling speed		40KM/H
Standard power source		220V AC power
Optional power source		Battery
Optional power source		Diesel engine
Optional power source		Gasoline

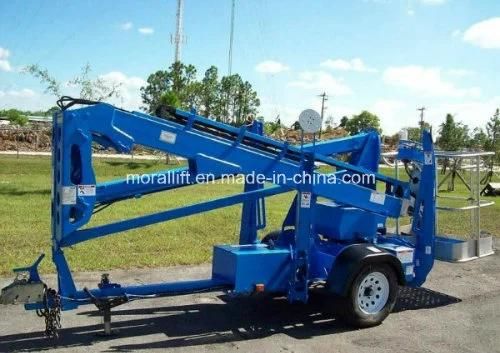

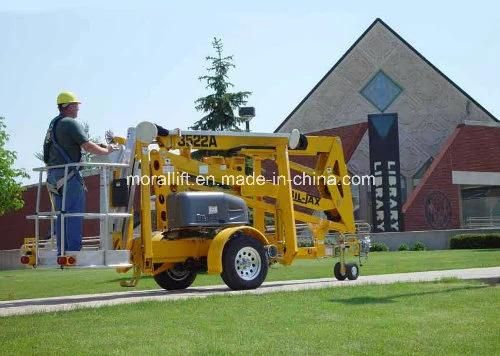

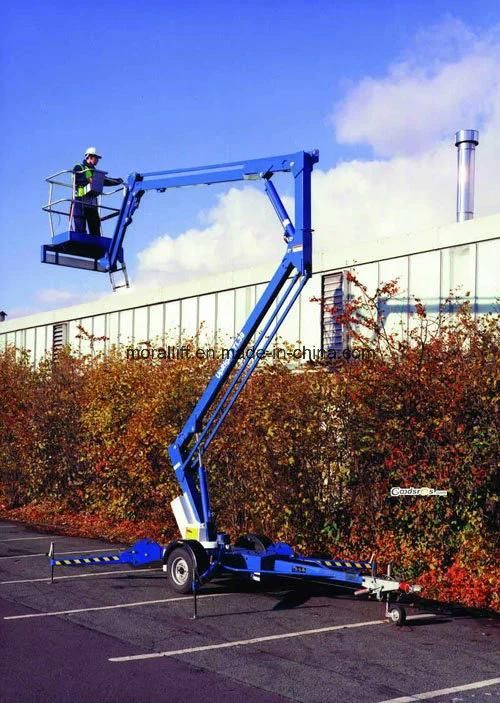

Product Images



Our services

1.Professional consulting services team

2.Professional R&D design team

3.Experienced product testing team

4.Advanced Technology team on the product line

5.After-sales Service Provided

6.Standard export packaging

7.Fast handling after confirmed order

FAQ

A This is the first time I use this kind of machine, is it easy to operate?

There are english manual or teaching video that show how to use machine.If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.



B If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period if machine have any problem.



C MOQ ?

The minimum order is 1 set machine, if you order more one time, the price will be better.



D How can I buy this machine from you?   ( Very easy and flexible !)

1. Consult us about this product on line or by e-mail.

2. Negotiate and confirm the final price , shipping , payment methods and other terms.

3. Send you the proforma invoice and confirm your order.

4. Make the payment according to the method put on proforma invoice.

5. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

6. Send your order by air or by sea.



E10 good reasons why you should buy from us?

1  we are a real factory offering products

2  free technical advice by QUALIFIED MECHANICAL ENGINEERS

3  company in business for many years

4  over 50 countries customers served!

5  buy direct saving your money!

6  all machine with CE, ISO certificate.

7  machine and spindle warranty 1 year.

8  our engineer can go to your country to provide technical guidance



Thank you for visiting our products!



Welcome to patronize !
