Indoor Vertical Mini Home Lift Platform Wheelchair Elevator Lift Price
Jinan Morn Technology Co., Ltd.- After-sales Service：Free Spare Parts and 24h Online Service
- Warranty：24 Months
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Special Weight Level
- Moves：Stationary
Base Info
- Model NO.：WL0.25-5
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof, Insulating
- Certification：CE
- Rated Loading Capacity：250kg
- Max. Lifting Height：5000mm
- Table Size：1400*900mm
- Control System：Both on The Platform and Ground
- Material：Stainless Steel
- Remote Control：Yes
- Emergency Stop：Manual Emergency Stop Valve
- Platform Safety：Underpan Sensor(Optional)
- Installation：on The Ground, No Pit
- Transport Package：Plywood Case
- Specification：CE, SGS
- Trademark：MORN
- Origin：Shandong China
- HS Code：8428909090
- Production Capacity：200 Units Per Month
Description
Safety sensor
Wheelchair lift stops running if bottom meet obstacle to protect people under platform.

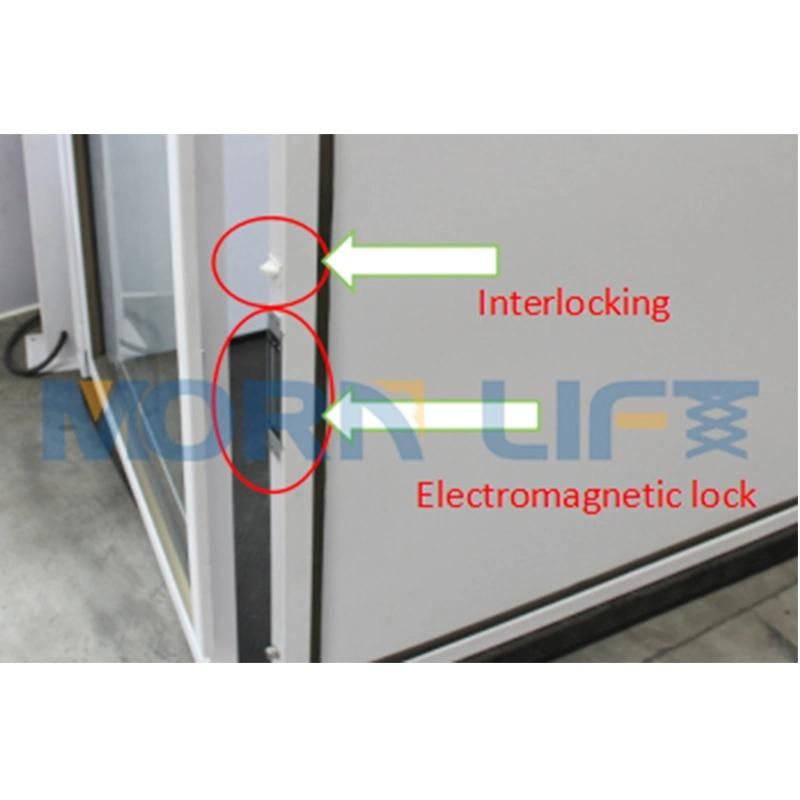

Electrical Interlock
To guarantee safety of carrier. Wheelchair lift stops lifting up or down when door is not closed.

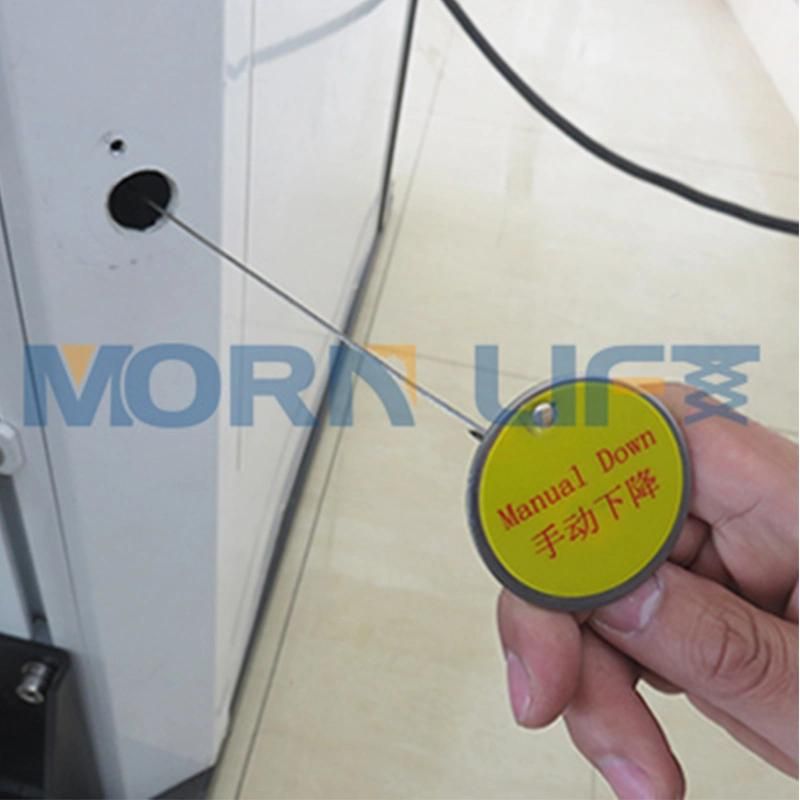

Manual Down
Pull out the switch to enable wheelchair lift fall down safely when when power cut suddenly.
Model List
Model | Lifting height | Load capacity | Platform size | Self weight | Manual Door |
WL-1 | 1000mm | 250kg | 1430*900mm | 350kg | Yes |
WL-2 | 2000mm | 250kg | 1430*900mm | 550kg | Yes |
WL-3 | 3000mm | 250kg | 1430*900mm | 780kg | Yes |
WL-4 | 4000mm | 250kg | 1430*900mm | 880kg | Yes |
WL-5 | 5000mm | 250kg | 1430*900mm | 1000kg | Yes |
WL-6 | 6000MM | 250kg | 1430*900mm | 1100kg | Yes |

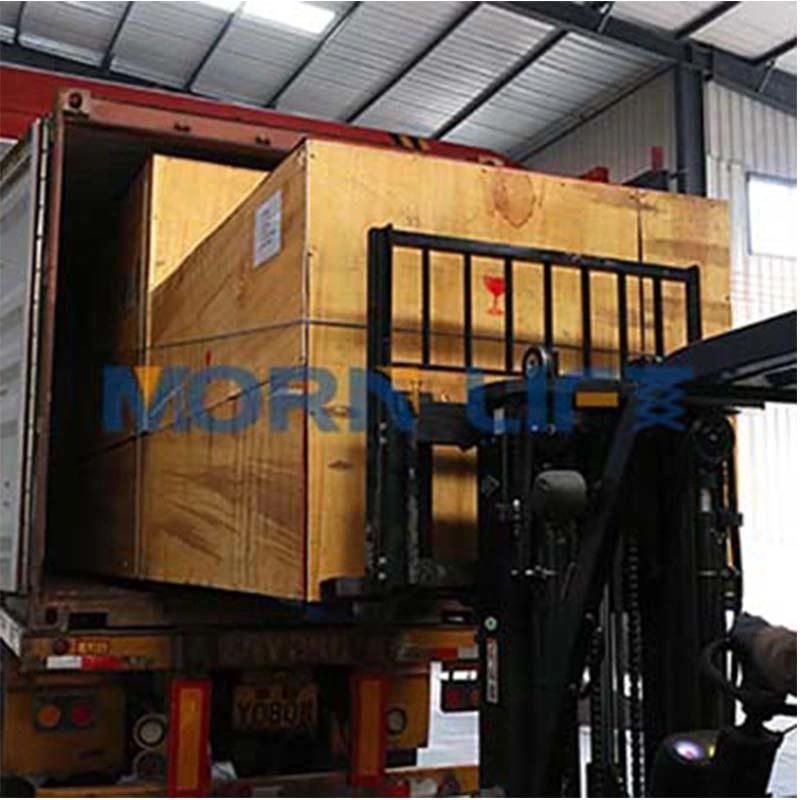

Packaging & Shipping
1. Film package to prevent humidity and rust.
2. Iron frame to keep lift stable in container.
3. Plywood to prevent lift from colliding. Convenient for forklift delivery.
