500kg Small Hoist Mini Crane Electric Wire Rope Hoist
Shanghai Yiying Crane Machinery Co., Ltd.- Type：Electric Hoist
- Sling Type：Wire Rope
Base Info
- Model NO.：PA500 mini electric wire rope hoist
- Lift Speed：10,5m
- Maximum Lifting Height：12m
- Chain Falls：1
- Certification：CE, ISO9001:2000, GS
- Condition：New
- Color：Red
- Product：500kg Small Hoist Mini Electric Wire Rope Hoist
- Type of Motor：100% Pure Copper for The Motor
- Material of Electric Cable Hoist：Steel
- Rated Volt of Electric Cable Hoist：110V,220V,300V or as Your Require
- Rated Lifting：500kg-1200kg
- Lifting Height：6m,12m or as Your Order
- Electric Cable Hoist Package：44*38*20
- Surface Treatment：PVC Coated
- Switch of Electric Cable Hoist：Remote Control
- Power Plug：as Your Require
- Transport Package：Carton Box ,Wooden Box Then in Pallet
- Specification：PA500 mini electric wire rope hoist
- Trademark：HUGONG
- Origin：Shanghai China
- HS Code：8425110000
- Production Capacity：About 300pieces Electric Cable Hoist ,Month
Description
230V 50HZ S3 20% 10min or as your requireInput Power(w) 450 500 750 900 1050 1300 1600 Rated Lifting(kg) 100/200 125/250 200/400 250/500 300/600 400/800 500/1000 Lifting height(m) 12/6 12/6 12/6 12/6 12/6 12/6 12/6 Lifting speed(m/min) 10/5 10/5 10/5 10/5 10/5 10/5 10/5 Packing dimensions(cm) 40*38*20 44*37*25 44*37*25 44*37*25 53*45*19 53*28*35 53*28*35 GW/NW 24/22 25/24 33/25 36/34 41/38 38/36 40/38 Quan/ctn(pcs) 2 2 2 2 2 2 2

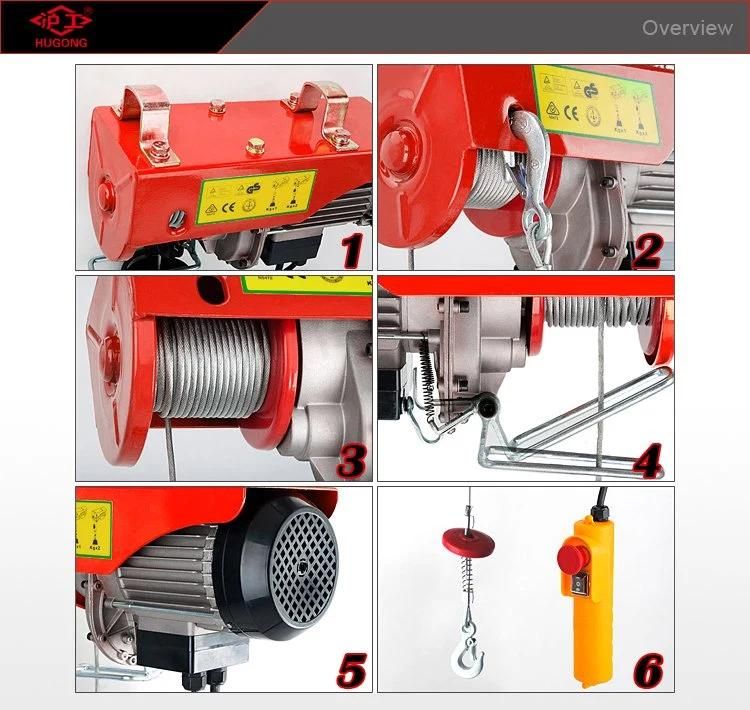

Advantage of mini electric wire rope hoist
Compact structure design and easy installUpper limit leverThe emergency stop switchTensile strength of wire rope:≥ 1870N/mm2Diameter of wire rope: 4.0mm
electric hoist lifts up to 100 kg with a single line or 200kg with a double line.
Includes 40-foot braided, anti-twist, high-carbon steel line cable.
Hoist features a 16 corded remote allowing the operator
This 110V electric hoist quickly and easily lifts or lowers loads with the push of a button.
Advantage of mini electric wire rope hoist
Compact structure design and easy installUpper limit leverThe emergency stop switchTensile strength of wire rope:≥ 1870N/mm2Diameter of wire rope: 4.0mm
electric hoist lifts up to 100 kg with a single line or 200kg with a double line.
Includes 40-foot braided, anti-twist, high-carbon steel line cable.
Hoist features a 16 corded remote allowing the operator
This 110V electric hoist quickly and easily lifts or lowers loads with the push of a button.
