3.9 Meters 240kg Industrial Hydraulic Liting Table Mini Self Propelled Scissor Lift
Chenlift (Suzhou) Machinery Co., Ltd.- After-sales Service：Can Post Spare Parts Within 1 Week
- Warranty：One Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Middle-Level
- Moves：Self-propelled
Base Info
- Model NO.：MX390R
- Driven Type：DC
- Running Mode：Moving
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Max Platform Height：3.9 M
- Max Working Height：5.9 M
- Load Capacity：240 Kg
- Platform Size：1.15* 0.70m
- Platform Extension Length：Optional Configuration
- Lift Motor：24V 0.8 Kw,24V 0.3 Kw
- Ground Clearance( Stowed/Raised)：0.05 M
- Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
- Specification：1.30* 0.76*1.52 m
- Trademark：CHEN LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：3000 Units Per Year
Description
Basic Info.
Model NO. MX390R Driven Type DC Running Mode Moving Feature Explosion-Proof Certification CE, ISO 9001 Max Platform Height 3.9 M Max Working Height 5.9 M Load Capacity 240 Kg Platform Size 1.15* 0.70m Platform Extension Length Optional Configuration Lift Motor 24V 0.8 Kw/24V 0.3 Kw Ground Clearance( Stowed/Raised) 0.05 M Transport Package Wrapped with Film, Packed in a Pallet/ Wooden Case Specification 1.30* 0.76*1.52 m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 3000 Units Per YearProduct Description
Mini Self-Propelled Scissor Lift for Aerial Work Mini Self Propelled Scissor Lift is widely used in warehouse, supermarket and more (the place with narrow space) becuase of its small size. The simple structure make it much easier to operate and maintenance.It moves and lifts all by battery power. Operator on platform can control lifting, moving, turning and all movement.

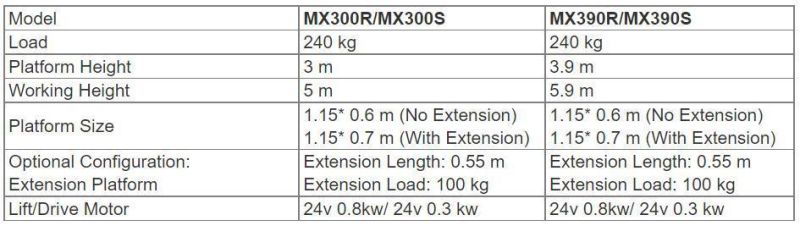

Specification

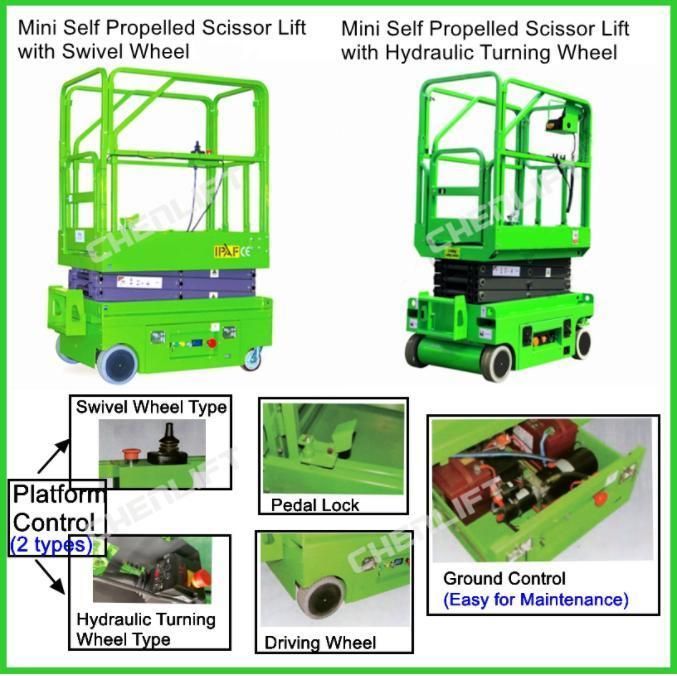

Details

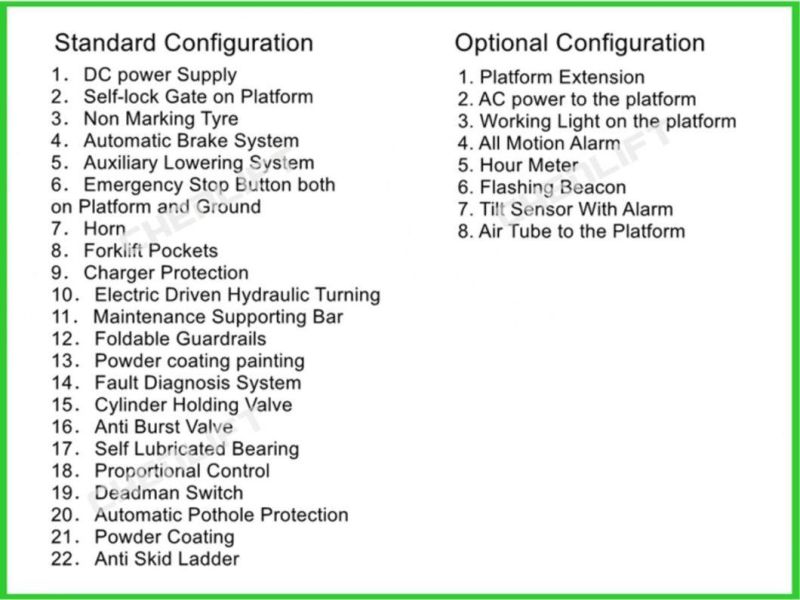

Configuration
Our Company
Chenlift (Suzhou) Machinery Co Ltd. is a Suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application.
We have established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa
Certificates
Factory Equipment
Client & Exhibition

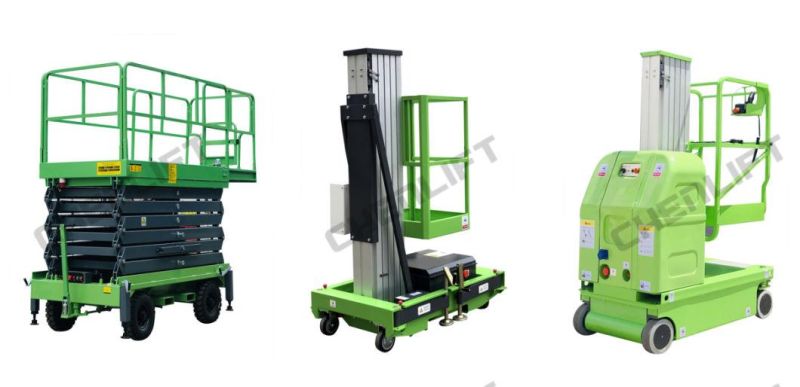

Other Related Products
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommended to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Operation video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
