• Model NO.：DY-Winch
• Rated Speed：5-7.5m,Min
• Transport Package：Wooden Case
• Specification：CCS. CE. BV. EC
• Trademark：Deyuan
• Origin：China
• Production Capacity：500set,Month

Basic Info.

Model NO. DY-Winch Rated Speed 5-7.5m/Min Transport Package Wooden Case Specification CCS. CE. BV. EC Trademark Deyuan Origin China Production Capacity 500set/Month

Product Description

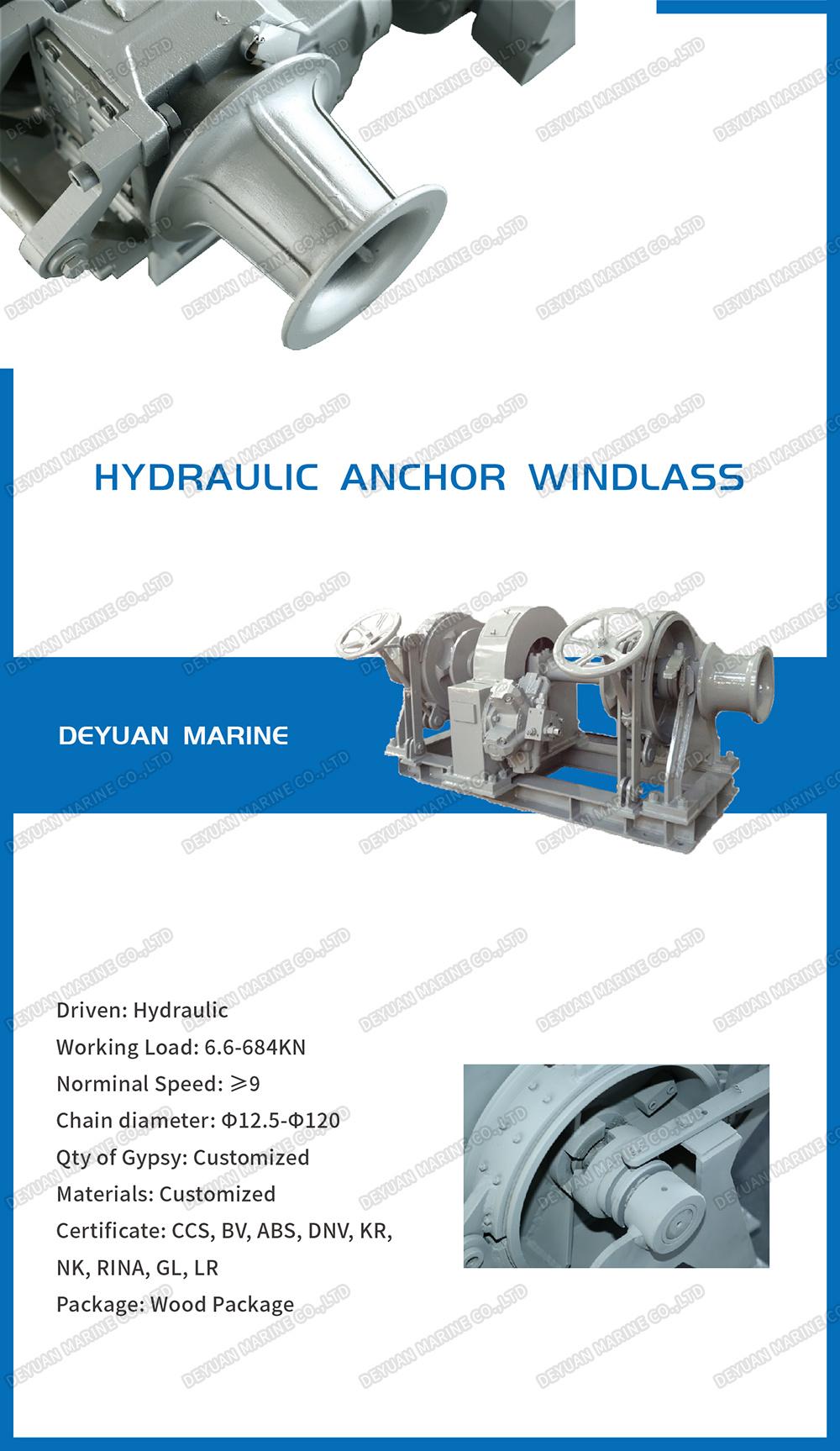

Marine Hydraulic Combined Single Gypsy Anchor Windlass Winches

Marine Anchor Windlass:
Marine Anchor windlass is a machine that was designed to raise and lower the anchor by means of anchor chain.Horizontal anchor windlass and vertical anchor windlass are available, we can offer maximum ø142 gypsy. Windlass makes use of an integral gearbox and motor assembly, all typically located above deck,with a horizontal shaft through the unit and wheels for chain and/or rope on either side. Marine electric anchor windlass,manual anchor windlass, horizontal anchor windlass for sale, combined ship anchor windlass,Marine Anchor windlass with stainless steel for yatch also can be provided,and all anchor windlass are with ABS, LR, DNV, BV, RINA, BKI etc certificate.

Anchor Windlass Features:
1) Drive: Electric / hydraulic
2) Configuration: Single in vertical / horizontal arrangement / double Gypsies in horizontal
3) Chain size: 19 mm to 50 mm
4) Chain speed: Complying with ISO requirements
5) Clutch: Manually operated dog clutch
6) Brake: Manually and hydraulic operated band brake
