• Model NO.：SJY500A-12
• Certification：CE
• Transport Package：Nude Package
• Trademark：Amitycare
• Origin：China Jiangsu
• HS Code：8427209000
• Production Capacity：80 Pieces,Year

Model No.

Capacity(kgs)

Lift Height(mm)

Lift Motor(kw)

(L×W×H)OverallSize(mm)

Net Weight(kgs)

SJY300A-4

300

4000

3

21200*970*850

440

SJY300A-6

300

6000

4

2350*1120*1150

770

SJY300A-8

300

8000

4

2350*1120*1400

850

SJY300A-10

300

10000

6

2500*1150*1450

1540

SJY300A-11

300

11000

6

2750*1400*1550

1780

SJY300A-12

300

12000

6

3000*1550*1700

2070

SJY300A-14

300

14000

7

3000*1550*1850

2580

SJY200A-16

200

16000

7

3350*1700*2200

3090

SJY500A-6

500

6000

4

2350*1120*1150

860

SJY500A-8

500

8000

4

2350*1120*1400

880

SJY500A-10

500

10000

6

2500*1150*1450

1820

SJY500A-12

500

12000

6

3000*1550*1900

2960

SJY1000A-6

1000

6000

4

2350*1120*1150

855

SJY1000A-7

1000

7000

4

2350*1120*1400

908

SJY1000A-8

1000

8000

4

2350*1120*1400

1180

SJY1000A-9

1000

9000

6

3000*1650*1900

1970

SJY1000A-10

1000

10000

6

3000*1650*1900

2580

SJY1000A-11

1000

11000

6

3000*1650*1900

3350

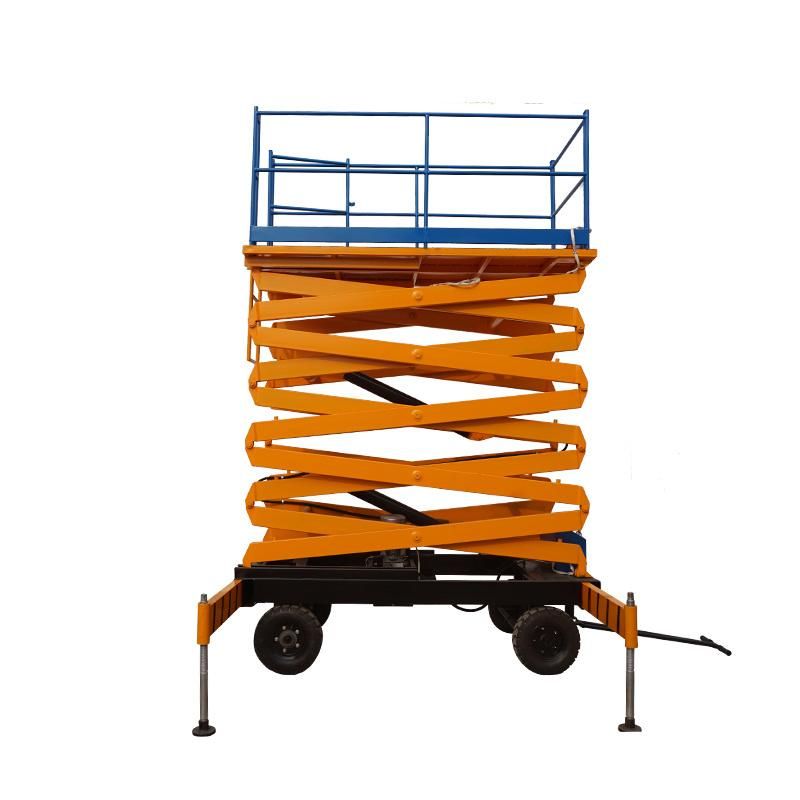

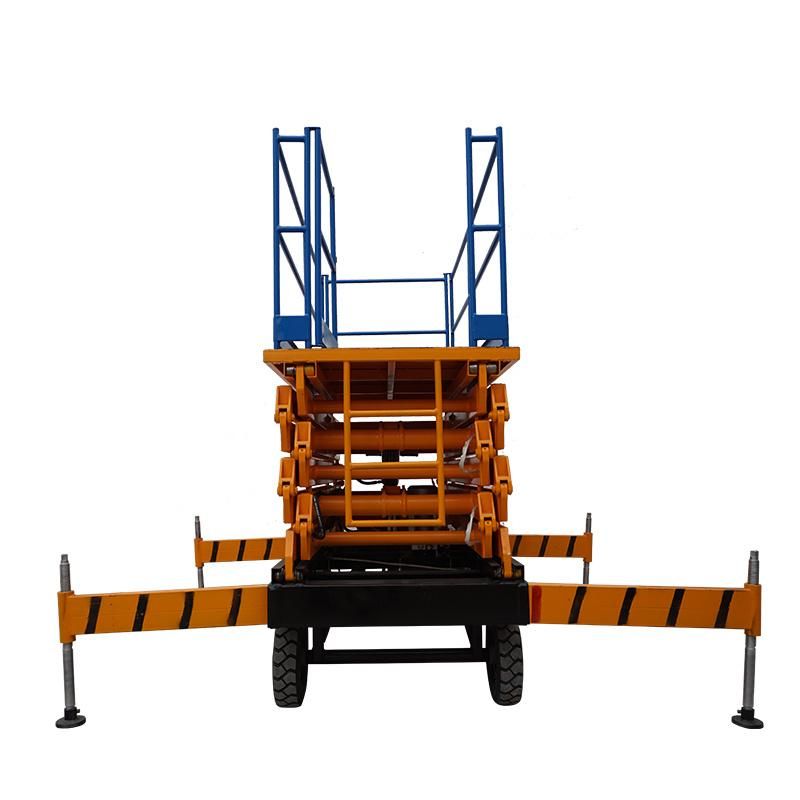

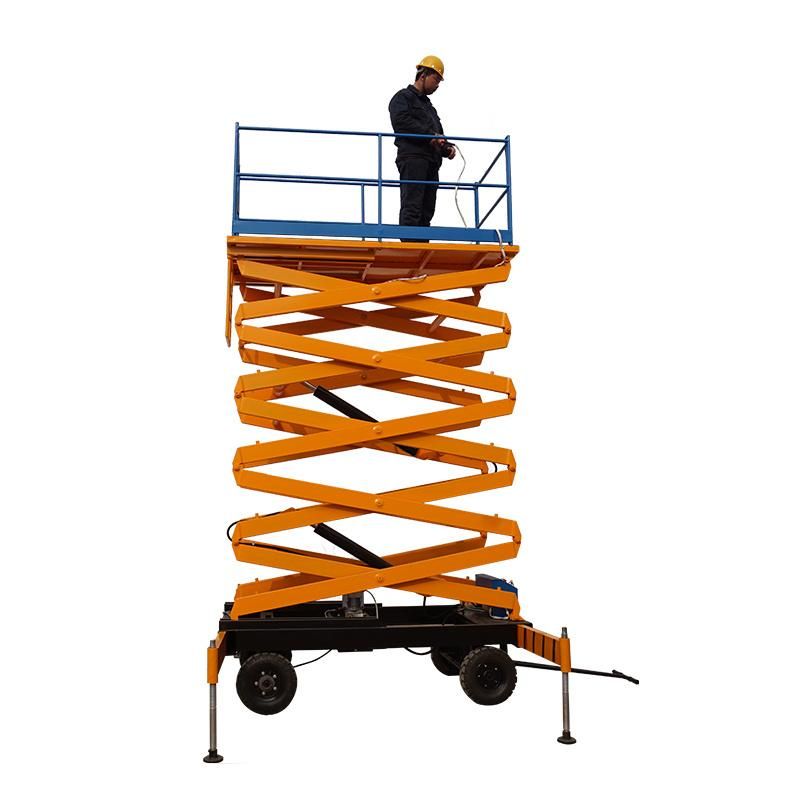

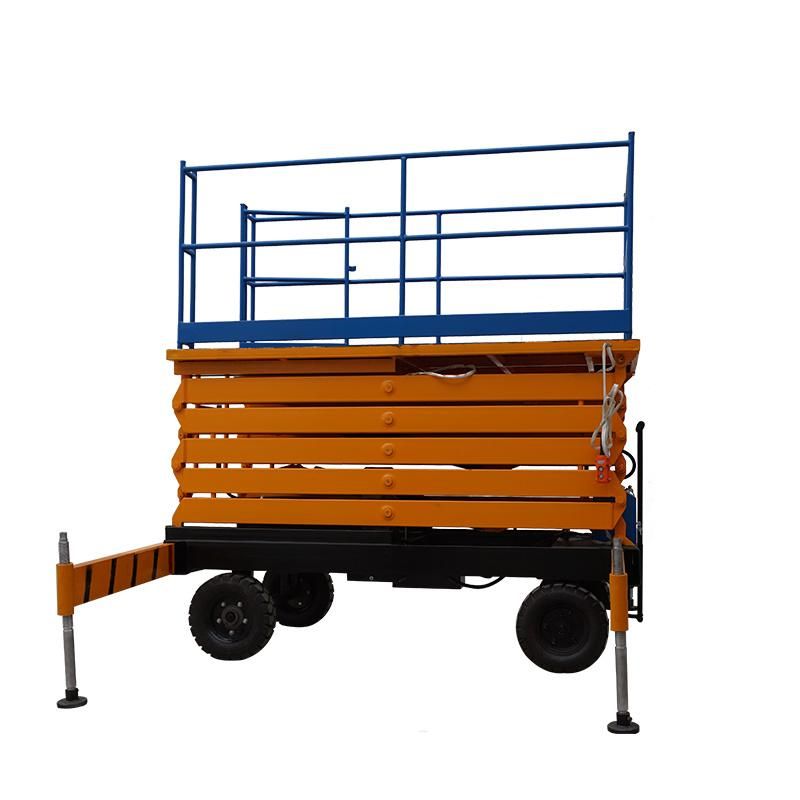

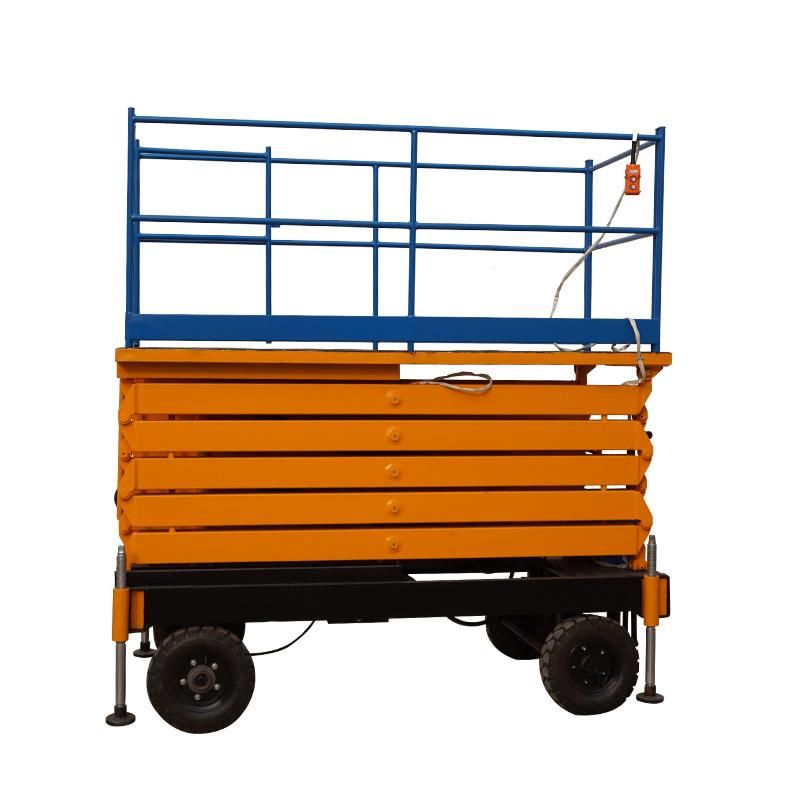

1:Scissor Lift Platform (Battery-powered Driving), driving controlled by operator on floor, vertical lifting

    up and lowering down controlled on platform.

2:24V driving system, self-propelled system composed by battery, electric controller, etc. No need to pull

   or push the platform manually to drive, less labor strength to operator.

3:Capacity 300kgs platform lift up 4-16m, capacity 500kgs platform lift up 4-12m, capacity 1000kgs

   platform lift up 6-11m.

4:380v50hz3P electric power, different country platform could be equipped with matching device, making

   sure local power could be used on platform.

5:It could be widely used to mount advertisements sign, panel wall, indoor and outdoor mechanical device

   , machinery maintenance, building maintenance, etc.
