• Model NO.：Zt34j
• Driven Type：Rack&Pinion
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Work Height：15.80m
• Platform Height：13.80m
• Horizontal Outreach：7.70m
• up and Over Height：7.55m
• a - Stowed Length：6.57m
• Wheelbase：2.36m
• Transport Package：Nude Package
• Specification：2276*1120*1254 mm
• Trademark：Maxizm
• Origin：China
• HS Code：8429510000
• Production Capacity：1000 Units,Year

Basic Info.

Model NO. Zt34j Driven Type Rack&Pinion Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Work Height 15.80m Platform Height 13.80m Horizontal Outreach 7.70m up and Over Height 7.55m a - Stowed Length 6.57m Wheelbase 2.36m Transport Package Nude Package Specification 2276*1120*1254 mm Trademark Maxizm Origin China HS Code 8429510000 Production Capacity 1000 Units/Year

Product Description

Rachel Gao

Maxizm Construction Machinery (Qingdao) Co., Ltd.
Add: Suite 1811, Block A, Yihe International, No. 10 Hong Kong Middle Road, Qingdao, China.

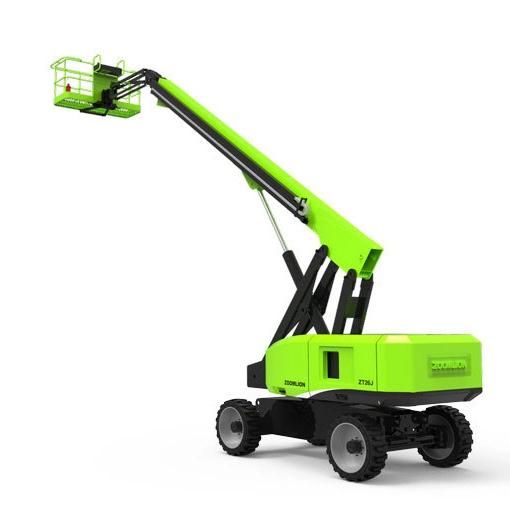

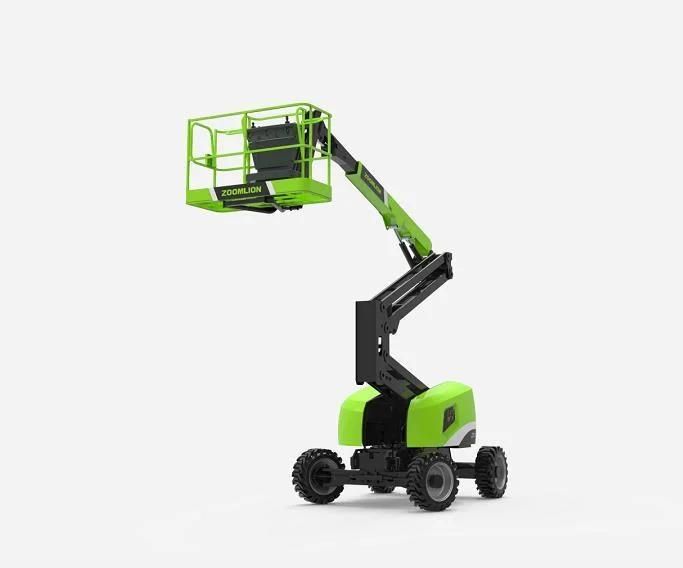

 34m Height Platform Zoomlion Aerial Work Platform Zt34j

ZT34J is a newly developed aerial work platform. This unit offers greater vertical height and lift capacity than similar products. With a vertical reach of 34 m and a horizontal reach of 23.5 m, this boom offers a dual lift capacity of 300/454 kg and 15 safety protection measures  and is equipped with PLC control and CAN bus communication technology. Automatic fault detection and alarm display function offer convenient maintenance.


Model	ZT34J	ZT26J	ZT20J
Platform Capacity (Unrestricted/Restricted)	300/454kg	300kg/454kg	300kg/454kg
Drive Speed (Working)	5.5km/h	5.5km/h	6.0km/h
Gradeability	45%(24°)	45%   (24°)	45%   (24°)
Turning Radius (Inside)	2.80m	3.66m	2.4m
Turning Radius (Outside)	5.70m	6.86m	5.4m
Turntable Swing	360°continuous	360°continuous	360°continuous
Platform Rotation	±90°	±90°	±90°
Tail Swing	1.88m	1.60m	1.45m
Jib (Range of Articulation)	130°(-55°~75°)	130°(-55°~75°)	135°(-60°~75°)
Max. Working Slope	3°	3°	3°
