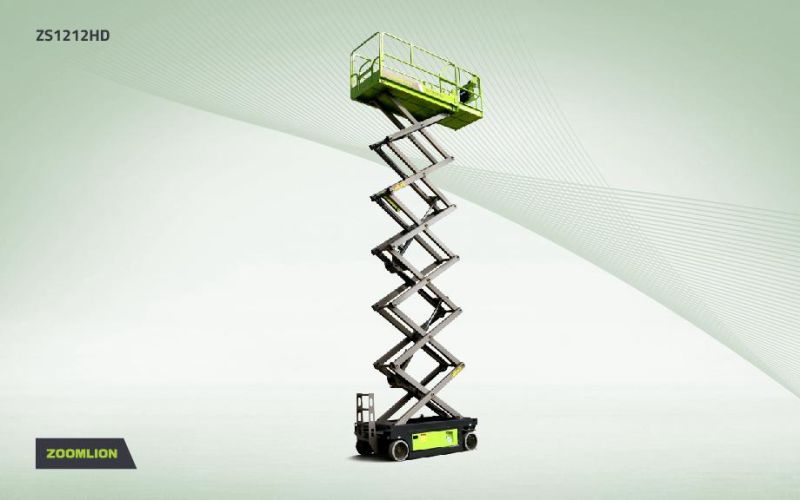

• Model NO.：Zs1212HD
• Driven Type：Rack&Pinion
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Work Height：13.8m
• Platform Height-Elevated：11.8m
• Platform Height-Stowed：1.46m
• Overall Length：2.89m
• Wheelbase：1.49m
• Transport Package：Nude Package
• Specification：1.46m*2.30m*1.12m
• Trademark：Maxizm
• Origin：China
• HS Code：8706004000
• Production Capacity：1000 Units,Year

ModelZS1414HDZS1212HDZS1012HDZS0808HDZS0608HDZS0607HDSizeWork Height15.7m13.80m11.80m10.00m8.00m7.87mA - Platform   Height-Elevated13.7m11.80m9.80m8.00m6.00m5.87mB - Platform   Height-Stowed1.53m1.46m1.33m1.20m1.07m1.05mC - Platform   Length2.67m2.30m2.30m2.30m2.30m1.65mD - Platform Width1.12m1.12m1.12m0.81m0.81m0.74mPlatform Extension0.9m0.91m0.91m0.91m0.91m0.91mE - Overall Height (Rails Up)2.65m2.59m2.46m2.35m2.22m2.20mOverall Height (Rails Down)2.1m2.05m1.92m1.85m1.72m1.79mF - Overall Length2.87m2.49m2.49m2.49m2.49m1.85mG - Overall Width1.4m1.15m1.15m0.81m0.81m0.76mH - Wheelbase2.22m1.85m1.85m1.85m1.85m1.37mI - Ground Clearance (Stowed)0.11m0.11m0.11m0.11m0.11m0.06mJ - Ground   Clearance (Raised)0.02m0.02m0.02m0.02m0.02m0.016mPerformancePlatform Capacity260kg350kg350kg230kg380kg230kgCapacity on Deck Extension113kg113kg113kg113kg113kg113kgMax. Number of Workers232222Drive Speed (Stowed)3.5km/h3.5km/h3.5km/h3.5km/h3.5km/h3.5km/hDrive Speed (Raised)0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h0.8km/hTurning Radius (Inside)0.1m0.1m0.1m0.1m0.1m0.1mTurning Radius (Outside)2.6m2.2m2.2m2.1m2.1m1.6mUp/Down Time88/60s62s/42s60s/35s31s/40s28s/35s20s/24sGradeability25%25%(14°)25%(14°)25%(14°)30%(17°)25%(14°)Max. Working Slope (Lateral/Vertical)1.5°/3°1.5°/3°1.5°/3°1.5°/3°1.5°/3°1.5°/3°
