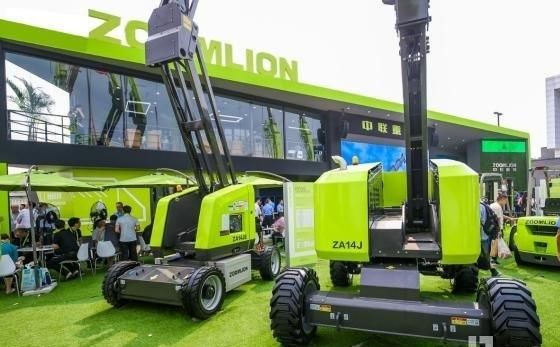

• Model NO.：ZA14J
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Work Height：15.80m
• Platform Height：13.80m
• Horizontal Outreach：7.70m
• up and Over Height：7.55m
• a - Stowed Length：6.57m
• Wheelbase：2.36m
• Transport Package：Nude Package
• Specification：2276*1120*1254 mm
• Trademark：Maxizm
• Origin：China
• HS Code：8429510000
• Production Capacity：1000 Units,Year

Model ZA14JESizeWork Height16mPlatform Height14mHorizontal Outreach7.50mUp and Over Height7.74mA - Stowed Length6.6mB - Stowed Width1.75mC - Stowed Height2mD - Platform Length1.52mE - Platform Width0.76mF - Wheelbase2.05mG - Ground Clearance200mmPerformancePlatform Capacity230kgDrive Speed6.1km/hGradeability30%(17°)Axles OscillationTurning Radius (Inside)0.79mTurning Radius (Outside)3.15mSwing360°   continuousPlatform Rotation±90°H-Tail Swing0mMax. Working Slope2/4°Max. Wind Speed12.5m/sPowerBattery24×2V/320AhCharger48V/60ADrive MotorAC 32VLift MotorDC 48VAuxiliary PowerManual PumpHydraulic Tank Capacity30LTireType240/55D17.5 Foam-filled TiresWeightGross6800kg
