Double Chain Block Electric Hoist for Sale
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, Electric Chain Hoist
- Type：Electric Hoist
- Sling Type：Chain
- Lift Speed：6.8m,Min
- Maximum Lifting Height：3m, 6m, 9m, 12m
- Chain Falls：2
Base Info
- Model NO.：HSY02
- Certification：CE, ISO9001:2000, GS
- Condition：New
- Color：Orange
- Product：Double Chain Block Electric Hoist for Sale
- Coller of Electric Chain Hoist：Yellow, Red, Orange or as Your Order
- Speed of Electric Chain Hoist：6.8m,Min
- Power Supply：380V 3-Phase or as Your Order
- Motor Power：1.1-1.5kw
- Control Voltage of Electric Chain Hoist：24V, 36V, 48V or as Your Require
- Lifting Height：3m, 6m, 9m, 12m
- Chain of Electric Chain Hoist：Single or Double
- Surface Treatment：PVC Coated
- Travelling Speed：11m,Min
- Transport Package：Mood Box Then in Pallet
- Specification：HSY 0.5-01L
- Trademark：HUGONG
- Origin：Shanghai, China
- HS Code：8425110000
- Production Capacity：20 Pieces Electric Hoist ,Day
Description

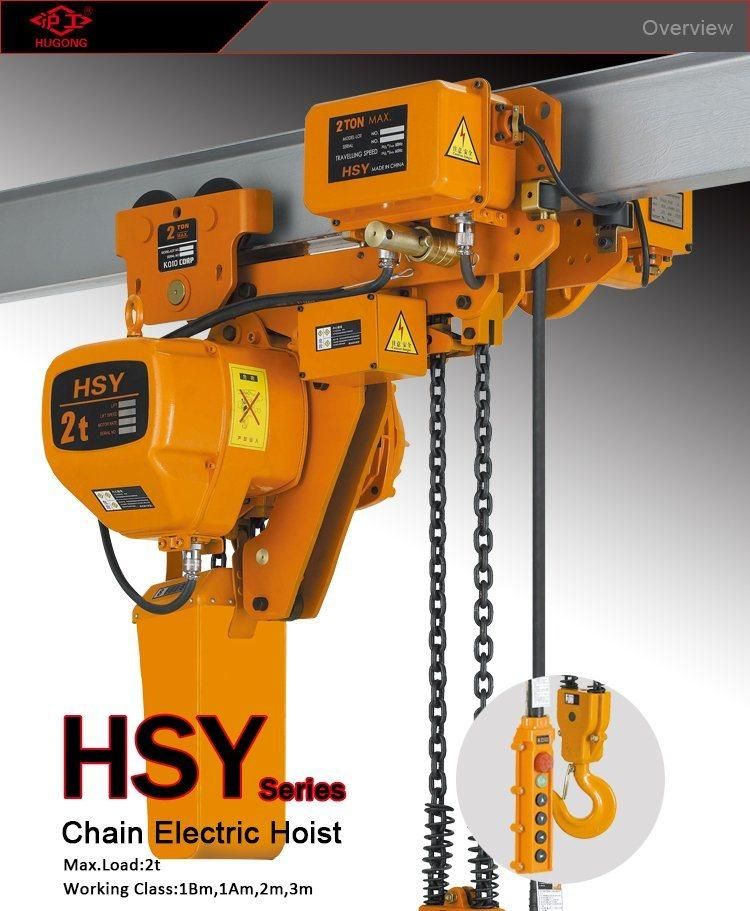

Single Speed 1 Ton Electric Chain Hoist with Motorized Trolley

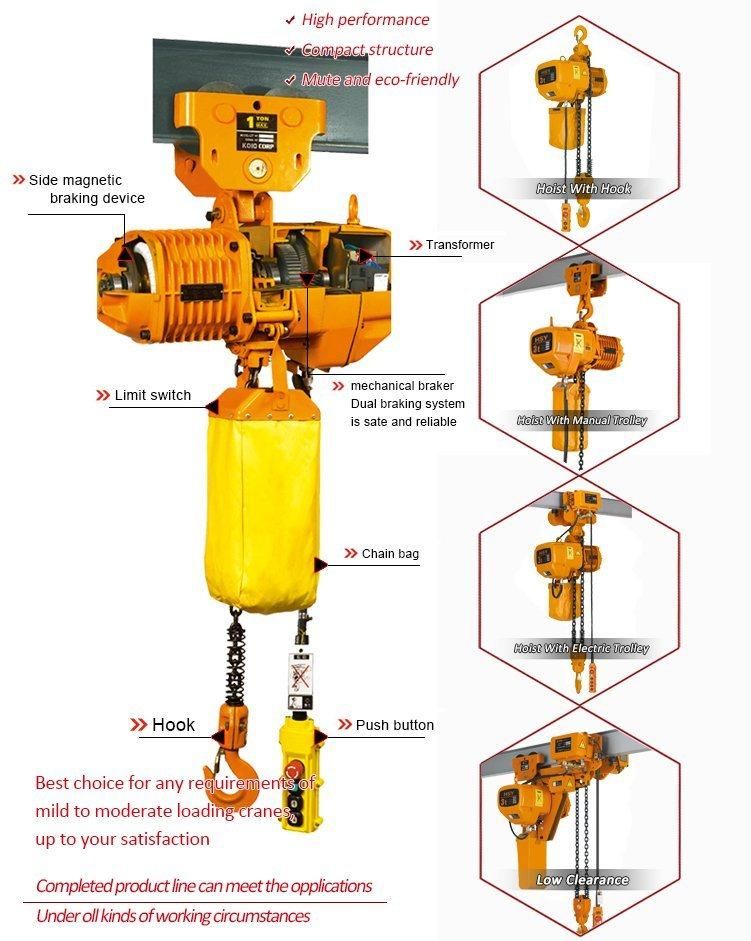

1) Compact and high efficient motor, low power consumption Chain Hoist
2) Hoist body pressing steel structure, high strength body, light and compact electric hoist
3) HSY electric chain hoist has most tensile safety hooks: Both the top and bottom hooks are made of high tensile alloy steel with special treatment. Hoist hook will not break and deform gradually under a sudden extra-load
4) Compact and beauty chain container: High strength plastic container has outstanding durability
5) Limit switch devices fitted at both top and bottom ends: Switch off power automatically to prevent load chain from running out
Shanghai Yiying Crane machinery Co.,ltd products in strict accordance with the national 3 packets, the quality of the products by the China People's Insurance Company (PICC), Please use it relieved.
1) Compact and high efficient motor, low power consumption Chain Hoist
2) Hoist body pressing steel structure, high strength body, light and compact electric hoist
3) HSY electric chain hoist has most tensile safety hooks: Both the top and bottom hooks are made of high tensile alloy steel with special treatment. Hoist hook will not break and deform gradually under a sudden extra-load
4) Compact and beauty chain container: High strength plastic container has outstanding durability
5) Limit switch devices fitted at both top and bottom ends: Switch off power automatically to prevent load chain from running out
Shanghai Yiying Crane machinery Co.,ltd products in strict accordance with the national 3 packets, the quality of the products by the China People's Insurance Company (PICC), Please use it relieved.
| Model HSY | Capacity TON | Lifting Height M | Lifting Speed M/MIN | Lifting motor | Drive motor | I beam | |||||||||
| Power KW | Rotational Speed R/MIN | Phase | Voltage V | Frequency HZ/S | Power KW | Rotational Speed R/MIN | Running speed M/MIN | Phase | Voltage V | Frequency HZ/S | |||||
01-01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
02-02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 380/220 | 50/60 | 0.4 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
2.5-01 | 2.5 | 3/9 | 6.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
03-02 | 3 | 3/9 | 5.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 82-153 |
05-02 | 5 | 3/9 | 2.8 | 3.0 | 1440 | 3 | 380/220 | 50/60 | 0.75 | 1440 | 11/21 | 3 | 380/220 | 50/60 | 110-178 |
