Overhead Crane Construction Hoist Electric Hoist with Trolley
Shanghai Yiying Crane Machinery Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, Electric Rope Hoist
- Type：Electric Hoist
- Sling Type：Wire Rope
- Lift Speed：8 8,0.8
- Maximum Lifting Height：30m
- Chain Falls：1,2 Can Be Paoduce
Base Info
- Model NO.：MD1 CD1
- Certification：CE, ISO9001:2000, GS
- Condition：New
- Color：Blue
- Product：Overhead Crane Construction Hoist Electric Hoist W
- Type of Motor：100% Pure Copper for The Motor
- Material of Construction Hoist：Steel
- Rated Volt of Construction Hoist：380V or as Your Require
- Rated Lifting：0.5t, 1t, 2t, 3t, 5t, 10t
- Lifting Height：3-30m or as Your Order
- Wire Rope Type of Construction Hoist：6*37-4.8-180
- Surface Treatment：PVC Coated
- Switch of Construction Hoist：Remote Control
- Power Plug：as Your Require
- Transport Package：Carton Box ,Wooden Box Then in Pallet
- Specification：MD1
- Trademark：HUGONG
- Origin：Shanghai China
- HS Code：8425110000
- Production Capacity：About 300pieces Electrical Hoist,Month
Description
Motor
Light weight and small volume of high-performance motor. Rotating speed can be up to 3000r.m.p. High starting torque and high energy efficiency. Sustained rate of electric connection reaches up to 60%, which can meet the demand for high frequency handling.
Feature of our construction electric hoist:
1.100% pure copper for the motor.
2.The longer stator and rotor make the motor has enough Power.
3.The core components of motor.
4.With urgent stop switch
5.With up limit system
6.With down limit system
More description of construction electric hoist
| Model | 0.25TON | 0.5 TON | 1TON | 2TON | 3TON | 5TON | 10TON |
| Capacity(t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Standard lift(m) | 3-9 | 6-12 | 6-30 | 6-30 | 6-30 | 6-30 | 6-90 |
| Lifting speed(m/min) | 8 8/0.8 | 8 8/0.8 | 8 8/0.8 | 8 8/0.8 | 8 8/0.8 | 7 7/0.7 | |
| Running speed | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) | 20(30) |
| Wire rope type | 6*37-4.8-180 | 6*37-7.4-180 | 6*37-11-155 | 6*37-4.8-180 | 6*37-13-170 | 6*37-15-200 | 6*37-17.5-200 |
| Motor power(kw) | 0.4 | 0.8 0.2/0.8 | 1.5 0.2/1.5 | 3 0.4/3 | 4.5 0.4/4.5 | 7.5 0.8/7.5 | 13 1.5/13 |
Advantage of construction electric hoist:
Compact structure design and easy install
Upper limit lever
The emergency stop switch
Tensile strength of wire rope:≥ 1870N/mm2
Diameter of wire rope: 4.0mm

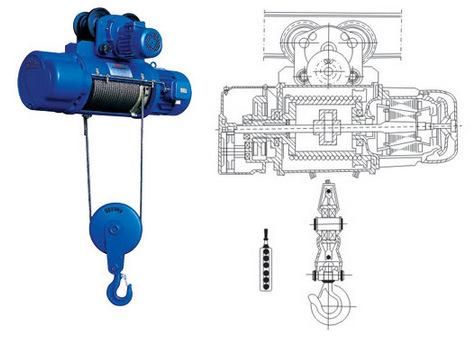

CD1(MD1)type,wire rope electric hoist is a kind of smaill lifting equipment .It can mounted on single beam overhead cranes.gantry cranes ,CD1(MD1)Type,electric hoist as only one normal speed which can satisfy normal application. It is widely used in factories,mines,haybours,wirehouses,cargo storage are and shops,essential in raising working efficiency and improving working conditions.
