CE Electric Wheelchair Ramp (EWR-L1)
Changzhou Xinder-Tech Electronics Co., Ltd.- Application：Low-Floor Bus
- Lift Mechanism：Electric
- Carrying Capacity：350kg
- Moves：Stationary
- Driven Type：Electric
- Running Mode：Stationary
Base Info
- Model NO.：EWR-L1
- Certification：CE
- Platform Size：1035mm*1008mm
- Own Weight：50kgs
- Loading Capacity：350kgs
- Rated Voltage of Motor：DC24V
- Time for Retraction or Extend：12~16s
- Max. Working Voltage of Motor：DC≤31V
- Max. Driving Current：10A
- Max. Working Height：300-380mm
- Net Width of Door：1010
- Transport Package：Wooden Case
- Specification：CE
- Trademark：Xinder
- Origin：Changzhou Jiangsu China
- HS Code：8428909090
- Production Capacity：500 Sets Per Month
Description
Basic Info.
Model NO. EWR-L1 Certification CE Platform Size 1035mm*1008mm Own Weight 50kgs Loading Capacity 350kgs Rated Voltage of Motor DC24V Time for Retraction or Extend 12~16s Max. Working Voltage of Motor DC≤31V Max. Driving Current 10A Max. Working Height 300-380mm Net Width of Door 1010 Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per MonthProduct Description
Introductions:

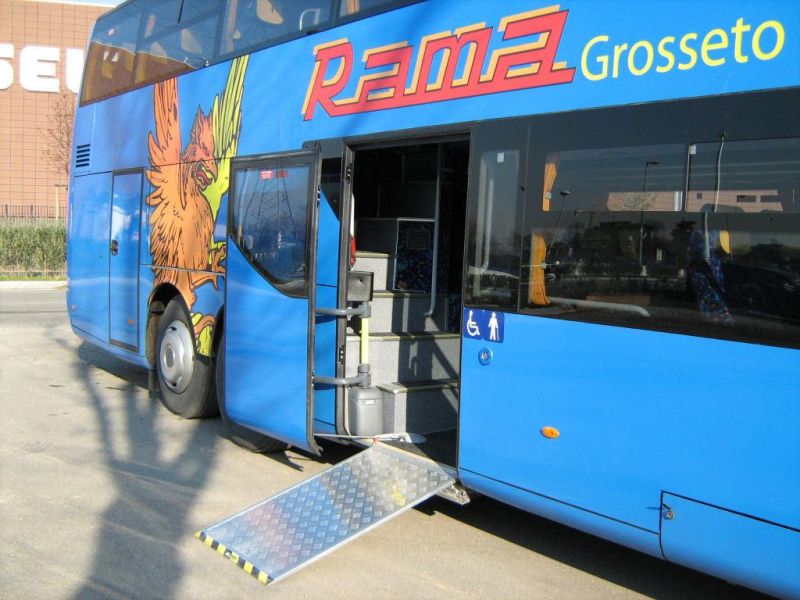

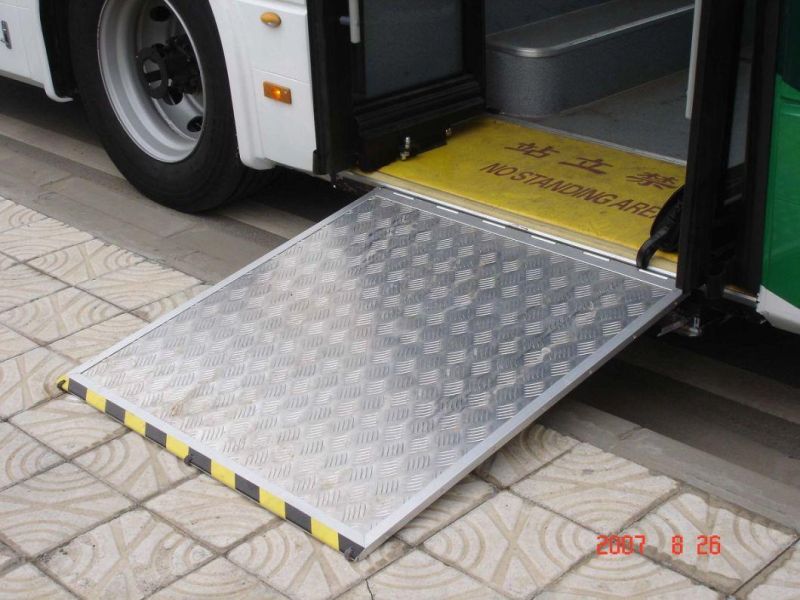

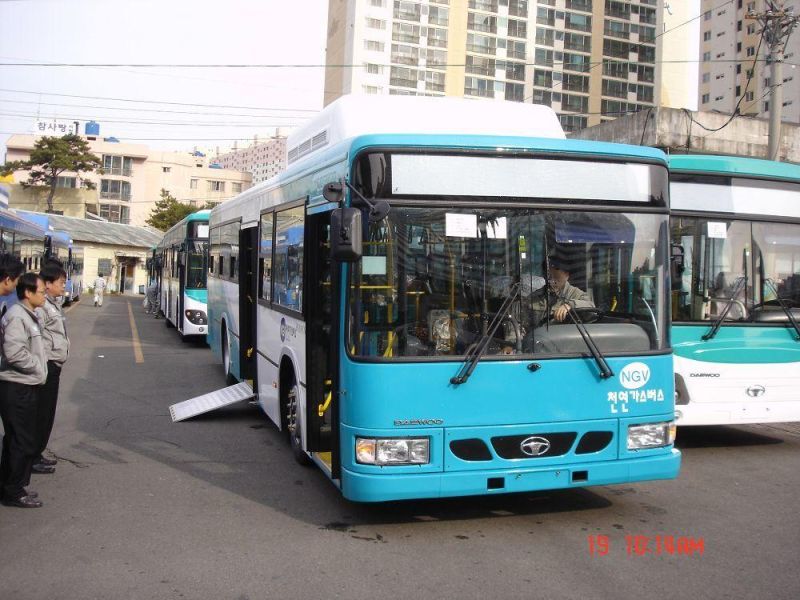

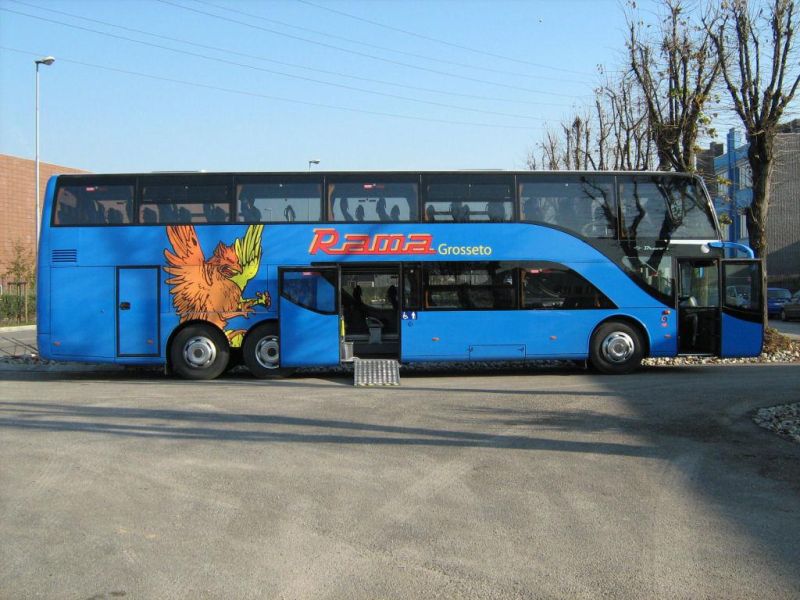

EWR-L series electric wheelchair ramp is designed for city bus to help a person to enter bus comfortably and easily while seated in a wheelchair.
It is installed under bus chassis, and it doesn't obstruct view, access and emergency exit.
It is driven by motor.
It is controlled by switch.
Main material is aluminum, which is light and with high corrosion resistance.
This ramp has got two patents.
Advantages:
doesn't obstruct view, access and emergency exit when not in use;
warning sound during working;
manual backup function;
door interlock function;
anti-skip platform;
ramp will stop when touch some barrier during extending out;
optional function of 15kg loading induction;
Technical Specifications:
Voltage: 24Vdc or 12Vdc;
Max. Driving Current: 10A
Power: 40W;
Max Loading Capacity: 350 Kg
Eliminate threshold drop: 60mm
| Model | Platform Net Size (A×B) | Overall Width (C) | Overall Height (D) | Overall Length (E) | Loading Capacity | Own Weight |
| EWR-L1 | 1025*1007 | 1130 mm | 95 mm | 1428 mm | 350 Kg | 50 Kg |
| EWR-L7-S | 1005*1007 | 1130 mm | 95 mm | 1408 mm | 350 kg | 50 kg |
