• Model NO.：WL0.25-4
• Feature：Explosion-Proof, Insulating
• Certification：CE
• Rated Loading Capacity：250kg
• Max. Lifting Height：8000mm
• Table Size：1400*900mm
• Control System：Both on The Platform and Ground
• Material：Stainless Steel
• Remote Control：Yes
• Emergency Stop：Manual Emergency Stop Valve
• Platform Safety：Underpan Sensor(Optional)
• Installation：on The Ground, No Pit
• Warranty：12 Months Apart From Man Made Faults
• Transport Package：Plywood Case
• Specification：CE, SGS
• Trademark：MORN
• Origin：Shandong China
• HS Code：8428909090
• Production Capacity：200 Units Per Month

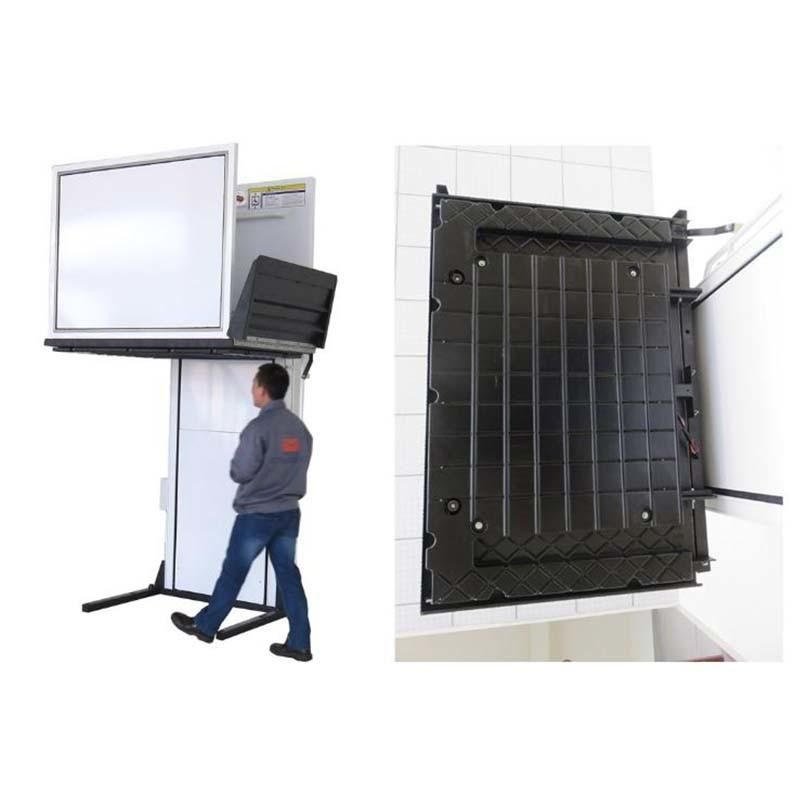

Safety sensor

Wheelchair lift stops running if bottom meet obstacle to protect people under platform.

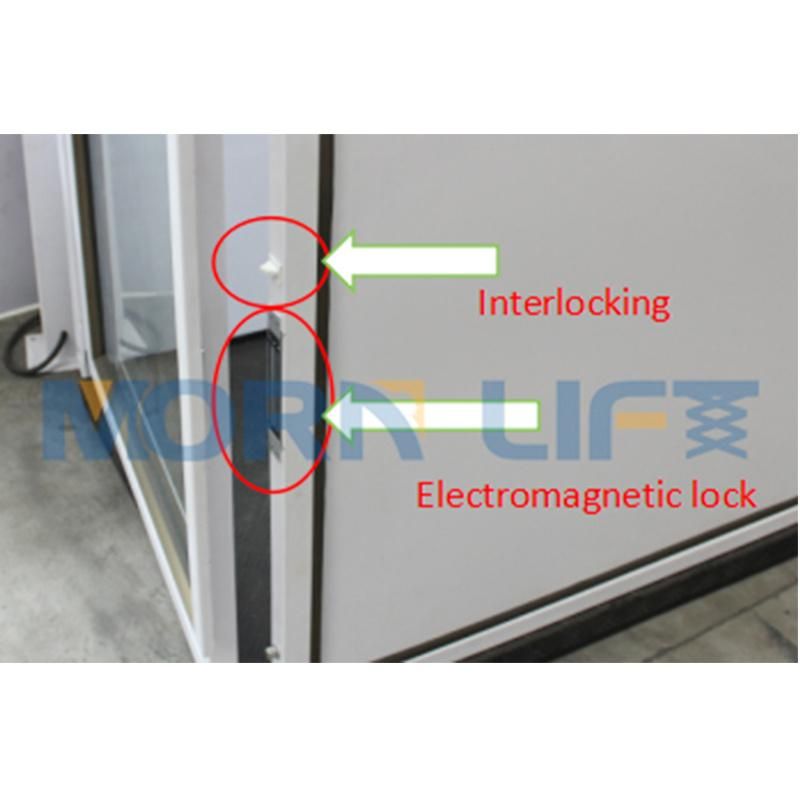

Electrical Interlock

To guarantee safety of carrier. Wheelchair lift stops lifting up or down when door is not closed.

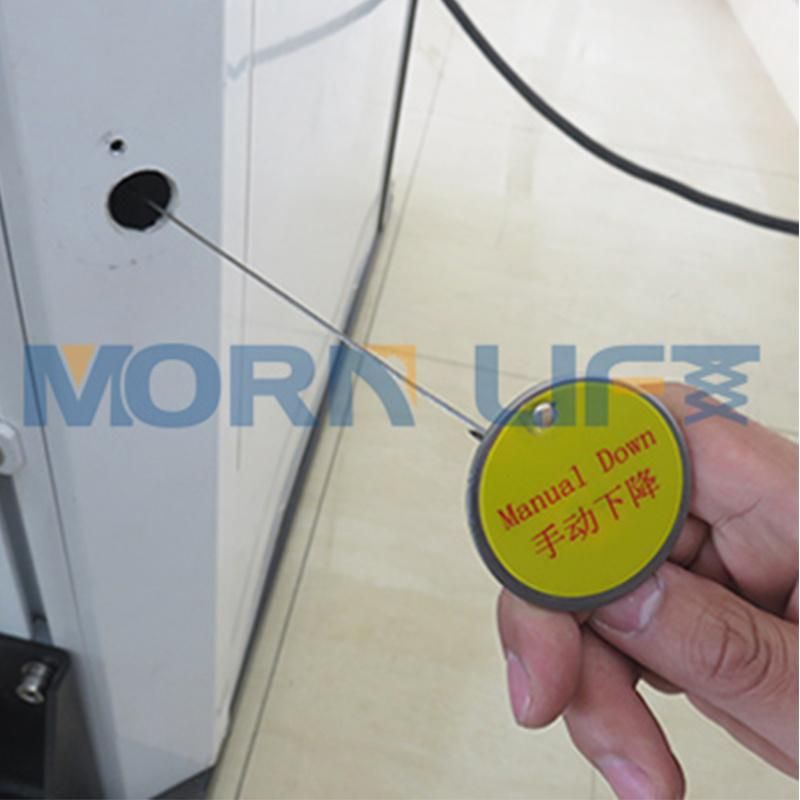

Manual Down

Pull out the switch to enable wheelchair lift fall down safely when when power cut suddenly.

Model List

Model	Lifting height	Load capacity	Platform size	Self weight	Manual Door
WL-1	1000mm	250kg	1430*900mm	350kg	Yes
WL-2	2000mm	250kg	1430*900mm	550kg	Yes
WL-3	3000mm	250kg	1430*900mm	780kg	Yes
WL-4	4000mm	250kg	1430*900mm	880kg	Yes
WL-5	5000mm	250kg	1430*900mm	1000kg	Yes
WL-6	6000MM	250kg	1430*900mm	1100kg	Yes

Packaging & Shipping

1. Film package to prevent humidity and rust.
2. Iron frame to keep lift stable in container.
3. Plywood to prevent lift from colliding. Convenient for forklift delivery.
