• Model NO.：FEWR
• Certification：CE
• Platform Size：920*850mm
• Deadweight：45kg
• Loading Capacity：350kg
• Material：Aluminum Board
• Driving Mode：Electric
• Test：100000 Times
• Volt：24V
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：8428909090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. FEWR Certification CE Platform Size 920*850mm Deadweight 45kg Loading Capacity 350kg Material Aluminum Board Driving Mode Electric Test 100000 Times Volt 24V Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per Month

Product Description

Introductions:

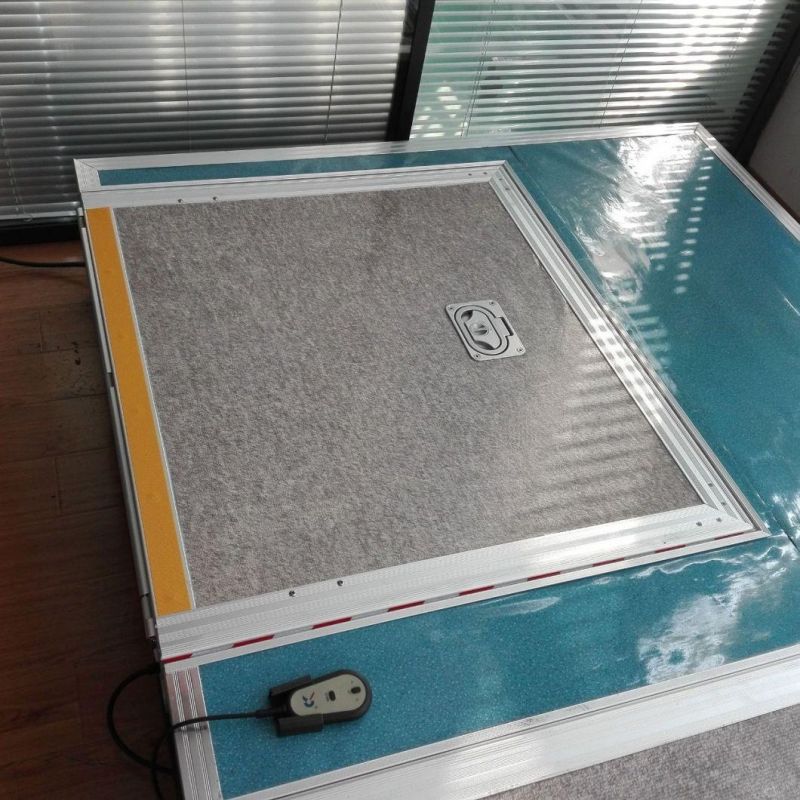

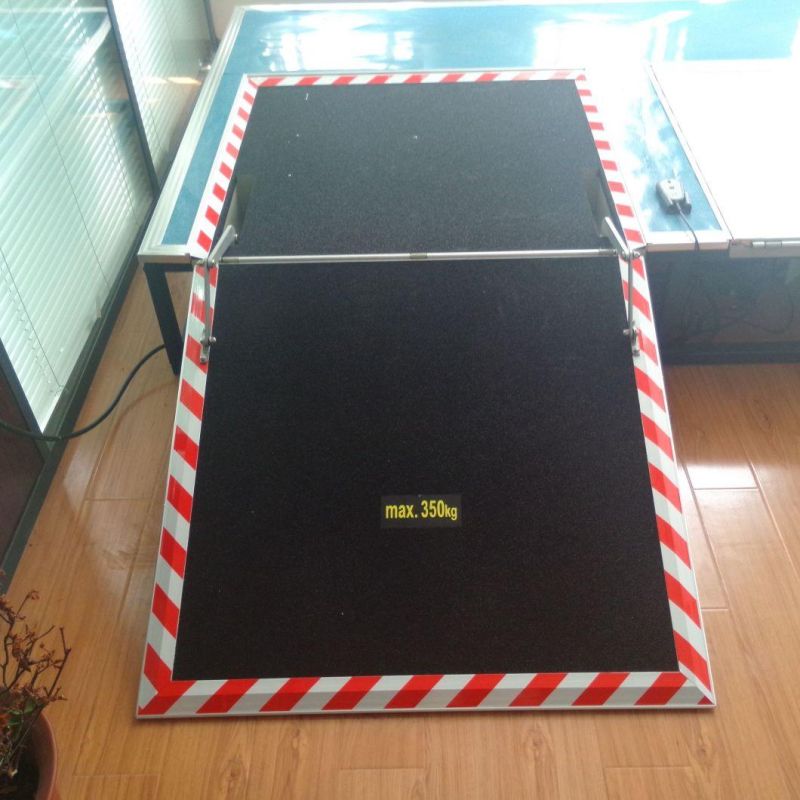

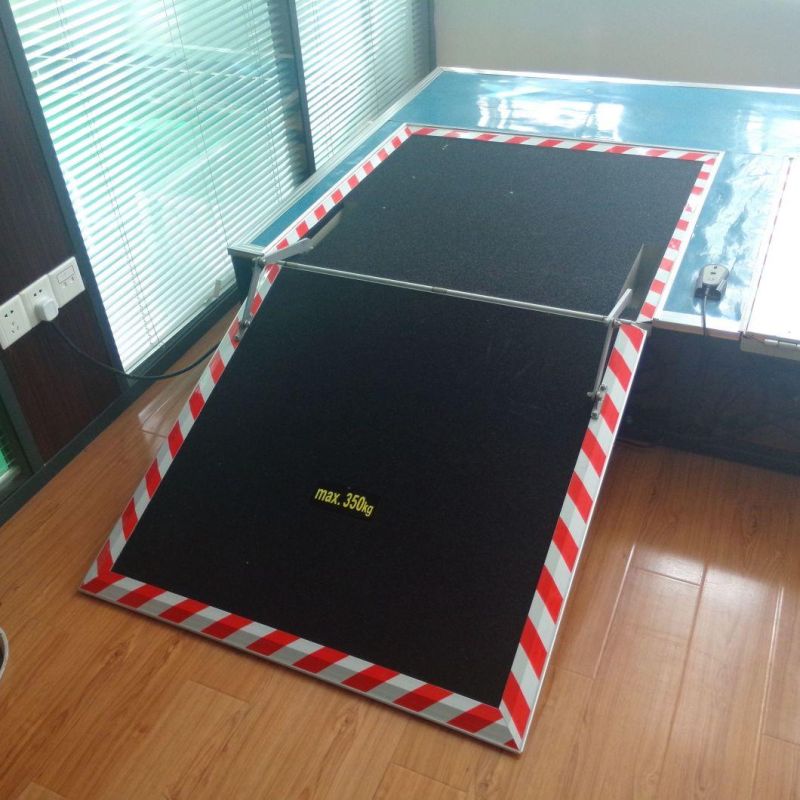

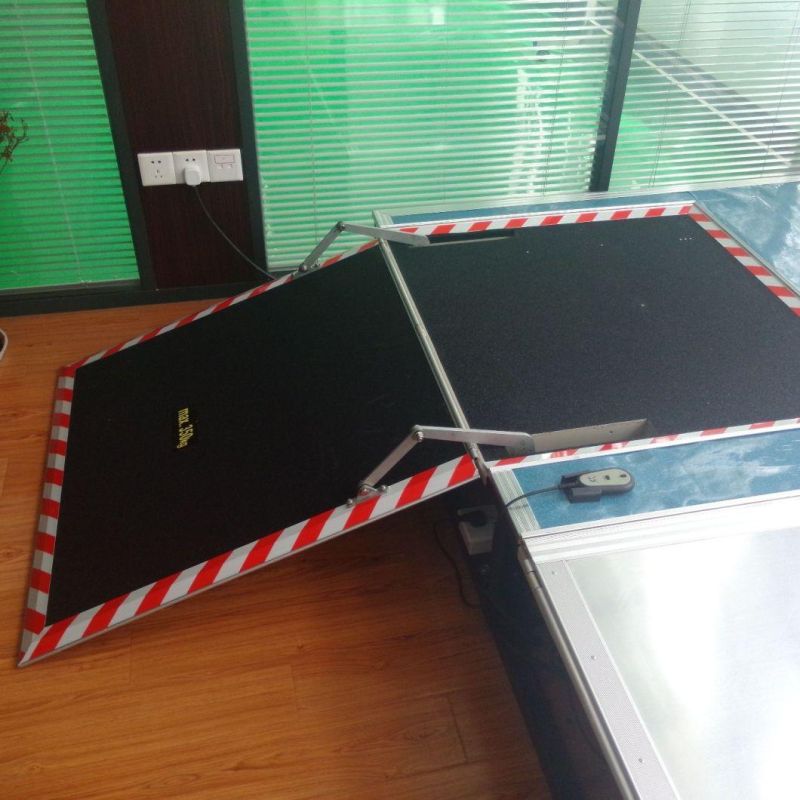

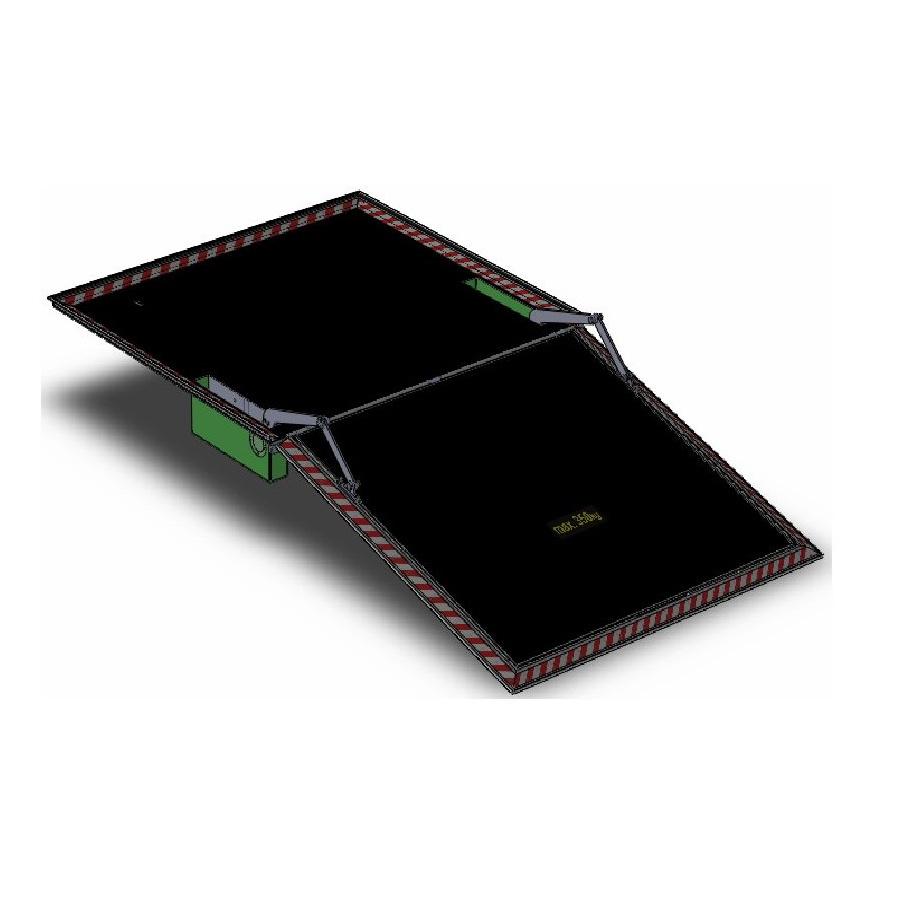

• FEWR folding electric wheelchair ramp is designed for low-floor city bus to help a person to enter bus comfortably and easily while seated in a wheelchair.

• It is installed on bus floor and flat with floor when not in use.

• It doesn't obstruct view, access and emergency exit.

• It is driven by motor, the voltage can be 12Vdc or 24Vdc.

• It is controlled by switch.

• Main material is aluminum, which is light and with high corrosion resistance.



Advantages:

• doesn't obstruct view, access and emergency exit when not in use;

• warning sound during working;

• manual backup function;

• door interlock function;

• anti-skip platform;



Technical Specifications:

• Voltage:   24Vdc or 12Vdc;

• Power: 42W;

• Max Loading Capacity: 350 Kg

Model	Platform Size	Base Width	Base Length	Overall Height	Overall Length
FEWR-1	920*850mm	932mm	848mm	149mm	872mm
FEWR-2	920*880mm	932mm	878mm	149mm	902mmm
