Hydraulic Vertical Wheelchair Lift for Old, Disabled, Public
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Special Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：WL0.25-3
- Feature：Explosion-Proof, Insulating
- Certification：CE
- Rated Loading Capacity：250kg
- Max. Lifting Height：3000mm
- Table Size：1400*900mm
- Control System：Both on The Platform and Ground
- Material：Stainless Steel
- Remote Control：Yes
- Emergency Stop：Manual Emergency Stop Valve
- Platform Safety：Underpan Sensor(Optional)
- Installation：on The Ground, No Pit
- Warranty：12 Months Apart From Man Made Faults
- Transport Package：Plywood Case
- Specification：CE, SGS
- Trademark：MORN
- Origin：Shandong China
- HS Code：8428909090
- Production Capacity：200 Units Per Month
Description

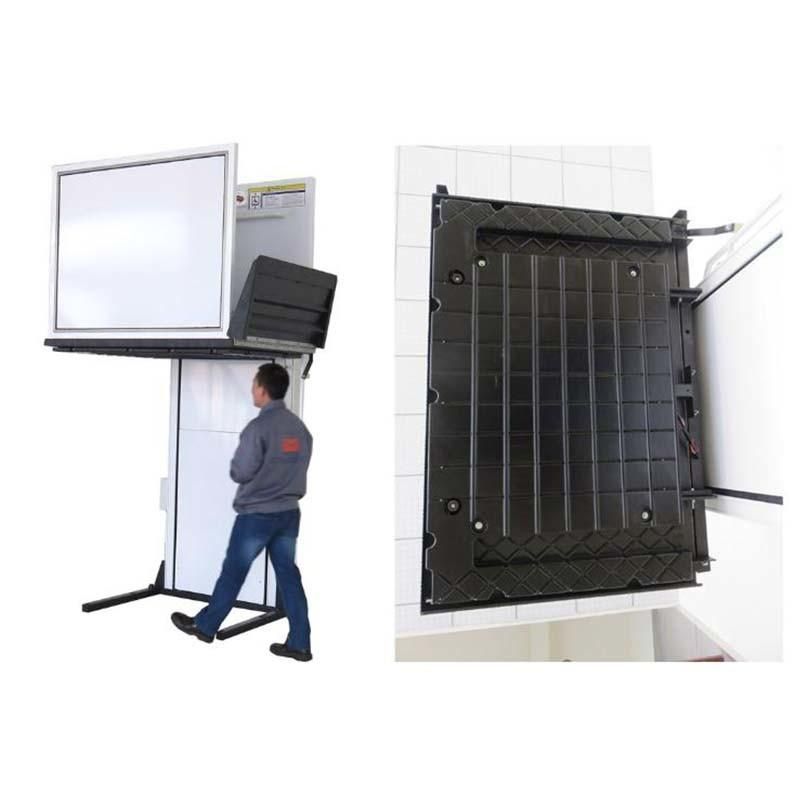

Safety sensor
Wheelchair lift stops running if bottom meet obstacle to protect people under platform.

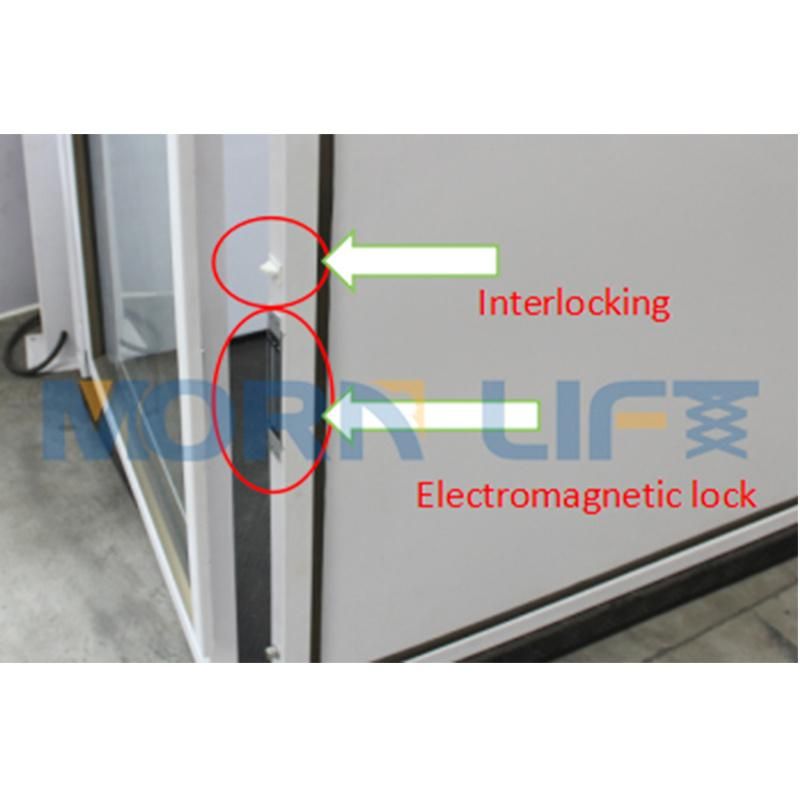

Electrical Interlock
To guarantee safety of carrier. Wheelchair lift stops lifting up or down when door is not closed.

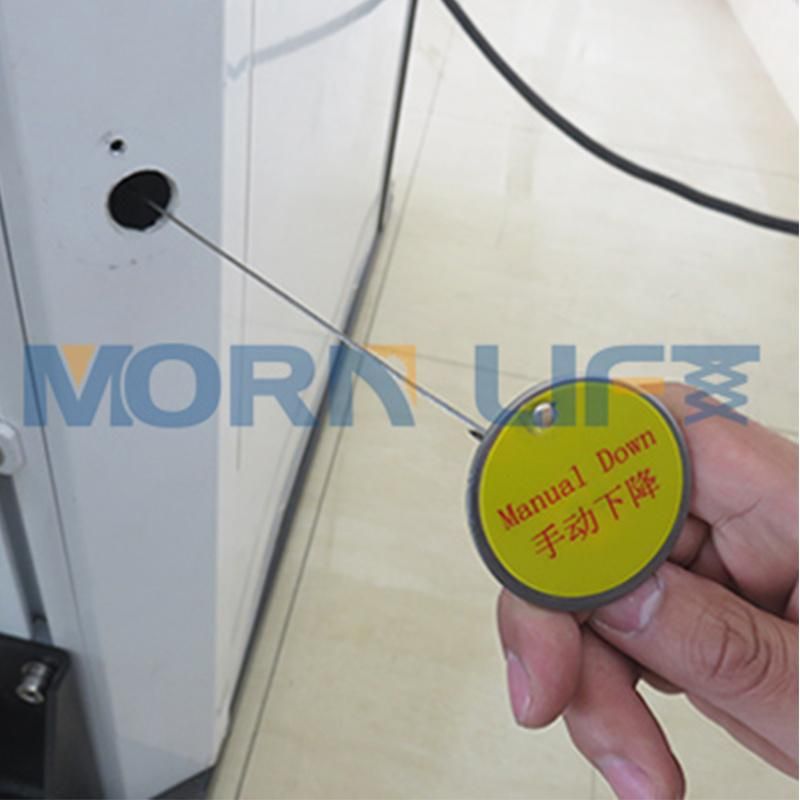

Manual Down
Pull out the switch to enable wheelchair lift fall down safely when when power cut suddenly.
Vertical small home lift model List
Model | Lifting height | Load capacity | Platform size | Self weight | Manual Door |
WL-1 | 1000mm | 250kg | 1430*900mm | 350kg | Yes |
WL-2 | 2000mm | 250kg | 1430*900mm | 550kg | Yes |
WL-3 | 3000mm | 250kg | 1430*900mm | 780kg | Yes |
WL-4 | 4000mm | 250kg | 1430*900mm | 880kg | Yes |
WL-5 | 5000mm | 250kg | 1430*900mm | 1000kg | Yes |
WL-6 | 6000MM | 250kg | 1430*900mm | 1100kg | Yes |
Packaging & Shipping
1. Film package to prevent humidity and rust.
2. Iron frame to keep lift stable in container.
3. Plywood to prevent lift from colliding. Convenient for forklift delivery.
