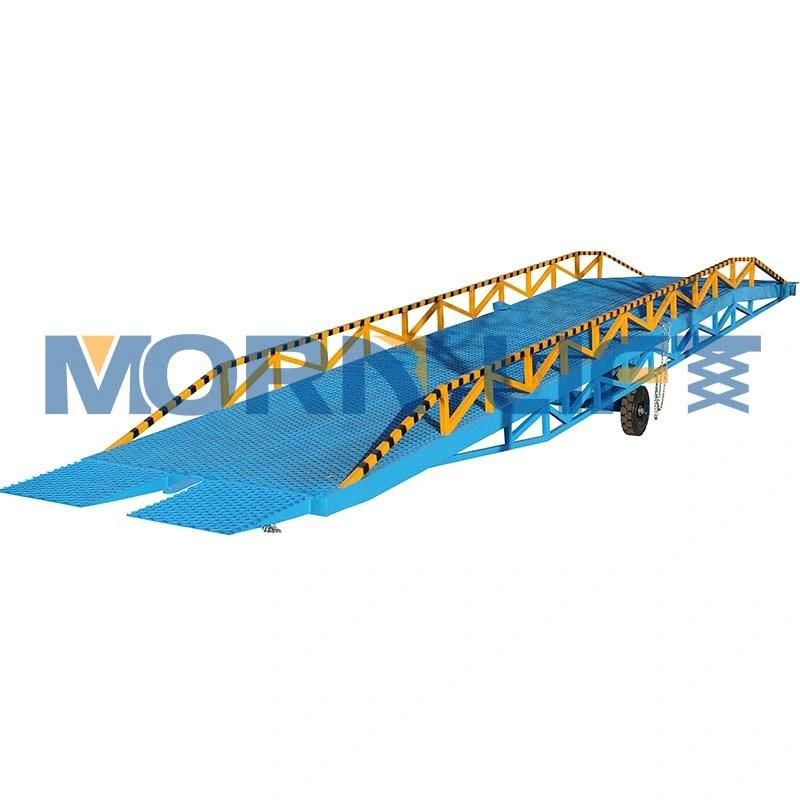

8t Mobile Manual Sliding Loading Container Ramp Accessing
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Telescoping Lift
- Carrying Capacity：Special Weight Level
- Moves：Moving
- Driven Type：Hydraulic
- Running Mode：Moving
Base Info
- Model NO.：MDR-8
- Feature：Explosion-Proof
- Certification：CE, ISO 9001
- Junction：400*1950mm
- Forklift Suspensive Board：2500*2000mm
- Floor：7500*2000mm
- Leading Board：600*500mm
- Overall Width：2010mm
- Usable Width：2000mm
- Max Working Grade：≤13°
- Color：Blue, Green, Yellow or as Your Requirements
- Supporting Legs：No Need
- Platform：Antiskid
- Transport Package：Nude Packing or According Your Requirement
- Specification：CE, ISO
- Trademark：MORN
- Origin：China
- HS Code：8428909090
- Production Capacity：1000sets,Month
Description
Model
MDR-8
Load capacity
8ton
Lip length
400mm
Working height range
1200-1800mm
Lift driven power
Manually or electric power
Support legs
Optional
Platform length
8500mm
Leading board
600x500mm per board
Dimension
11200x2000x1400mm
Dock loading ramp Parts show
detailed parts are showing in the below photo. Besides the strong performance ramp frame, we designed the heavy duty legs and full paved platform for safety consideration.

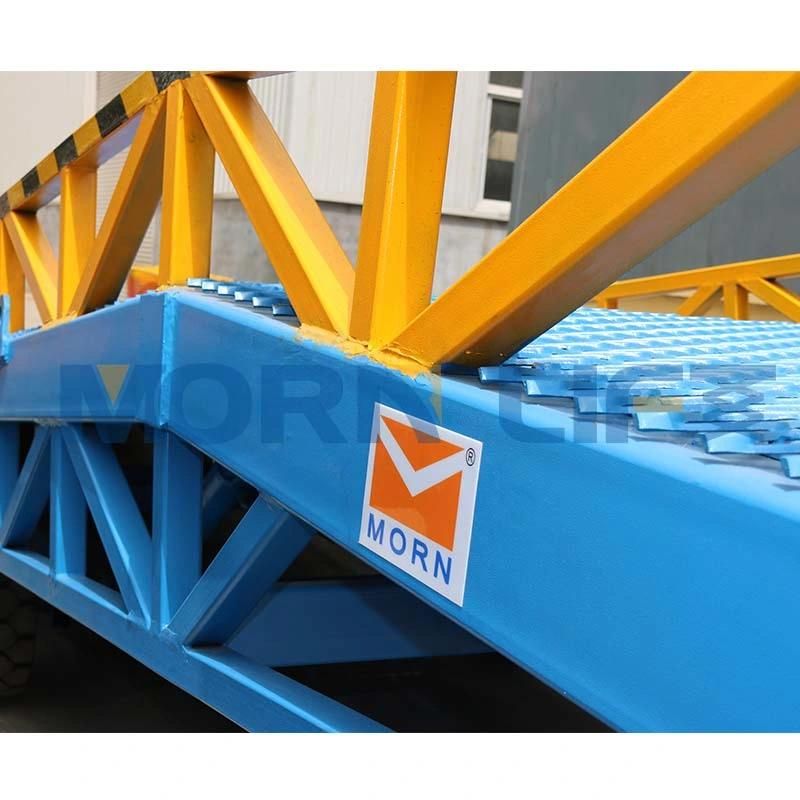

Truss structure
Truss structure of the ramp body and guard rail can disperse the pressure from the loading stuff. Making the ramp stronger.

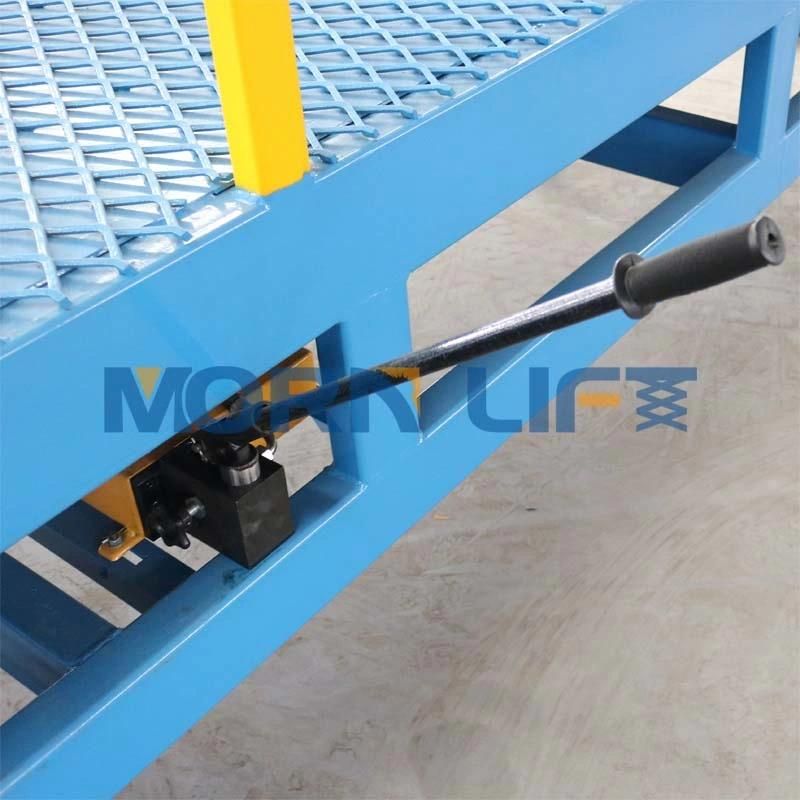

Adjusting bar
It's one hydraulic pump handle, to adjust height of loading ramp. One worker can easily lift up the ramp up to the bottom surface of container or truck.

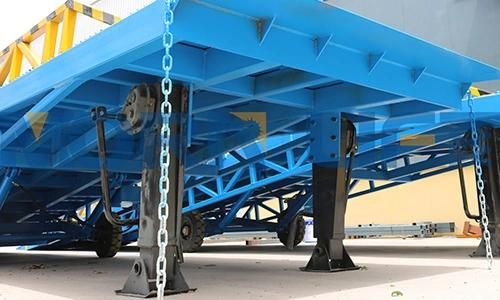

Heavy duty legs
Adjustable hegiht, keep safety supporting when the dock ramp is in the non-working state.
Packaging & Shipping
3 units can be put into one 40ft container to save shipping cost for you.
Optional
Electric power for liftiong to save manpower and time.
