• Model NO.：SSL3-3
• Feature：Explosion-Proof
• Certification：CE, ISO 9001
• Platform：Antiskid
• Max Load Capacity：3000kg
• Installation：in a Pit
• Lifting Point：Four Points for Easy Hoist
• Guardrail(Optional)：1100mm
• Lift Speed：3-6m,Min
• Surface：Rust-Proof
• Painting：Epoxy Paint
• Voltage：220V,380V, AC Power, 1 or 3 Phase, Can Also Be Mad
• Color：Yellow, Blue, Green, Black as Your Requirement
• Transport Package：Plywood Case
• Specification：CE
• Trademark：MORN
• Origin：Jinan, China
• HS Code：84289090
• Production Capacity：200000PCS,Years

Basic Info.

Model NO. SSL3-3 Feature Explosion-Proof Certification CE, ISO 9001 Platform Antiskid Max Load Capacity 3000kg Installation in a Pit Lifting Point Four Points for Easy Hoist Guardrail(Optional) 1100mm Lift Speed 3-6m/Min Surface Rust-Proof Painting Epoxy Paint Voltage 220V/380V, AC Power, 1 or 3 Phase, Can Also Be Mad Color Yellow, Blue, Green, Black as Your Requirement Transport Package Plywood Case Specification CE Trademark MORN Origin Jinan, China HS Code 84289090 Production Capacity 200000PCS/Years

Product Description

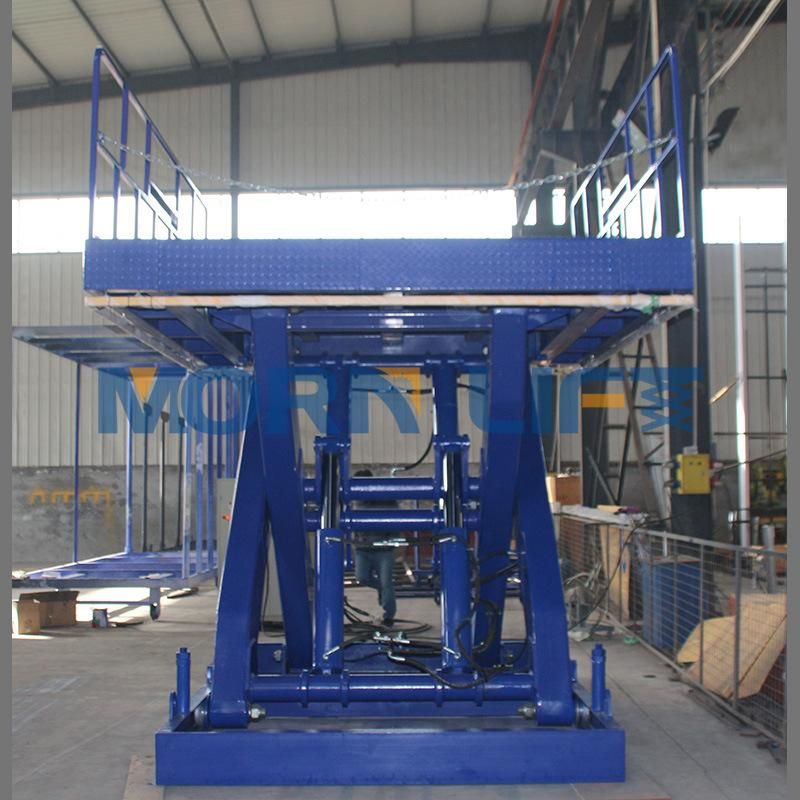

Hydraulic fixed scissor car lift platform

1. Features:
--- Heavy duty scissor platform is used to convey the goods from the ground to working
level.
---The control panels are available at the designated floors and one the lift platforms.
---Installed in the pit, do not occupy space.
---When lifting, up, down and stop three buttons control the lift.
---Load capacity, platform size and lifting height can be chosen according to your actual
needs.


2. Safety Precaution:

--- Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
--- Spillover valve: It can prevent high pressure when the machine moves up. Adjust the
pressure.
--- Emergency decline valve: it can go down when you meet an emergency or the power
off.
--- Anti-dropping device: Prevent falling of platform
---Safety trip bar below platform, the lift will stop going down when the platform touch items .

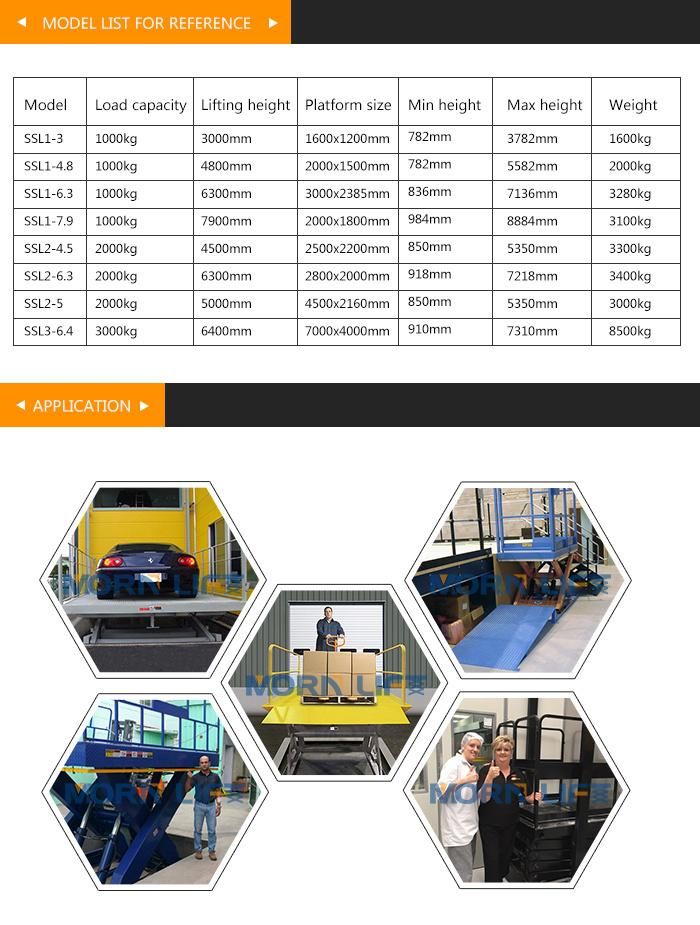

3. Model list-for your reference
Pls note: The lift table is customized, so pls kindly confim the lifting height, platform size
and load capacity you need.


Model	Load	Platform size	Lifting height	No-working height	Power
SSL3-2.4	3T	2.0*2.0M	2.4M	660MM	4KW/380V
SSL2-5.0	2T	2.1*1.2M	5.0M	870MM	4KW/380V
SSL3-6.5	3T	2.2*1.9M	6.5M	1520MM	5.5KW/380V
SSL1.5-3.8	1.5T	2.2*2.0M	3.8M	700MM	4KW/380V
SSL2-6.0	2T	2.0*1.3M	6.0M	1200MM	4KW/380V
SSL1.5-0.8	1.5T	2.0*1.5M	0.8M	500MM	3KW/380V
SSL1 -4.3	1T	2.0*1.8M	4.3M	800MM	4KW/380V


 4. Control mode:
There are two control boxes, one is on the ground, another is on the platform.
There are total three control buttons, UP & DOWN & STOP.


 5.After-sales Services

--- User-friendly English manual for machine using and maintenance.
--- One year warranty for whole machine without man-made fault;
--- We will send you parts for free if there are any non-human factors problem
during warranty time
--- 24-hours technical support by email, telephone or other communication online.
--- We could reply you in 2 hours after received your any questions even on weekend and
holiday, engineers are available to your country if necessary.
