• Model NO.：23KN
• Rope Capacity of The Reel：30m
• Max.Hoisting Load：30kn,15kn
• Maximum Rotation Angle：≤330°
• Transport Package：Deyuan Marine Standard Export Packing
• Specification：CCS,IACS standard
• Trademark：DEYUAN MARINE
• Origin：China
• HS Code：8425190000
• Production Capacity：100sets Per Month

Basic Info.

Model NO. 23KN Rope Capacity of The Reel 30m Max.Hoisting Load 30kn/15kn Maximum Rotation Angle ≤330° Transport Package Deyuan Marine Standard Export Packing Specification CCS/IACS standard Trademark DEYUAN MARINE Origin China HS Code 8425190000 Production Capacity 100sets Per Month

Product Description

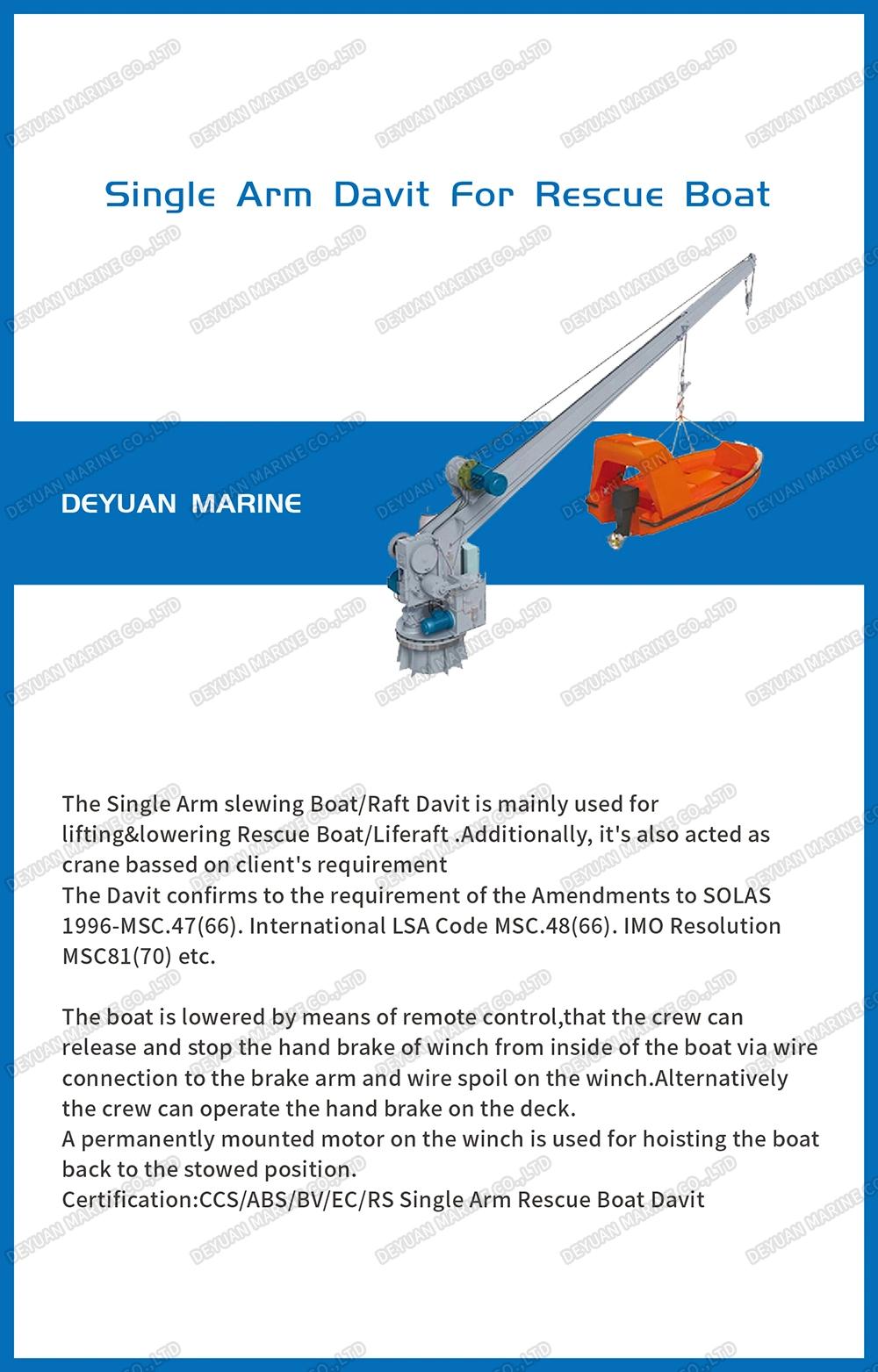

23KN SOLAS Single Arm Slewing Davit for Rescue Boat
23KN SOLAS Single Arm Slewing Davit for Rescue Boat: This equipment uses hydraulic drive rotary type, by its own gravity of the boat to make it down to the water, which could make the boat slew to outboard in case of losing of the power supply. While lowering, the sailors in the boat could pull the remote control steel rope, through the pulley around the reel. To lift the winch hammer to control the boat/raft lowering or stop. This also could be operated by sailors on the operation deck. The winch is use of motor-driven winch gear box and gear box with centrifugal speed and manual brake function delegaed. The device is designed and manufacturing according to the latest SOLAS standards and international standards.
Single Arm Type Davit Main Details:

The Single Arm Slewing Davit is a free-standing, deck-mounted davit consisting of a davit arm, column and electric winch
Manual slewing type and hydraulic slewing type are both available
Easy to operate
For the hydraulic slewing type davit, slewing out the fully manned rescue boat from its stowed position into launch position is done by means of the accumulated power obtained from a self-contained hydraulic power pack unit.
Other sizes/dimensions available on request
 Basic specification for enquiry:
Required lifting capacity
Outreach - min / max
Lifting height
Lifting speed
Luffing time
Self-weight of the davit
Power pack: (hydraulic, electric, or any other)
Power source
Required Classification societies

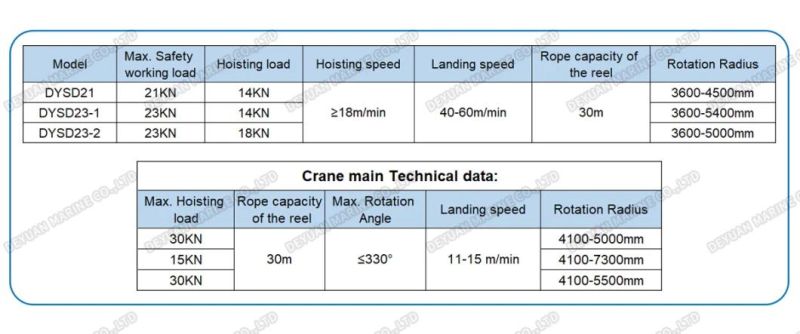

Technical Parameters of 23KN SOLAS Single Arm Slewing Davit for Rescue Boat
