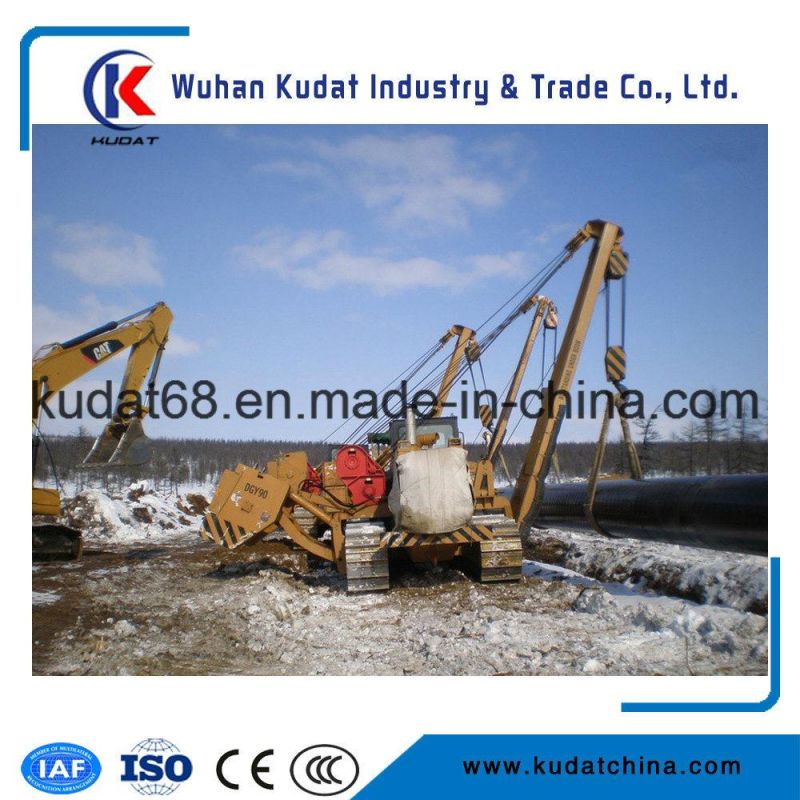

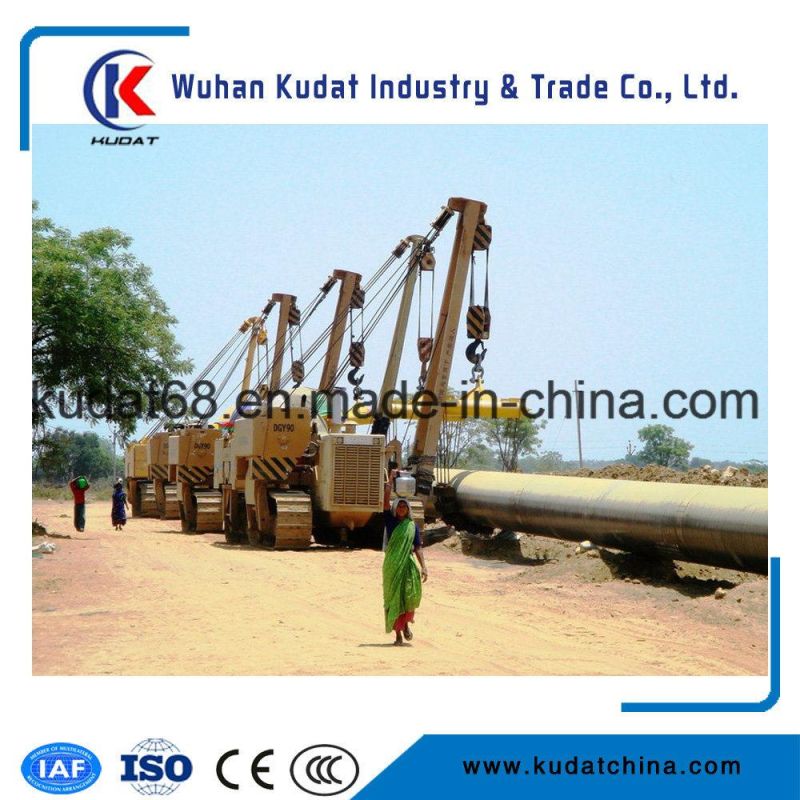

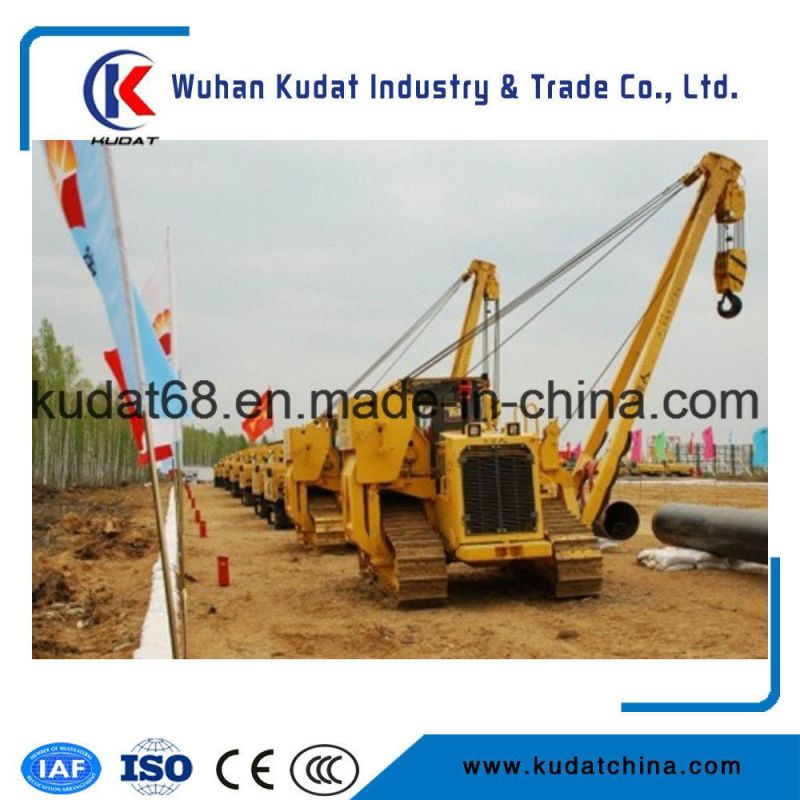

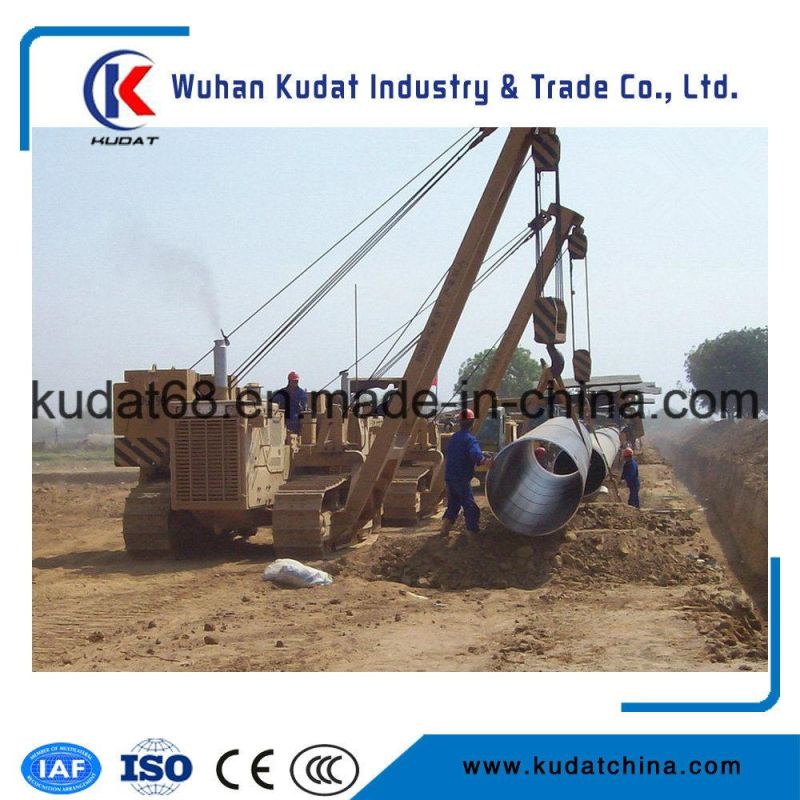

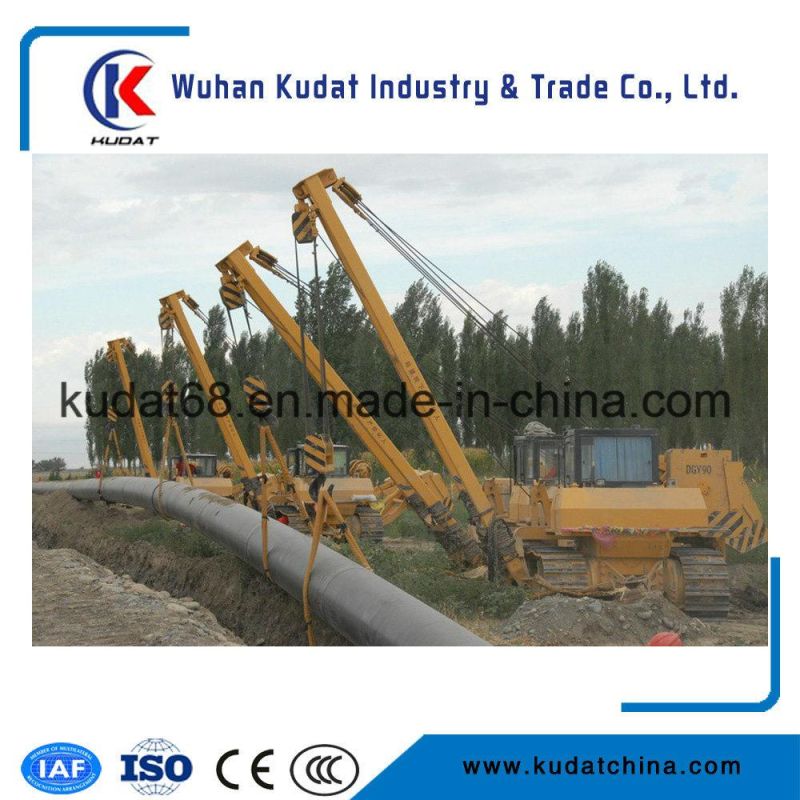

40000kgs China Side Boom Pipe Crane Dgy40s

Wuhan Kudat Industry & Trade Co., Ltd.
  • Max. Lifting Capacity：40, 000 Kg
  • Boom Length：6.5 M
  • Max. Lifting Height of Boom：4.7 M
  • Engine：Cummins Nt855-C280
  • Operation Weight：35000kgs
  • Hoisting Speed (6times) M/Min：6

Base Info

  • Model NO.：DGY40S
  • Chassis Model：Dgy40s
  • Engine Model：Cummins Nt855-C280
  • Engine Power Kw/Rpm：169,1800
  • Hydraulic Pump Model：CB-P63,63
  • Transport Package：in Nude Package
  • Specification：CE
  • Trademark：Kudat
  • Origin：China
  • HS Code：84269900
  • Production Capacity：1000PCS,Year

Description

Max. lifting capacity Ton40Max. lifting moment at min. range of the boom (392kN * 1.22M)kN.m478Max. lifting moment at max. range of the boom (78.4kN * 4.5M)kN.m353Boom lengthm6.5Max. lifting height of the hookm4.7Hoisting speed (6times) m/min6Time of change ranges30Chassis model DGY-40SEngine model CUMMINS NT855-C280Engine powerkW/rpm169/1800Track gaugemm2250Track length on groundmm4910Track shoe widthmm1050Hydraulic pump model CB-P63/63Hydraulic pump pressureMpa20Lifting winchHydraulic driven, planetary transmission, free-fall functionRated pulling force of single rope (3rd layer)N55000Wire rope diametermm18Ranging winchHydraulic driven, planetary transmissionMax. grade abilityo20Operation temperature (std.)oC-20 ~ +40Overall dimension
(LxWxH)with boommm5950x5100x7300without boommm5950x4100x3300Ground pressurewithout loadMpa0.034Operation weightkg3500040000kgs China Side Boom Pipe Crane Dgy40s40000kgs China Side Boom Pipe Crane Dgy40s40000kgs China Side Boom Pipe Crane Dgy40s40000kgs China Side Boom Pipe Crane Dgy40s40000kgs China Side Boom Pipe Crane Dgy40s40000kgs China Side Boom Pipe Crane Dgy40s
