• Model NO.：WL-STEP-1200
• Certification：CE
• Motor Power：0.8kw
• Pressure：2500psi
• Voltage：12V,24V
• Platform Size：1152mm*819mm
• Max Lifting Height：1200mm
• Required Door Net Width：Over 1100
• Cylinder Diameter&Stroke：45*600 Unidirectional Action
• Transport Package：Wooden Case
• Specification：CE
• Trademark：Xinder
• Origin：Changzhou Jiangsu China
• HS Code：8428909090
• Production Capacity：500 Sets Per Month

Basic Info.

Model NO. WL-STEP-1200 Certification CE Motor Power 0.8kw Pressure 2500psi Voltage 12V/24V Platform Size 1152mm*819mm Max Lifting Height 1200mm Required Door Net Width Over 1100 Cylinder Diameter&Stroke 45*600 Unidirectional Action Transport Package Wooden Case Specification CE Trademark Xinder Origin Changzhou Jiangsu China HS Code 8428909090 Production Capacity 500 Sets Per Month

Product Description

A. INTRODUCTION

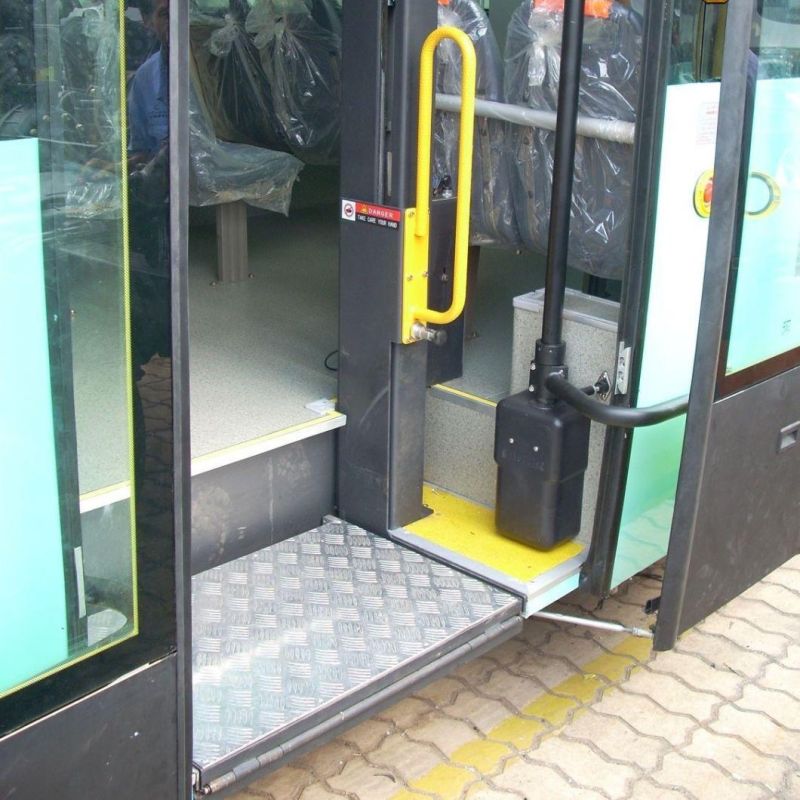

WL-STEP Series wheelchair lift can be installed at the position of steps of the side door and it can be used as steps when it is stowed. The operation of this wheelchair lift for bus is both electric and hydraulic with the main function of helping the disabled get into/out of vehicle, especially for the people in wheelchair.

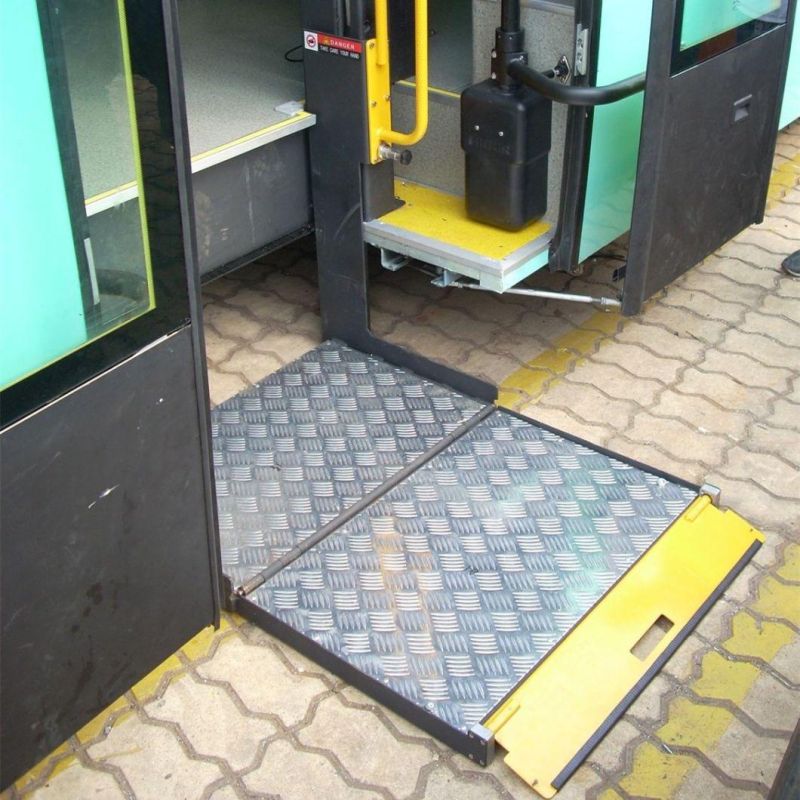

The operation of bus lift is easy, safety and reliability. Its loading capacity can reach to 350 kg. Meanwhile, the application field is more widely because of its unique design and simple installation. WL-STEP-1200 Wheelchair Lift can be operated by user himself, vehicle driver and person who can provide help. Fold the first platform which is used as step, and then use the remote control to raise the lift to vehicle floor.

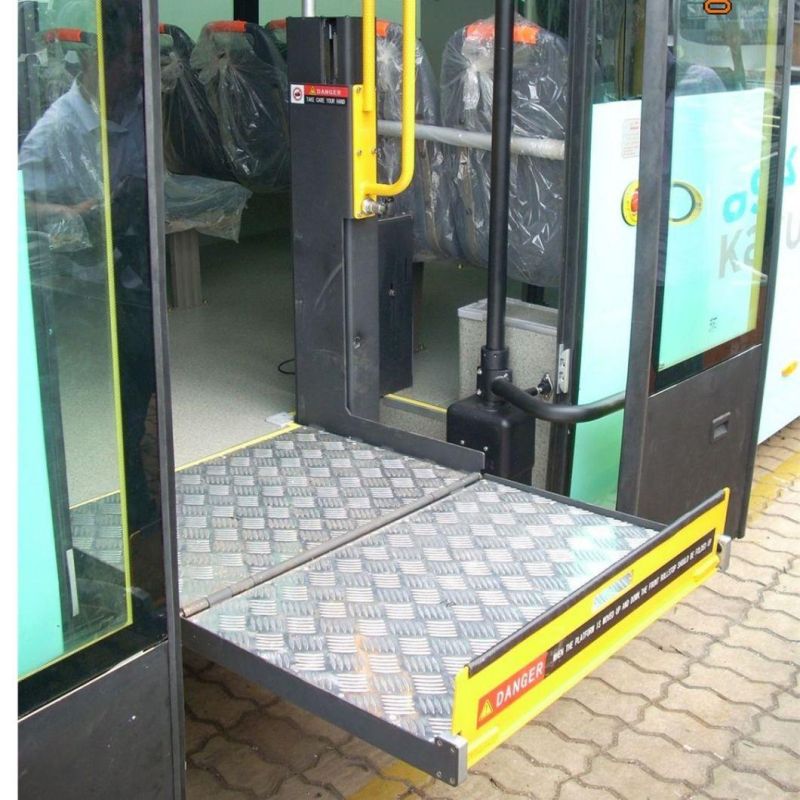

WL-STEP-1200 Wheelchair Lift has a typical characteristic, that is, the platform can be used as a step of the vehicle, which can save the space of vehicle and the operating time. There is anti-skidding device on the platform which can ensure the safety of wheelchair during lift performance. Also, the front rollstop will stand up, which is another protection for the wheelchair. Lift performance is fulfilled through power unit which consists of electric and hydraulic power. Using hydraulic cylinder can make sure bus lift will perform steadily and ensure the safety of people on the platform. Using gravity to lower platform makes the performance silently and save electric power. Moreover, this vehicle wheelchair lift can be operated manually for emergency.

B. ADVANTAGES
1. Well designed to take up as little space as possible
2. Operated both electrically and manually

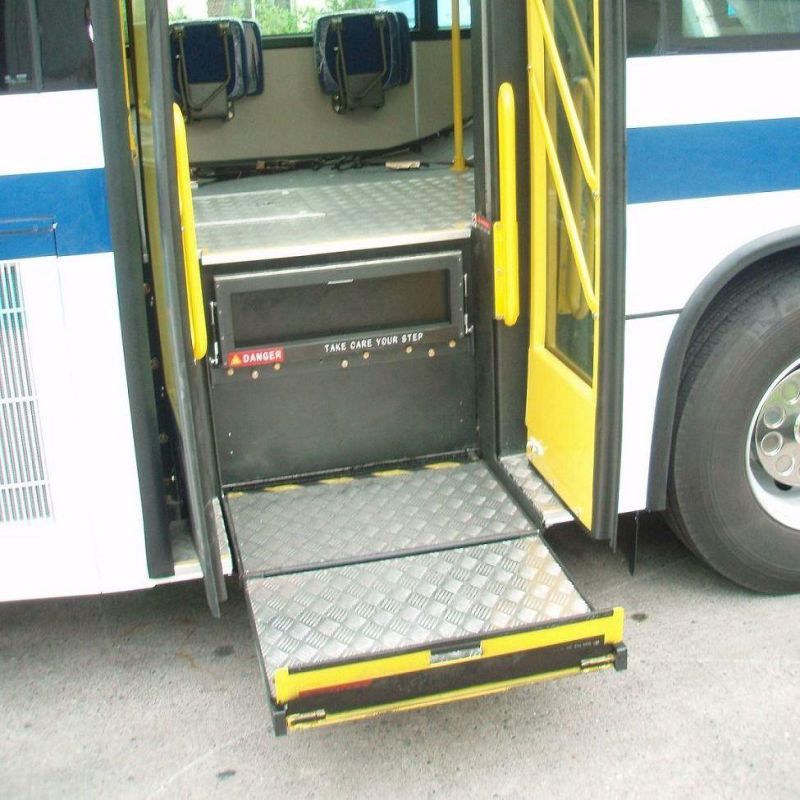

3. This lift can be used as bus step when stowed
4. Loading capacity can reach 350kg
5. There are mounting hole on fixing plate, which is easy for installation
6. Wide application; Size can be adjusted according to bus situation

C. NOTES
1. Raise platform: Motor drive and hydraulic function;
2. Lower platform: Pressure release valve of power unit will control velocity of flow; Under the function of gravity;
3. Raise platform manually: Operate hydraulic pump manually;
4. Lower platform manually: Rotate button of manual pressure release valve with specialized tool;
5. Model & Capacity of hydraulic oil: L-HV46

Model	Voltage	Loading capacity	Motor Power	Pressure	Cylinder Diameter & Stroke
WL-STEP-1200	12V/24V	350 kg	0.8KW	2500Psi	Φ45*600 Unidirectional Action

Model	Platform size	Overall length	Overall width	Overall height	Max lifting height	Door net width
WL-STEP-1200	1152*819mm	757mm	1189mm	1784mm	1200mm	Over 1100mm
