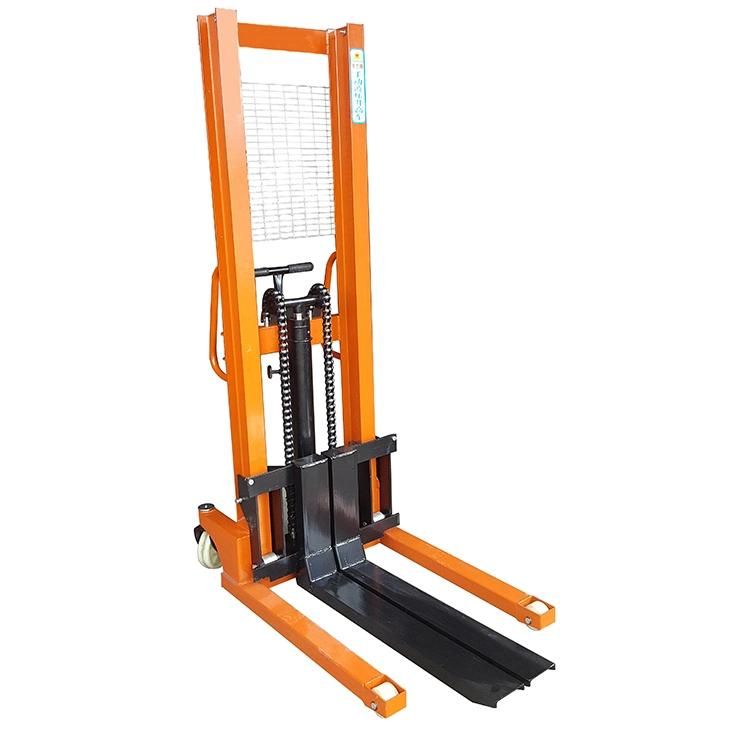

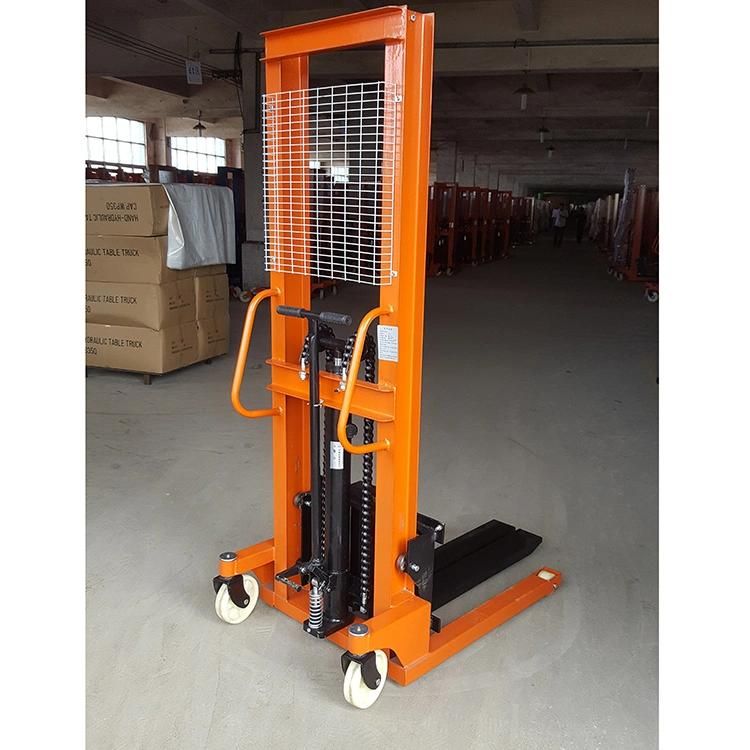

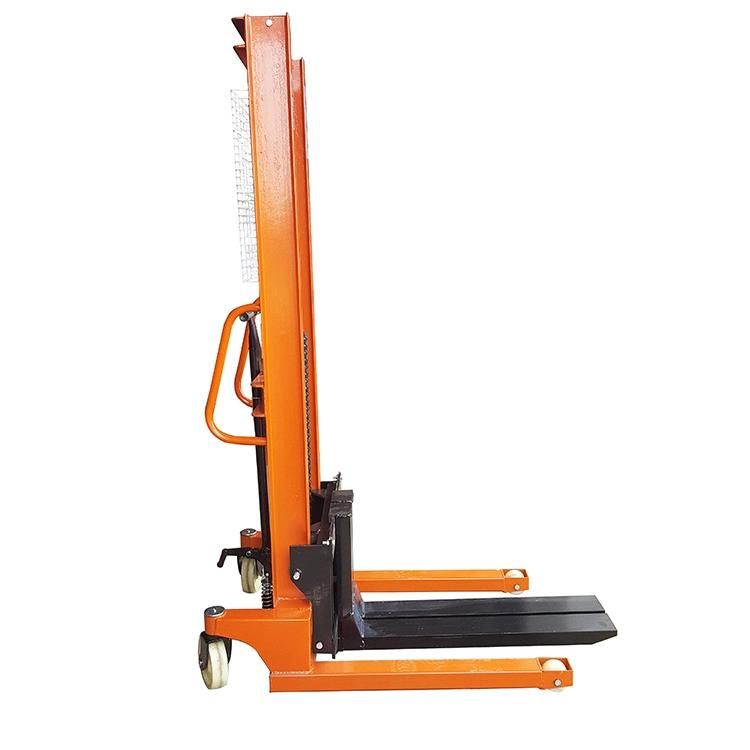

Hydraulic Hand Stacker with CE Certification
Niuli Machinery Manufacture Co., Ltd.- After-sales Service:Online Service
- Warranty:1 Year
- Type:Cantilever Stacker & Reclaimer
- Height:Customerzied
- Product Name:Hand Stacker
- Key Words:Stacker
Base Info
- Model NO.:CTY. A
- Brand:Niuli
- Transport Package:Iron Pallet
- Specification:CE
- Trademark:NIU LI
- Origin:Heshan City, Guangdong Province, China.
- HS Code:8427900000
- Production Capacity:10000
Description
Basic Info.
Model NO. CTY. A Brand Niuli Transport Package Iron Pallet Specification CE Trademark NIU LI Origin Heshan City, Guangdong Province, China. HS Code 8427900000 Production Capacity 10000Product Description
Equipped with a constant velocity controlling value, Variation of loads do not effect forks lowering speed.Top quality hydraulic pump and cylinder.
Compact design and strong steel construction
1. Capacity: 1000kg, 1500kg, 2000kg, 3000kg.
2. Max Lifting Height: 1600mm, 2500mm.
3. Height Of Forks: 80-100mm.
4. Fork Of Length: 900mm.
5. Adjustable Width Of The Forks: 320-700mm.
6. Self Weight: 110kg-280kg.
Model | CTY-A1.0 | CTY-A2.0 | CTY-A3.0 |
Capacity(kg) | 1000 | 2000 | 3000 |
Max.lifting height(mm) | 1600 | 1600 | 1600 |
Lowered height of forks(mm) | 85 | 85 | 100 |
Fork length (mm) | 900 | 900 | 1000 |
Adjustable Width of fork(mm) | 230-580 | 270-680 | 320-770 |
Lifting speed(mm/stroke) | 20 | 14 | 10 |
lowering speed(mm/stroke) | Controllable | Controllable | Controllable |
Outer width of front legs (mm) | 750 | 750 | 750 |
Operation power of crank(kg) | 24 | 32 | 40 |
Min.refuel volume of fuel tank(L) | 1.6 | 2.0 | 3.0 |
Front wheel size(mm) | φ85x50 | φ85x50 | φ100x50 |
Rear wheel size(mm) | φ180x50 | φ180x50 | φ180x50 |
Overall size(mm) | 2040x750x1420 | 2050x750x1480 | 2050x800x1650 |
Self Weight(kg) | 115 | 180 | 280 |
