• Model NO.：MINI-UVL-750*1100
• Feature：Ce
• Certification：CE
• Platform Size：750 *1100mm
• Loading Capacity：300kg
• Max Lifting Height：820mm
• Overall Length：1615mm
• Overall Width：970mm
• Overall Thickness：90 mm
• Door Width Required：850mm
• Safety：Anti-Skip Platform
• Volt：12V or 24V
• Transport Package：Plywood Case
• Specification：148kg
• Trademark：xinder
• Origin：Jiangsu. China
• HS Code：84289090
• Production Capacity：100 PCS,Month

Basic Info.

Model NO. MINI-UVL-750*1100 Feature Ce Certification CE Platform Size 750 *1100mm Loading Capacity 300kg Max Lifting Height 820mm Overall Length 1615mm Overall Width 970mm Overall Thickness 90 mm Door Width Required 850mm Safety Anti-Skip Platform Volt 12V or 24V Transport Package Plywood Case Specification 148kg Trademark xinder Origin Jiangsu. China HS Code 84289090 Production Capacity 100 PCS/Month

Product Description

INTRODUCTION:

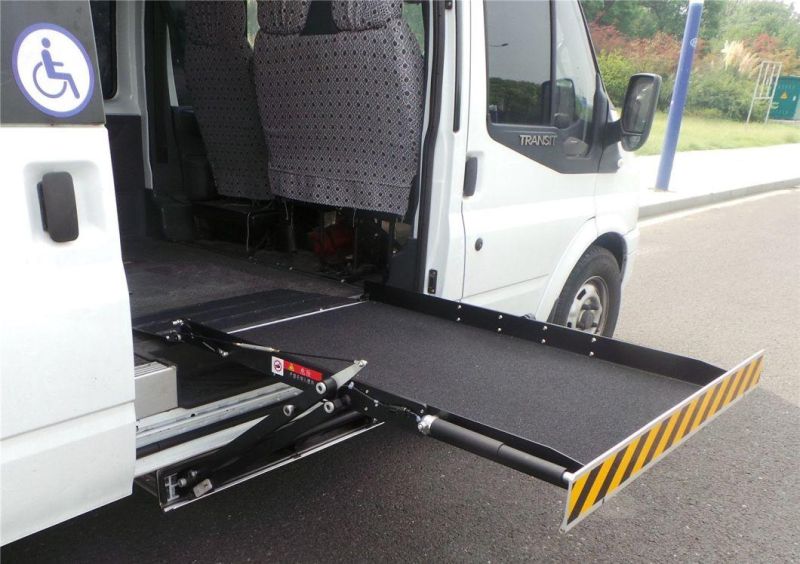

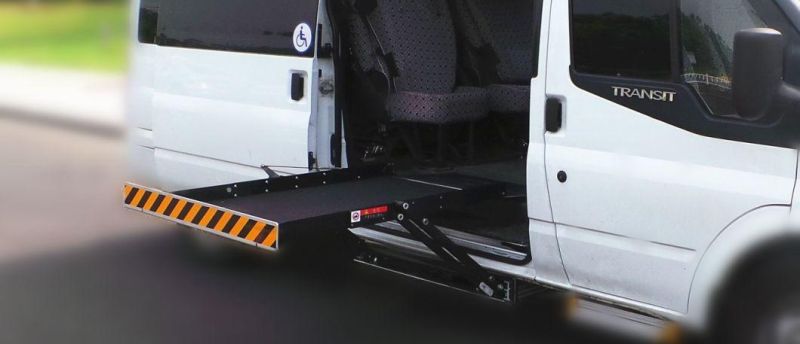

1. This lift is designed for van to help wheelchair occupant to get on van while seated on his wheelchair.
2. It is installed under the chassis of van side door.

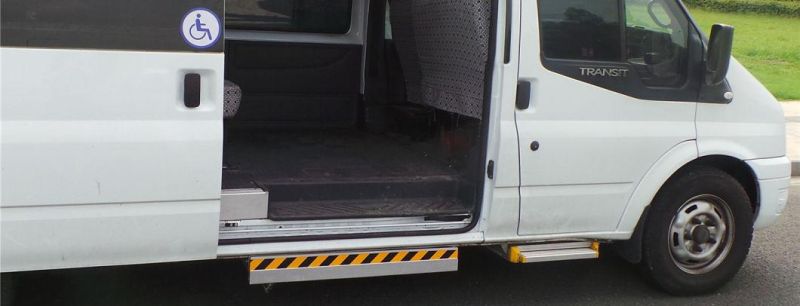

3. It stays out of way and out of sight when not in use, so it can provide clear path and good visibility for passengers.
4. The frame is super thin with thickness only 90mm.
5. This lift can be operated by the wired remote control or your mobilephone, and it can be operated manually for emergency.
6. Loading capacity is 300kg;
7. There is manual function for emergency.

ADVANTAGES:

1. Super thickness, only 90mm;
2. Door interlock function;
3. Inside safety locking device;
4. Provides clear path and good visibility both for passengers and the driver;
5. Mechanical automatic roll stops;
6. Warning sound during working;
7. Powerful hydraulic system ensures smooth and stable movements;
8. Anti-skid platform;
9. Manual backup function;
10. CE and EMARK certificate;
11. High-gloss polyester powder coat finish to prevent corrosion;
12. Can be operated by the remote control or your mobile phone;

SPECIFICATIONS:
unit:mm

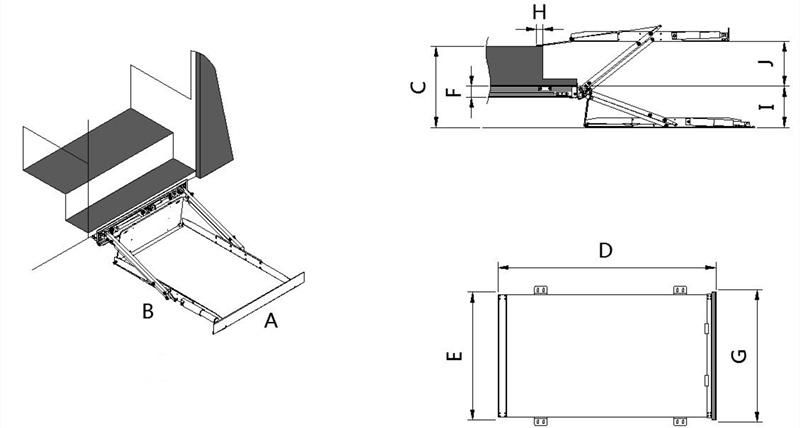

Model	A platform net width	B platform net length	C Max lifting height	D gross length	E gross width	F thickness	G door net width	H overlap size	I Max down stroke	J Max up stroke
MINI-UVL-750	750	1100	820	1615	970	90	850	50	390	430
MINI-UVL-800	800	1200	820	1715	1020	90	850	50	390	430
