Lifting Equipment

Home > Product > Lifting Table

1ton 6m Scissor Lift Table Morn Brand

Jinan Morn Technology Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Warehouse
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Special Weight Level
  • Moves：Stationary
  • Driven Type：Hydraulic
  • Running Mode：Stationary

Base Info

  • Model NO.：SSL1-6
  • Feature：Explosion-Proof, Insulating
  • Certification：GS, CE, RoHS, ISO 9001
  • Color：Yellow or Blue
  • Warranty：5 Years for Main Structure
  • Spare Parts：Oil Ring, Seal Ring etc
  • Speed：3-6m,Min
  • HS Code：84289090, 84289090
  • Platform Size：2500*1800mm
  • Closed Height：660mm
  • Guard Rail：1200mm
  • Surface：Rust-Proof
  • Platform：Antiskid
  • Transport Package：Plywood Case or Nude Packing
  • Specification：2500*1800*660mm
  • Trademark：MORN
  • Origin：China
  • Production Capacity：100 Units Per Month

Description

ModelLoadPlatform sizeLifting heightNo-working heightDimensionPowerSSL 3-1.63T2.7*2.0M1.6M150MM2.7*2.0*0.15M4KW/380VSSL 2-52T2.1*1.2M5.0M870MM2.1*1.2*0.87M4KW/380VSSL 1-4.51T2.1*1.5M4.5M800MM2.1*1.5*0.80M3KW/380VSSL 5-6.55T2.2*1.6M6.5M1280MM2.2*1.6*1.28M5.5KW/380VSSL 3-6.53T2.2*1.9M6.5M1520MM2.2*1.9*1.52M5.5KW/380VSSL 1.5-3.81.5T2.2*2.0M3.8M700MM2.2*2.0*0.70M4KW/380VSSL 1-61T1.9*1.1M6.0M1100MM1.9*1.1*1.10M3KW/380VSSL 2-62T2.0*1.3M6.0M1200MM2.0*1.3*1.20M4KW/380VSSL 1.5-0.81.5T2.0*1.5M0.8M500MM2.0*1.5*0.50M3KW/380VSSL1 -4.31T2.0*1.8M4.3M800MM2.0*1.8*0.80M4KW/380VSSL 2-62T2.0*2.0M6.0M1030MM2.0*2.0*1.03M4KW/380VSSL 3-2.43T2.0*2.0M2.4M630MM2.0*2.0*0.63M2.2KW/380V
After-sale Services

1. User-friendly English manual for machine using and maintenance.
2. One-year warranty for whole machine without man-made fault;
    5-year warranty on main structures.
3. Free parts available if there is any nonhuman factors problem during warranty time.
4. 7*24-hours technical support by email, telephone or video online; engineers are available to go offshore if necessary.

1ton 6m Scissor Lift Table Morn Brand

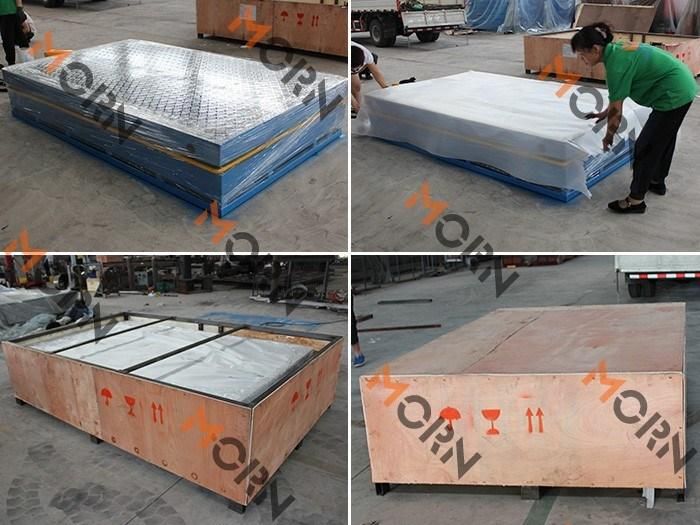

Package

1ton 6m Scissor Lift Table Morn Brand

Customer visiting

1ton 6m Scissor Lift Table Morn Brand
