• Model NO.：SJY-W
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Load Capacity：500kg, 1000kg, 1500kg, 2000kg
• Platform Height：4-18m
• Lift Method：Hydraulic
• Lifting Speed：4-6m,Min
• Voltage：110V 220V 240V 380V, 400V, Customized
• Frequency：50Hz,60Hz
• Drive Power：Manual,Truck to Tow,DC Battery
• Lift Power：AC,DC,Diesel
• Guardrail Height：1.1m
• Surface Treatment：Plastic Spray
• Safety Precaution 1：Anti Explosion Valve
• Certifications：Ce ISO9001
• Color：Red Yellow Blue Customized
• After-Sales Service：24 Hours Online Service or Engineers Available to
• Option：Extendable Platform
• Transport Package：Standard
• Specification：500-2000
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：500sets,Month

Basic Info.

Model NO. SJY-W Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Load Capacity 500kg, 1000kg, 1500kg, 2000kg Platform Height 4-18m Lift Method Hydraulic Lifting Speed 4-6m/Min Voltage 110V 220V 240V 380V, 400V, Customized Frequency 50Hz/60Hz Drive Power Manual/Truck to Tow/DC Battery Lift Power AC/DC/Diesel Guardrail Height 1.1m Surface Treatment Plastic Spray Safety Precaution 1 Anti Explosion Valve Certifications Ce ISO9001 Color Red Yellow Blue Customized After-Sales Service 24 Hours Online Service or Engineers Available to Option Extendable Platform Transport Package Standard Specification 500-2000 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500sets/Month

Product Description

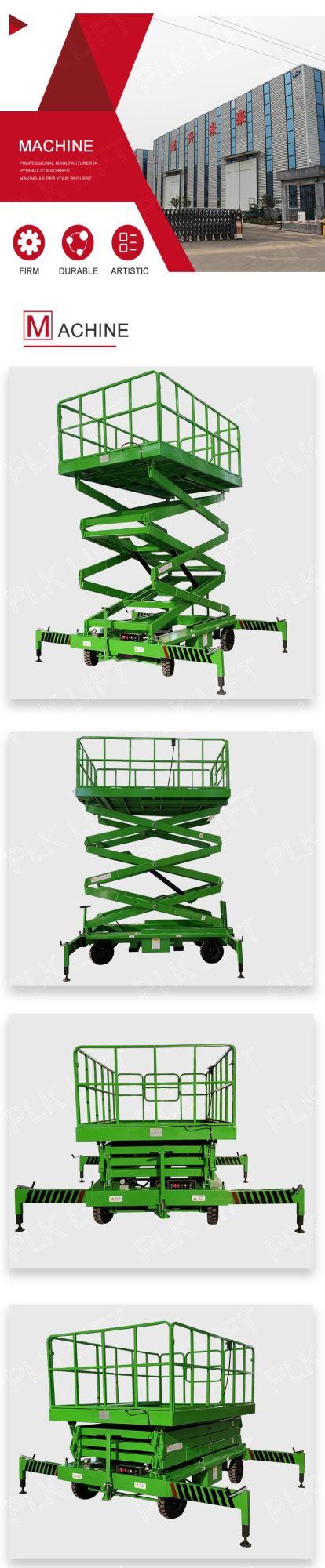

Auto Moveable Scissor Lift Mobile Scissors Lifting Platform
Electric scissor lift has CE certificate which is popular in Aerial working industry, Manual dragging,two universal wheels,two fixed wheels,convenient for moving and turning.
It has power failure self locking function and emergency descent system which can guarantee the worker safe.
There is AC DC or both AC&DC power option let you select, flexible power source which can make your work more efficient.

Model No.	Loading Capacity (kg)	Lifting Height (m)	Platform Size (m)	Overall size (m)	Motor (kw)	Wheels(φ)	Net Weight (kg)
SJY4506-H	450	6	1.85*0.88	1.95*1.08*1.1	1.5	200 PU	800
SJY4507-H	450	7.5	1.8*1.0	1.95*1.2*1.54	1.5	400-8 Rubber	1000
SJY4509-H	450	9	1.8*1.0	1.95*1.2*1.68	1.5	400-8 Rubber	1200
SJY4511-H	450	11	2.1*1.15	2.25*1.35*1.7	2.2	500-8 Rubber	1580
SJY4512-H	450	12	2.45*1.35	2.5*1.55*1.88	3	500-8 Rubber	2450
SJY4514-H	450	14	2.45*1.35	2.5*1.55*2.0	3	500-8 Rubber	2650
SJY1006-H	1000	6	1.8*1.0	1.95*1.2*1.45	2.2	500-8 Rubber	1100
SJY1009-H	1000	9	1.8*1.25	1.95*1.45*1.75	3	500-8 Rubber	1510
SJY1012-H	1000	12	2.45*1.35	2.5*1.55*1.88	4	500-8 Rubber	2700
SJY0316-H	300	16	2.75*1.5	2.85*1.75*2.1	3	500-8 Rubber	3200

CE certification

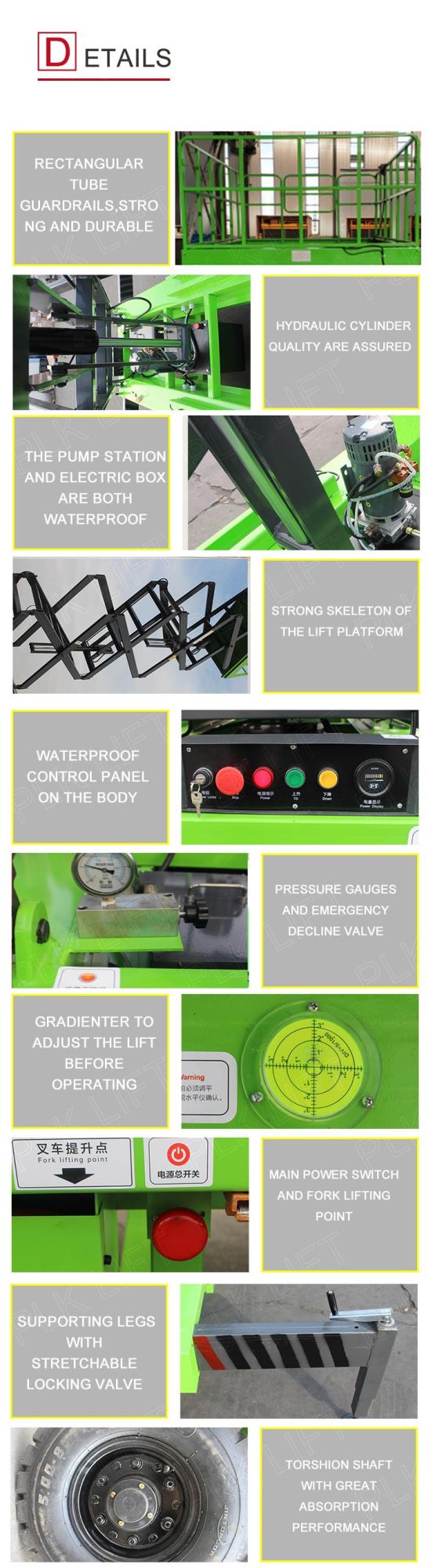

Simple structure, easy to maintain.
Manual dragging, two universal wheels, two fixed wheels, convenient for moving and turning
Moving by man manually or towed by tractor. Lifting by AC(without battery) or DC (with battery).
Electrical protection system:
a. The main circuit is equipped with main and auxiliary double contactors, and the contactor is faulty.
b. With rising limit, emergency limit switch
c. Equipped with emergency stop button on the platform
Power failure self-locking function and Emergency descent system
