• Model NO.：SS-W
• Feature：Explosion-Proof
• Certification：GS, CE, RoHS, ISO 9001
• Voltage：220V 380V
• Color：Customized
• Net Weight：800kg 858kg
• Travel Height：4140mmt4210mm
• Self Height：600mmt706mm
• Platform Size：1700X1000mm
• Transport Package：High Quality Box
• Specification：1300*820*2000mm 320kg
• Trademark：PLK LIFT
• Origin：China(Mainland)
• HS Code：8428909090
• Production Capacity：1000 Set,Month

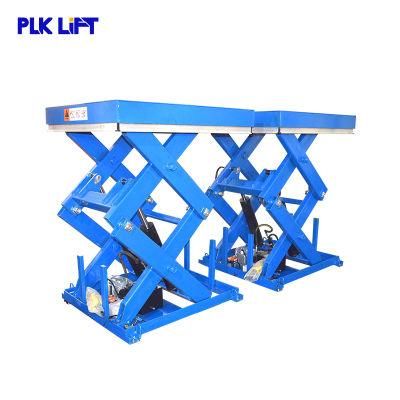

Model

Load Capacity(KG)

Self Height

(MM)

Max Platform Height(MM)

Platform Size(MM)

Lifting time

(S)

Net weight

(KG)

SS1001

1000

205

1000

1300×820

20~25

160

SS1002

1000

205

1000

1600×1000

20~25

186

SS1003

1000

240

1300

1700×850

30~35

200

SS1004

1000

240

1300

1700×1000

30~35

210

SS1005

1000

240

1300

2000×850

30~35

212

SS1006

1000

240

1300

2000×1000

30~35

223

SS1007

1000

240

1300

1700×1500

30~35

365

SS1008

1000

240

1300

2000×1700

30~35

430

SS2001

2000

230

1000

1300×850

20~25

235

SS2002

2000

230

1050

1600×1000

20~25

268

SS2003

2000

250

1300

1700×850

25~35

289

SS2004

2000

250

1300

1700×1000

25~35

300

SS2005

2000

250

1300

2000×850

25~35

300

SS2006

2000

250

1300

2000×1000

25~35

315

SS2007

2000

250

1400

1700×1500

25~35

415

SS2008

2000

250

1400

2000×1800

25~35

500

SS4001

4000

240

1050

1700×1200

30~40

375

SS4002

4000

240

1050

2000×1200

30~40

405

SS4003

4000

300

1400

2000×1000

35~40

470

SS4004

4000

300

1400

2000×1200

35~40

490

SS4005

4000

300

1400

2200×1000

35~40

480

SS4006

4000

300

1400

2200×1200

35~40

505

SS4007

4000

350

1300

1700×1500

35~40

570

SS4008

4000

350

1300

2200×1800

35~40

655

HD1000

1000

305

1780

1300X820

35-45

210

HD2000

2000

350

1780

1300X850

35-45

295

HD4000

4000

400

2050

1700X1200

55-65

520

HT1000

1000

470

3000

1700x1000

35-45

450

HT2000

2000

560

3000

1700x1000

50-60

750

HF400

400

600

4140

1700x1000

30-40

800

HF800

800

706

4210

1700x1000

70-80

858

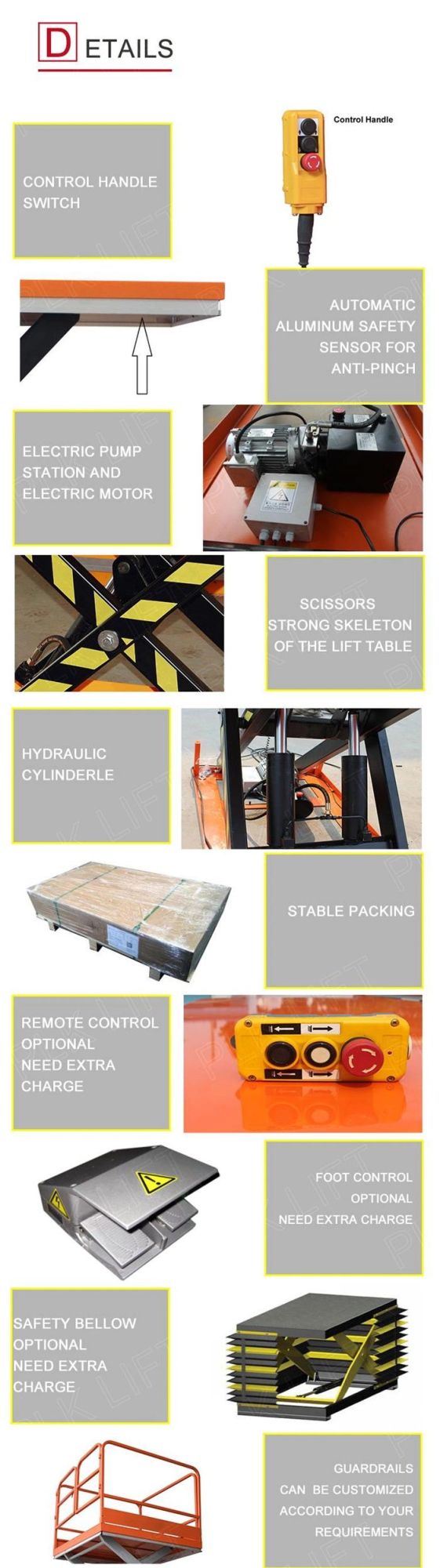

Features & Advantages:

1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes scissor lift table lifts and fall very stable.
3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye to help lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
8. Up to American standard ANSI/ASME and Europe standard EN1570
9. Safe clearance between scissor to prevent damages during operation.
10. Brief structure make it much easier to operate and maintain.
11. Stop at the per-concerted and accurate location point.

1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Overload protection locking device: in case of dangerous overload.
5. Anti-dropping device: Prevent falling of platform.
6. Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
