Mini Portable High Quality Low Profile Hydraulic Scissor Lift Table
Jinan PLK Machinery Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：HY-W
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Color：Customed
- Load Capacity(Kg)：1000 1500 2000
- Max. Platform Height(mm)：860 870
- Lifting Time(S)：25 30 35
- Transport Package：Wooden Pallet and High Quality Paper Boxes with St
- Specification：1450*985*100
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：50000 Set Per Year
Description
Basic Info.
Model NO. HY-W Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Color Customed Load Capacity(Kg) 1000 1500 2000 Max. Platform Height(mm) 860 870 Lifting Time(S) 25 30 35 Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 50000 Set Per YearProduct Description
Small Electric Lift Table Lift Table Hydraulic Scissor LiftPLKLIFT Brands Low Profile Scissor Lift Table are one of the most Ideal equipment for loading and unloading goods.
Lowest platform height can make goods loading more convenient, peopled can put down the goods easily. And its load capacity are 1000kg, 1500kg and 2000kg.
It is widely used in the warehouse, small shop and other place, to help people lifting the wooden or plastic pallet, goods and material etc.
Data Sheet
| Model | Load Capacity(kg) | Max. Platform Height(mm) | Platform Size (mm) | Base Size (mm) | Self Height (mm) | Lifting Time(s) | Voltage | Net weight (KG) |
| HY1001 | 1000 | 860 | 1325x1074 | 1325x1074 | 85 | 25 | customized | 357 |
| HY1002 | 1000 | 860 | 1325x1074 | 1325x1074 | 85 | 25 | customized | 364 |
| HY1003 | 1000 | 860 | 1325x734 | 1325x734 | 85 | 25 | customized | 326 |
| HY1004 | 1000 | 860 | 1325x734 | 1325x734 | 85 | 25 | customized | 332 |
| HY1005 | 1000 | 860 | 1325x734 | 1325x734 | 85 | 25 | customized | 352 |
| HY1501 | 1500 | 870 | 1325x734 | 1325x734 | 105 | 30 | customized | 302 |
| HY1502 | 1500 | 870 | 1325x734 | 1325x734 | 105 | 30 | customized | 401 |
| HY1503 | 1500 | 870 | 1325x734 | 1325x734 | 105 | 30 | customized | 415 |
| HY2001 | 2000 | 870 | 1427x1114 | 1427x1114 | 105 | 35 | customized | 419 |
| HY2002 | 2000 | 870 | 1427x734 | 1427x734 | 105 | 35 | customized | 405 |
This scissor lift table equipped with safety valve, to protect the safety both for goods and user.

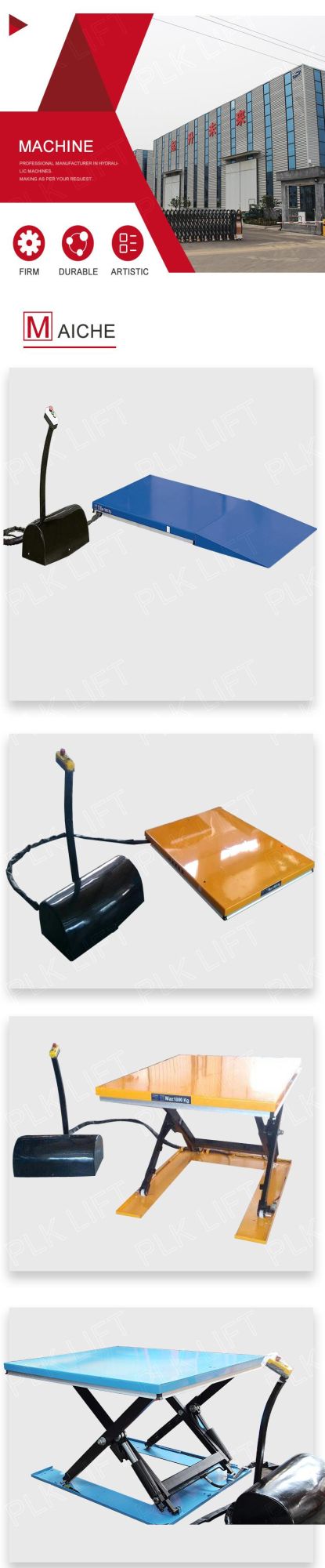

Product Show

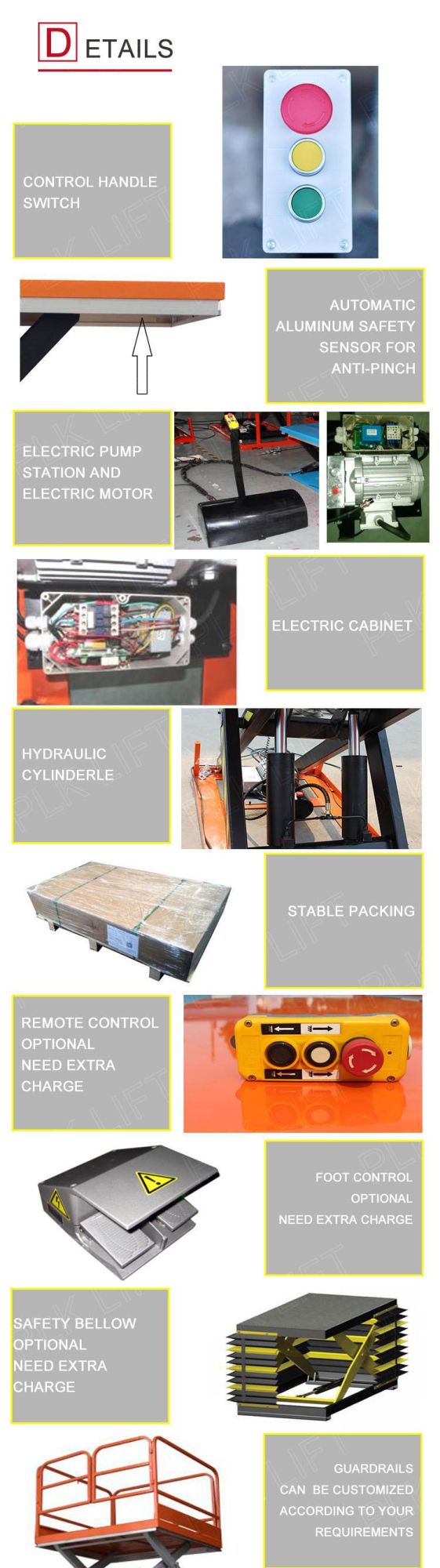

Details Show

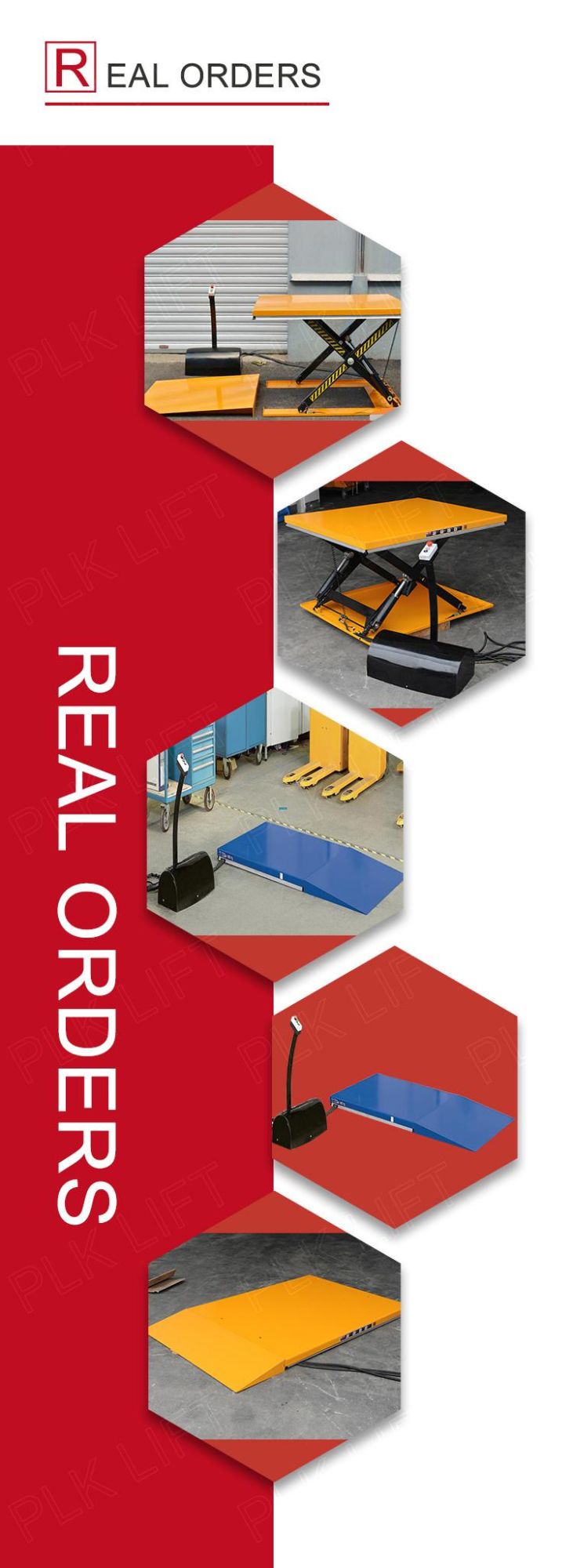

Bulk Order Show
Factory Show
