• Model NO.：JH-14
• Running Mode：Stationary
• Feature：Explosion-Proof
• Certification：GS, CE, Ma
• Standard：National Standards
• Model：Jh-14
• Winch Weight：1600
• Rotate Speed (R/Min)：730
• Power (Kw)：18.5
• Name：Hydraulic Winch
• Power Supply：7.5
• Rotate Speed：1450
• Length：1548
• Width：624
• Height Range：635
• Transport Package：Wooden Cartons Packing
• Specification：SGS, ISO, CE
• Origin：Shandong Province, China
• HS Code：8539100000
• Production Capacity：60sets,Month

Basic Info.

Model NO. JH-14 Running Mode Stationary Feature Explosion-Proof Certification GS, CE/ Ma Standard National Standards Model Jh-14 Winch Weight 1600 Rotate Speed (R/Min) 730 Power (Kw) 18.5 Name Hydraulic Winch Power Supply 7.5 Rotate Speed 1450 Length 1548 Width 624 Height Range 635 Transport Package Wooden Cartons Packing Specification SGS, ISO, CE Origin Shandong Province, China HS Code 8539100000 Production Capacity 60sets/Month

Product Description

Introduction of CE/ MA Certification Jh-14 Explosion Proof Prop Pulling Winch

JH series prop pulling hoist is mainly used for prop pulling caving under coal mine.  zmwm14
Especially applicable for thin coal seam or heavy pitch working face,and on the various coal mining
working face to recycle metal support which sink coal floor.It also could use for traction working.
This series winch bear explosion proof performance,it also could use for coal mining which has gas and coal dust.

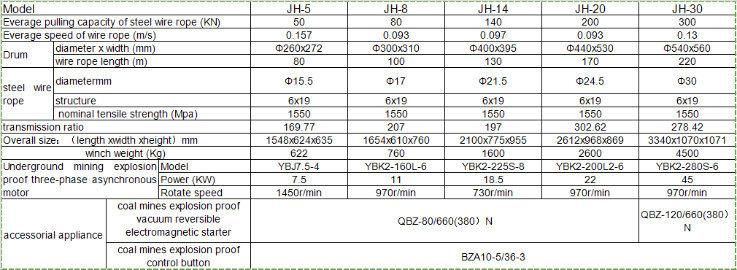

Parameter of CE/ MA Certification Jh-14 Explosion Proof Prop Pulling Winch

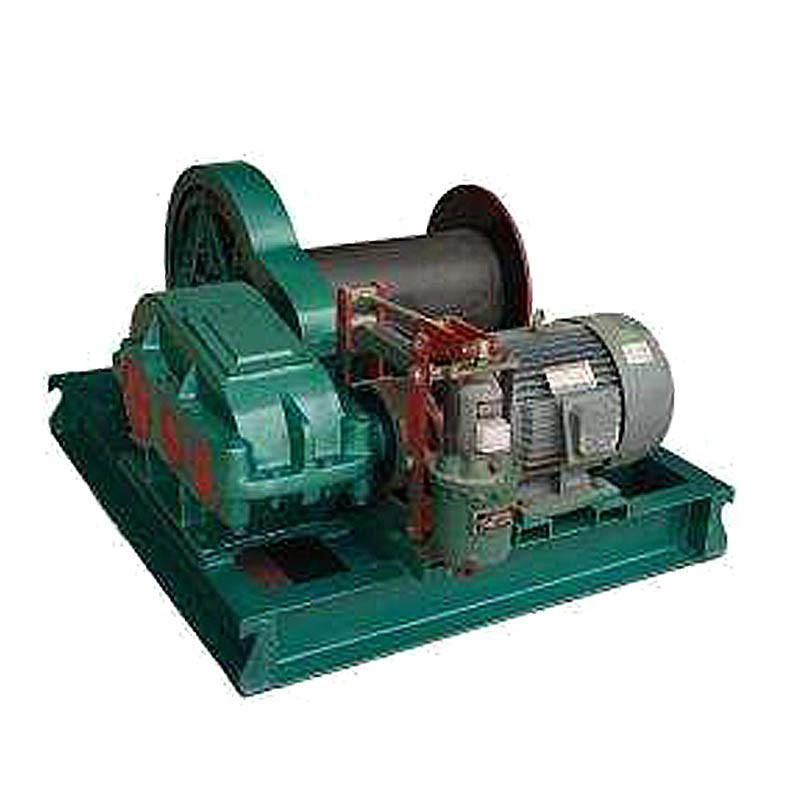

Photos of CE/ MA Certification Jh-14 Explosion Proof Prop Pulling Winch
