2.5m Hydraulic Wheelchair Disability Lifts
Jinan Morn Technology Co., Ltd.- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Lift Chain
- Carrying Capacity：Special Weight Level
- Moves：Stationary
- Driven Type：Hydraulic
- Running Mode：Stationary
Base Info
- Model NO.：LRL0.25-2.5
- Feature：Explosion-Proof, Insulating
- Certification：CE
- Rated Loading Capacity：250kg
- Max. Lifting Height：2500mm
- Table Size：1500*1100mm
- Control System：Both on The Platform and Ground
- Remote Control：Optional
- Platform：Antiskid
- Emergency Stop：Manual Emergency Stop Valve
- Lock：Yes
- Installation：on The Ground, No Pit
- Warranty：12 Months Apart From Man Made Faults
- Transport Package：Plywood Case
- Specification：CE, SGS
- Trademark：MORN
- Origin：Shandong China
- HS Code：8428909090
- Production Capacity：200 Units Per Month
Description
Turn up after lifting
3. Main feature

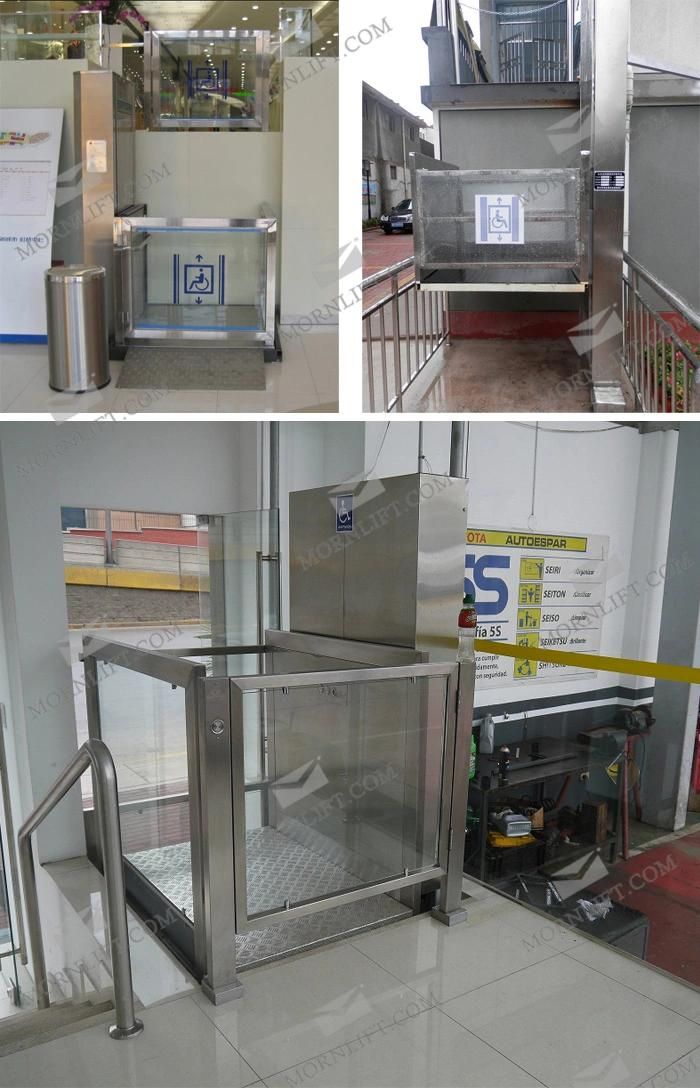

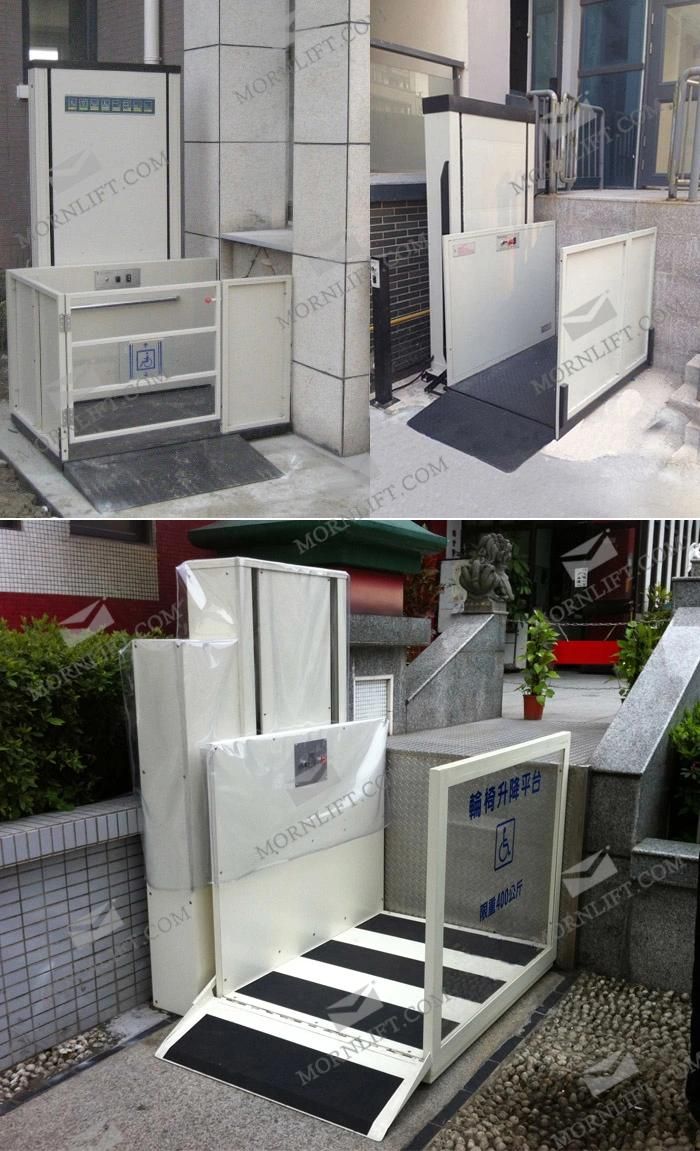

1) Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or
outdoor applications requiring vertical transportation up to 6 meters.
2) It can be directly installed into the ground without architectural supporting pits and easy to operate.
3) Its hydraulic or screw system offers passengers smooth and comfortable transportation
and different safety devices remove every hiding risk.
4) Emergency Descending:When there is no power or malfunctions, manually descend the device
5) It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
4. Some options of wheelchair lift customer design
1) Surface material: spray plastic or stainless steel
2) Access way: 180°or 90°
3) Interlock door: optional; material and quantity are also optional.
5. Warranty
1) User-friendly English manual for machine using and maintenance.
2) One year warranty for whole machine without man-made fault;
3) We will send you parts for free if there are any non-human factors problem during warranty time
4) 24-hours technical support by email, telephone or other communication online.
5) We could reply you in 2 hours after received your any questions even on weekend and holiday,
engineers are available to your country if necessary.
6. For exact quotation, please tell us:
1) Lifting height needed
2) Installation dimension you have
3) Access way needed
