• Model NO.：JK1
• Running Mode：Moving
• Feature：Antiseptic, Insulating, Explosion-Proof
• Certification：CE, ISO 9001
• Standard：National Standards
• Model：Jk1
• Line Pull Capacity (Kg)：1000
• Average Speed (M/Min)：30
• Wire Rope Dia.( Mm)：9.3
• Hydraulic Brake：Ywz-200,25
• Equipment Dimension (Mm)：945X97X60
• Weight(Kg)：460
• Capacity(M)：110
• Length：360
• Diameter(Mm)：190
• Transport Package：Carton Box, Plastic Bagsor as Your Payment
• Specification：CE, SGS
• Trademark：China Coal
• Origin：China
• HS Code：8501109901
• Production Capacity：1000 Sets Per Month

 ModelJK1JK3JK5JK8JK10Line pull capacity (kg)100030005000800010000Wire rope average speed (m/min)3030282019Wire rope Dia.( mm):9.315.521.52630Reduction boxTypeJZQ350JZQ500JZQ650JZQ650JZQ750Transmission ratio31.523.3440.1723.3423.34Drum (mm)Diameter()190325406500550Length3605208409001000Capacity(m)110200300300450motorTypeY132M-4YZR225M-8YZR250M1-8YZR250M1-6YZR250M2-6Power(kW)7.522303745Rotating speed(r/min)1440715864960960Hydraulic BrakeYWZ-200/25YWZ-200/25YWZ-300/45YWZ-300/45YWZ-400Dimension (cm)945x97x60147x140x95186x166x95240x180x110250x190x120Weight(kg)4601200270040005000

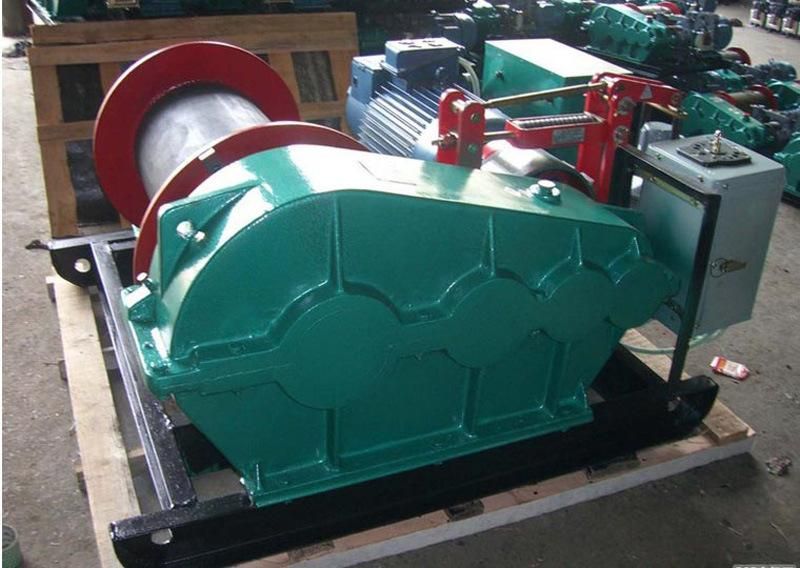

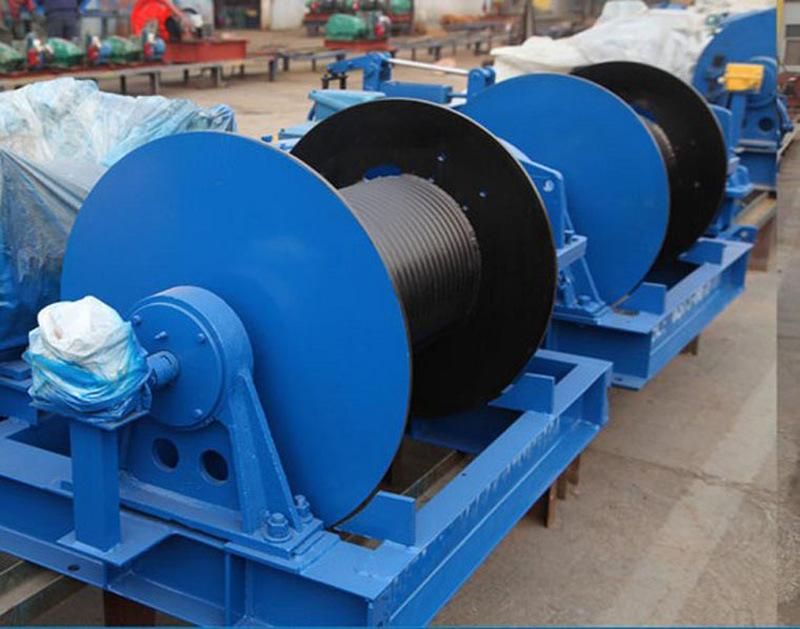

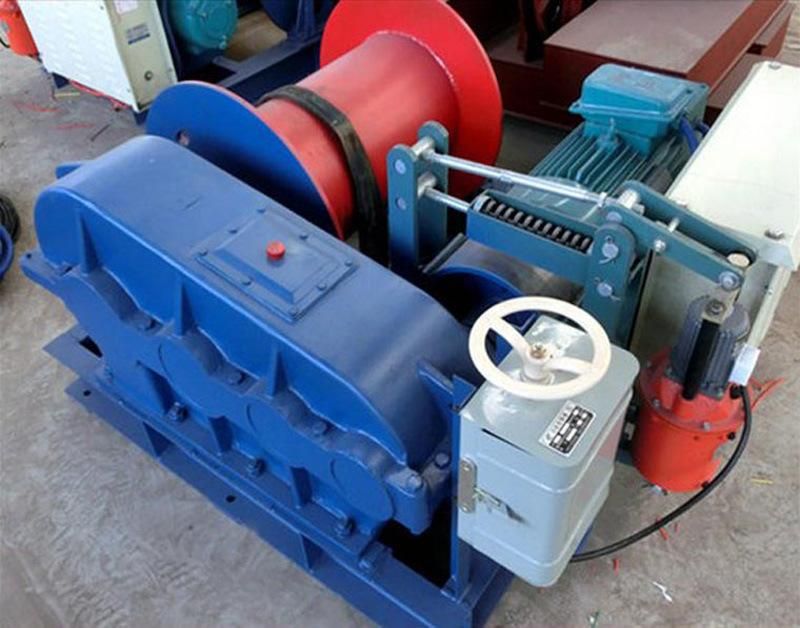

Photos of Jk Capstan Electric Truck Winch with Remote Control
