• Model NO.：DY701070
• Running Mode：Stationary
• Certification：CE, ISO 9001
• Standard：National Standards
• Driven Mode：Electric or Hydraulic Operated
• Chain Size：19mm to 50mm
• Transport Package：1sets Per Wooden Case
• Specification：CCS, BV, GL...
• Trademark：Deyuan
• Origin：China
• Production Capacity：60sets Per Month

Basic Info.

Model NO. DY701070 Running Mode Stationary Certification CE, ISO 9001 Standard National Standards Driven Mode Electric or Hydraulic Operated Chain Size 19mm to 50mm Transport Package 1sets Per Wooden Case Specification CCS, BV, GL... Trademark Deyuan Origin China Production Capacity 60sets Per Month

Product Description

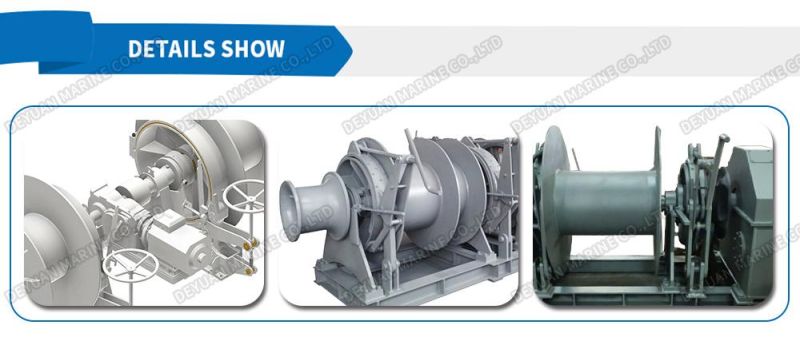

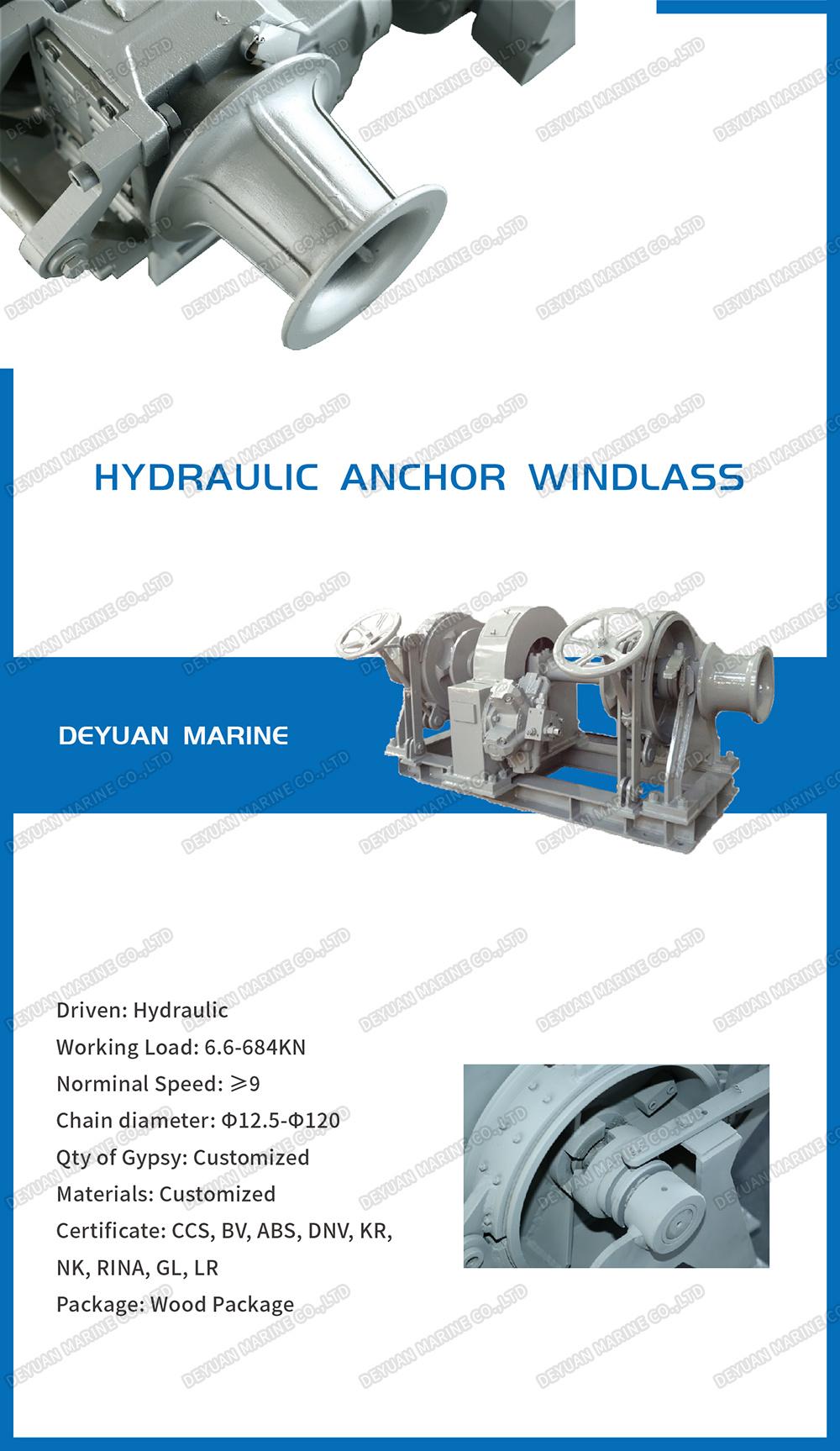

Marine Double Gypsy Anchor Windlass

Diesel anchor windlass

China Deyuan Marine Fitting Co., Ltd is a professional supplier of marine deck equipment, we can offer marine hydraulic steering gear, anchor windlass, marine mooring rope capstan, marine winches. Class certificate such as CCS, ABS, DNV, BV, RINA are available, our products are in good quality with very compectitive price. If you are interested, pls feel free to contact us at any time.

Anchor Windlass Features:
1) Drive: Electric / hydraulic
2) Configuration: Single in vertical / horizontal arrangement / double Gypsies in horizontal
3) Chain size: 19 mm to 50 mm
4) Chain speed: Complying with ISO requirements
5) Clutch: Manually operated dog clutch
6) Brake: Manually and hydraulic operated band brake

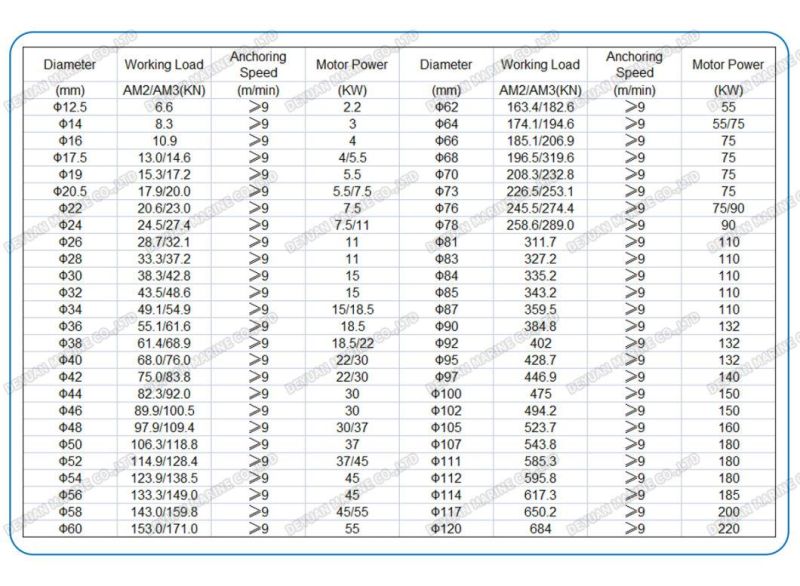

Name	Chain Dia(mm)	Working Load(KN)	Supporting load	Working  Speed (m/min)	Warping load	Warping speed	Motor power
Φ14/16/17.5 Electric anchor windlass	14/16/17.5	8.3/10.9/13	51/67/80	≥12	8	10	4.3/1.7
Φ19/20/22.5 Electric anchor windlass	19/20/22.5	15.3/17.9/20.6	95/110/126	≥12	10	10	8.5/3.5
Φ24/26 Electric anchor windlass	24/26	24.5/28.7	149/175	≥9	20	8.5	8.5
Φ26/28 Electric anchor windlass	26/28	28.7/33.3	175/202	≥9	20	8.5	11/11/7.5
Φ28/30/32 Electric anchor windlass	28/30/32	33.3/38.3/43.5	202/231/ 261	≥9	30	8.5	16/16/11
Φ32/34/36 Electric anchor windlass	32/34/36	43.5/49.1/55.1	261/294/ 329	≥9	30	8.5	16/16/11
Φ32/34/36/38 Electric anchor windlass	32/34/36/38	43.5/49.1/55.1/61.4	261/294/ 329/365	≥9	30	8.5	22/22/16
Φ38/40/42 Electric anchor windlass	38/40/42	61.4/68.0/ 75.0	365/402/442	≥9	50	8.5	22/22/16
Φ42/44/46 Electric anchor windlass	42/44/46	75.0/82.3/ 89.9	442/483/526	≥9	30	12	22/22/16
Φ44/46/48 Electric anchor windlass	44/46/48	82.3/89.9/ 97.9	483/526/ 570	≥9	30	12	30/30/22
Φ50/52/54 Electric anchor windlass	44/46/48	106.3/114.9/123.9	617/664/713	≥9	50	12	30/30/22
Φ56/58/60 Electric anchor windlass	56/58/60	133.3/143.0/153	761/816/870	≥9	50	14	45/45/30
Φ62/64 Electric anchor windlass	62/64	163.4/174.1	925/982	≥9	50	14	45/45/30
Φ66/68 Electric anchor windlass	66/68	185.1/196.5	1040/1098	≥9	50	14	45/45/30
Φ70/73 Electric anchor windlass	66/68	208.3/226.5	1160/1254	≥9	50	15	60/60/45
Φ76/78 Electric anchor windlass	66/68	245.5/258.6	1350/1416	≥9	50	15	60/60/45



If you are interested in our products or have any questions, please feel free to contact us for more details.
Deyuan Marine has been waiting for your contact.
