High Speed Remote Control Jk Capstan Winch

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
  • Type：Electric Winch
  • Driven Type：Screw
  • Speed：Slow
  • Carrying Capacity：Weight Level
  • Tonnage：20T
  • Reel Number：1

Base Info

  • Model NO.：JK
  • Running Mode：Moving
  • Feature：Antiseptic, Insulating, Explosion-Proof
  • Certification：CE
  • Standard：National Standards
  • Model：Jk1
  • Line Pull Capacity (Kg)：1000
  • Wire Rope Average Speed (M/Min)：30
  • Wire Rope(mm)：9.3
  • Hydraulic Brake：Ywz-200,25
  • Equipment Dimension (Cm)：945X97X60
  • Weight(Kg)：460
  • Capacity(M)：110
  • Condition：New
  • Keywords：Remote Control Capstan Winch
  • Transport Package：Carton Box, Plastic Bagsor as Your Payment
  • Specification：CE, SGS
  • Trademark：China Coal
  • Origin：China
  • HS Code：8533400000
  • Production Capacity：1000 Sets Per Month

Description

 ModelJK1JK3JK5JK8JK10Line pull capacity (kg)100030005000800010000Wire rope average speed (m/min)3030282019Wire rope Dia.( mm):9.315.521.52630Reduction boxTypeJZQ350JZQ500JZQ650JZQ650JZQ750 Transmission ratio31.523.3440.1723.3423.34Drum (mm)Diameter()190325406500550 Length3605208409001000Capacity(m)110200300300450motorTypeY132M-4YZR225M-8YZR250M1-8YZR250M1-6YZR250M2-6 Power(kW)7.522303745 Rotating speed(r/min)1440715864960960Hydraulic BrakeYWZ-200/25YWZ-200/25YWZ-300/45YWZ-300/45YWZ-400Dimension (cm)945x97x60147x140x95186x166x95240x180x110250x190x120Weight(kg)4601200270040005000
Photos of High Speed Remote Control Jk Capstan Winch

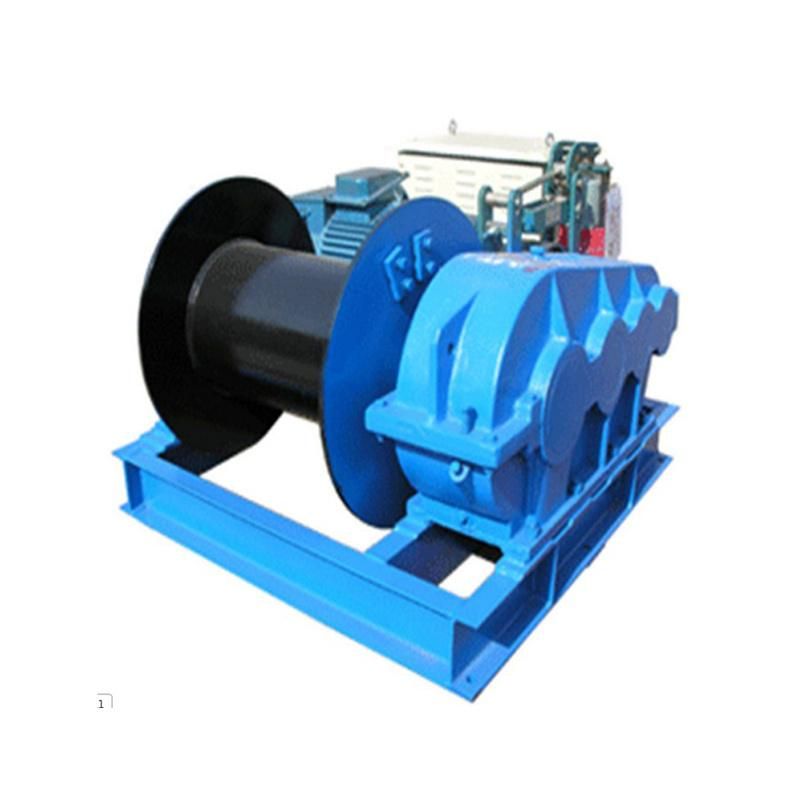

High Speed Remote Control Jk Capstan Winch

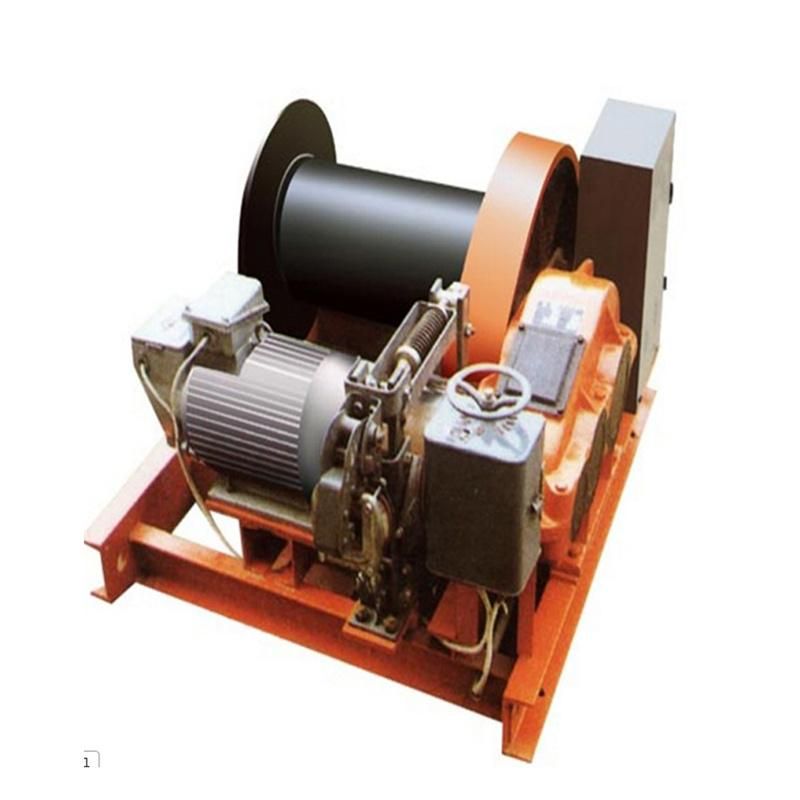

High Speed Remote Control Jk Capstan Winch

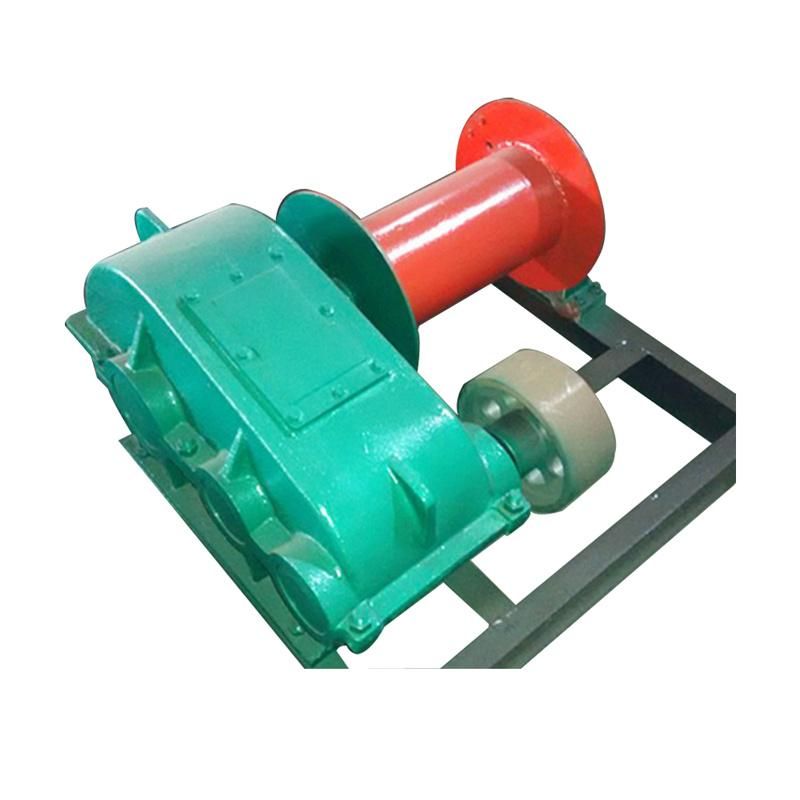

High Speed Remote Control Jk Capstan Winch
High Speed Remote Control Jk Capstan Winch
