• Model NO.：DBC-2
• Condition：New
• Max Lifting Tons：2t
• Max Working Stroke：640mm
• Using Way：Pit Use
• Transport Package：Export Plywood Case
• Specification：ISO9001
• Trademark：Haolida
• Origin：Shandong, China
• HS Code：8425429000
• Production Capacity：200sets Per Year

Basic Info.

Model NO. DBC-2 Condition New Max Lifting Tons 2t Max Working Stroke 640mm Using Way Pit Use Transport Package Export Plywood Case Specification ISO9001 Trademark Haolida Origin Shandong, China HS Code 8425429000 Production Capacity 200sets Per Year

Product Description

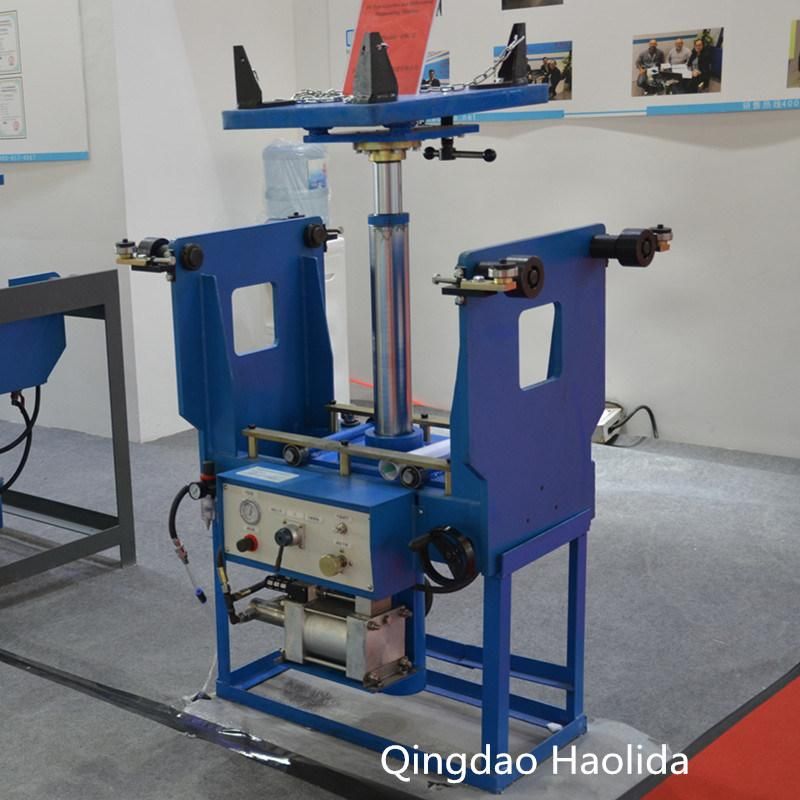

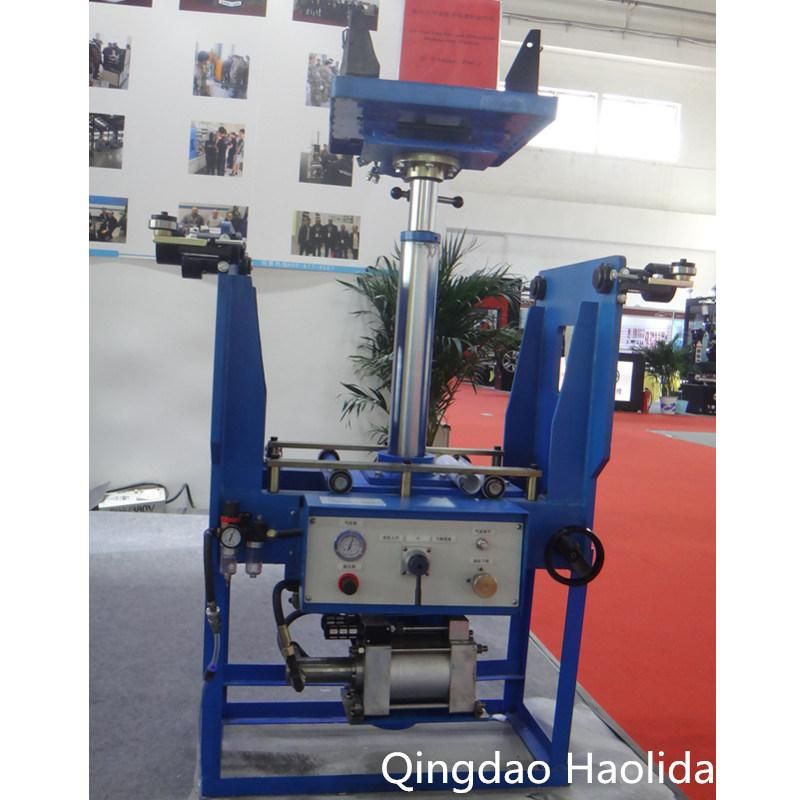

                           Automobile gearbox and differential disassembling machine

1.Function Introduction
DBC-2 Model Gearbox Trench Lifter is applicable for disassembling and installing gearbox of bus.
This equipment uses compressed air as power source and double-stage hydraulic cylinder lifting and possesses features like compact structure, multidirectional adjustment, convenient and safe operation etc.

2.Technical Parameter

• Air pressure of air source:0.8-1MP
• Maximum working stroke of oil cylinder :640mm(one stage 300mm; double-stage 340mm)

           (this is for reference, can make according to customer's request)

• Max lifting capacity: 20KN(2T)

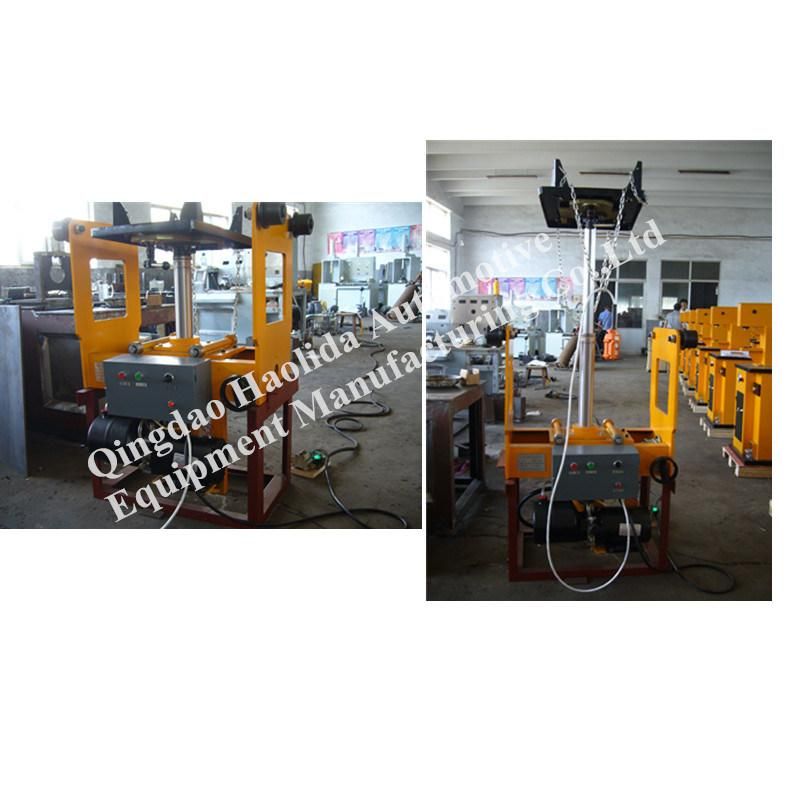

2 Kinds of gearbox trench lifter
1. pneumatic hydraulic one
2. hydraulic type, it needs electric, with oil tank and motor, motor power is 1.5KW or 2.2KW
