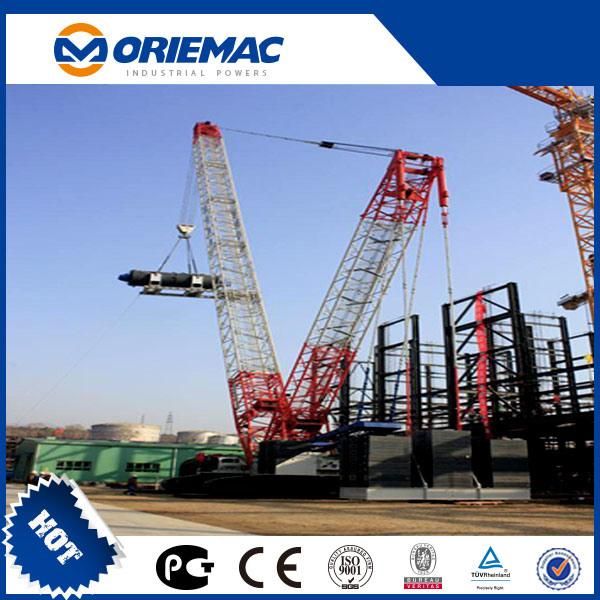

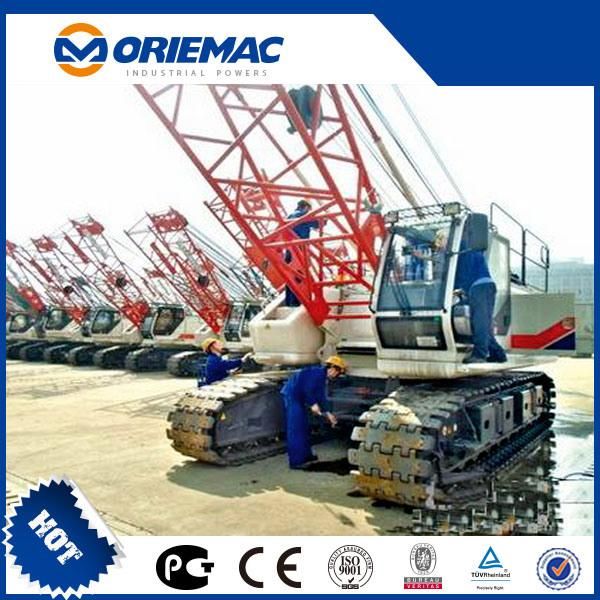

Zoomlion 100 Ton Crawler Crane Lattice Crane (QUY100)
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Max. Rated Lifting Weight:100 Ton
- Transport Package:Nude Packing
- Specification:ISO, CE, GHOST
- Trademark:Zoomlion
- Origin:Hunan, China
Base Info
- Model NO.:Quy100
- Production Capacity:5000sets,Month
Description
ItemValueRemarksMax. lifting capacity/Radius t/m100/5 Deadweight with basic boom t110 Main boom length m19~73 Fixed jib length m13~31 Max. lifting capacity of fixed jib t12 Offset angle of fixed jib°10,30 Max. length of main boom with fixed jib m55+31,55+25,61+19 Luffing jib length m24~45 Max. lifting capacity of luffing jib t24 Main boom angle under luffing jib working condition°65,75,85 Max. length of main boom with luffing jib m46+45,49+42 Max. speed of single rope on drumMain winch m/min110The 4th rope layerAuxiliary winch m/min110The 4th rope layerDerricking winch m/min45The 4th rope layerSlewing speed rpm0~2.2 Traveling speed km/h0~1.3 Gradeability%30% Ground pressure MPa0.1 Overall dimensions (L×W×H)mm9500×6000×3500Without mast and boom frameEngineRated power/ rotational speed kW/rpm209/2100 Max. output torque/ rotational speed Nm/rpm1425/1400 Emission standardU.S. EPA Tier III Crawler gauge ×ground contact length ×track shoe widthmm5200×6850×900
