• Model NO.：CD
• Certification：CE
• Condition：New
• Color：Accoding to Your Demands
• Capacity：0.5~32t
• Lifting Height：6~30m
• GB/T 19001-2000 Idt ISO 9001: 2000：Pass
• GB/T 24001-2004 Idt ISO140012004：Pass
• Main Electrical Parts：Siemens Brand or Chint Brand
• Weight Overload Limiter：Include
• Traveling Limited Switch：Include
• Emergency Stop System：Include
• Transport Package：High Quality Plywood Crate
• Specification：No. 1 assembly in China
• Trademark：Kuangyuan
• Origin：China
• HS Code：84251100
• Production Capacity：18000sets,Year

Basic Info.

Model NO. CD Certification CE Condition New Color Accoding to Your Demands Capacity 0.5~32t Lifting Height 6~30m GB/T 19001-2000 Idt ISO 9001: 2000 Pass GB/T 24001-2004 Idt ISO140012004 Pass Main Electrical Parts Siemens Brand or Chint Brand Weight Overload Limiter Include Traveling Limited Switch Include Emergency Stop System Include Transport Package High Quality Plywood Crate Specification No. 1 assembly in China Trademark Kuangyuan Origin China HS Code 84251100 Production Capacity 18000sets/Year

Product Description

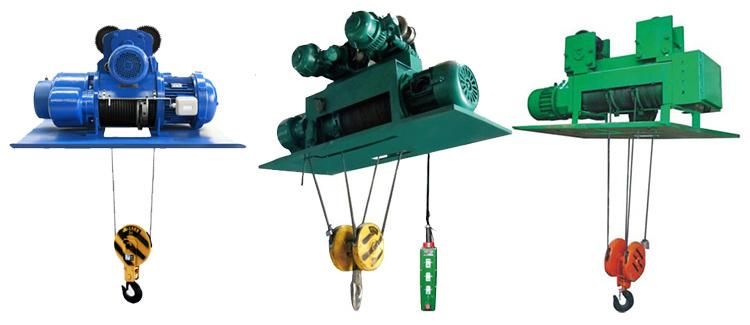

Monorail Wire Rope Electric Hoist 0.5~32t

Monorail wire rope electric hoist is the most popular hoisting equipment, because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance. The hoist can also work by fixing to a section of I-beam. It is a light duty designed for general work such as warehouse, workshop, mining, etc. There are two common models: CD1 model lifts with single speed, and MD1 model not only with usual speed but also with low speed.

The capacity is available by 0.5t, 1t, 2t, 3t, 5t, 10t, 16t, 20t, 32t. The lift height is available by 3m, 6m, 9m, 12m, 18m, 24m, 36m up to 100m.

Applicable scope and working conditions
The product applies to such an environment as no faire, no explosive danger, no corrosive media and no dirt exist. And the temperature is between 20° C below zero and 40° C up zero, the wetness is no higher than 85%, the applicable power source is under your requirements.

Features:
1. High durability
2. Low maintenance cost
3. Hassle free operation
4. Easy handling
5. Long working life
Safety and efficiency down to the last detail
1. Low-vibration, quiet-running motor
2. Fast acting brake
3. Gearbox lubricated for life
4. Protective rope guide
5. Frequency inverter for stepless travel motions
6. Precision geared limit switch
7. Overload protection
8. User-friendly bottom
9. Ergonomically optimized controls
10. Extended applications

Main Components
Motor: Hoist Motor is a taper type rotor motor with braking; It is one of the best quality motors, which has bigger torque, so it can be adapted to moving frequently, the Maximum torque is 2.4-3 times than the rated torque.
Rope Guide: Rope Guide is in two halves, ensuring easy accessibility. It encircles the drum completely so that the rope may not uncoil even when the Hoist is in unloaded condition. The rope guides of our company is thicken and dilated, so that it is not easy to be damaged.
Hook: The Hook is tested to 150 % of full load before assembly.
 FAQ

1. Capacity
2. Lifting height
3. Lifting speed and running speed requirement.
4. Power supply
5. Any other special requirement you need,like I beam type

Note:
1. We only manufacture the high quality hoist
2. Different power supply available
3. Color variety
4. OEM
